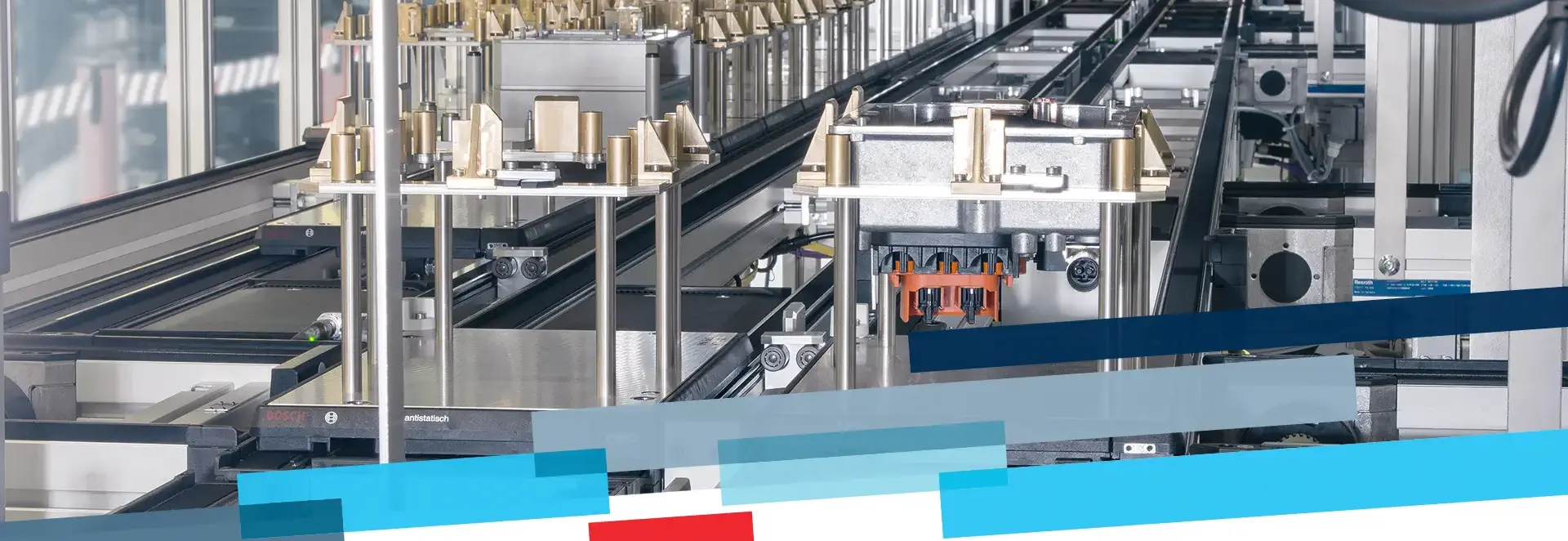

BOOST YOUR PRODUCTION with the TS 2plus transfer system.
The Rexroth transfer system is designed for transport of workpiece pallets up to 240 kg. It features standardized modular units that can be combined in many ways to create a single system. The modular design permits the cost-effective use of ratio potentials in production. All components are designed to be particularly robust and ensure high operational safety. The systems 3-phase motors additionally enable an effective energy use thanks to efficiency class IE3.

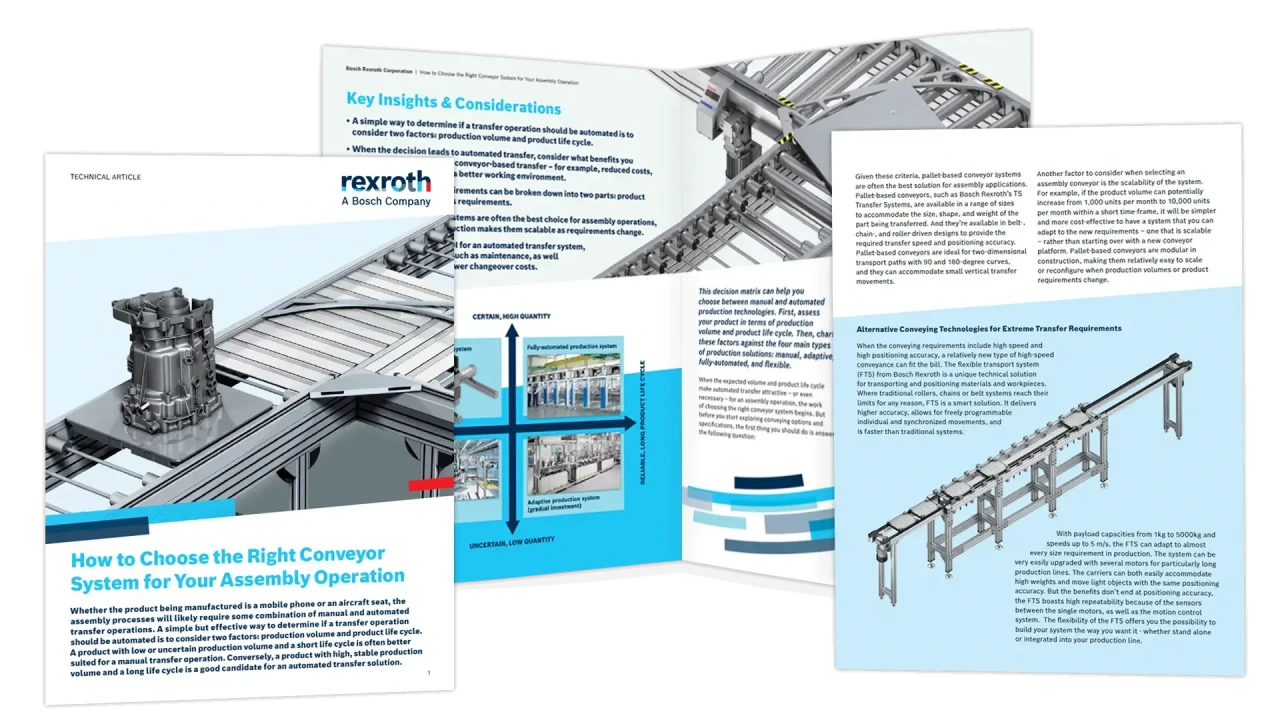

How to Choose the Right Conveyor System for Your Assembly Operation
Whether the product being manufactured is a mobile phone or an aircraft seat, the assembly processes will likely require some combination of manual and automated transfer operations. Read the article for some expert insights on choosing the right conveyor for the job!
Versatile
The versatile modular system with standardized units meets the requirements for production of a wide range of different products of a variety of sectors, such as:
- Automotive industry
- Electronics and electrical technology with ESD-requirements
- Medical technology and
- Optical industry
- Sanitary
Robust
TS 2plus is reliable even under difficult conditions, such as in ESD environments or in clean room and dry room applications. It manages a high maximum load of up to 240 kg per workpiece pallet.?Additionally the market-proven components ensure a high availability.
Adaptable
The all-rounder for cost-effective production can be installed quickly thanks to it's modularity. The workpiece pallet dimensions tailored to the product size and range from 160 x 160 to 1,200 x 1,200 mm. Four types of conveyor media are combinable as needed: Polyamide belt, toothed belt, flat top chain and accumulation roller chain. This allows the system solution to be scaled quickly for any requirement and to realize of a vast array of system layouts.
TS 2plus Application Examples

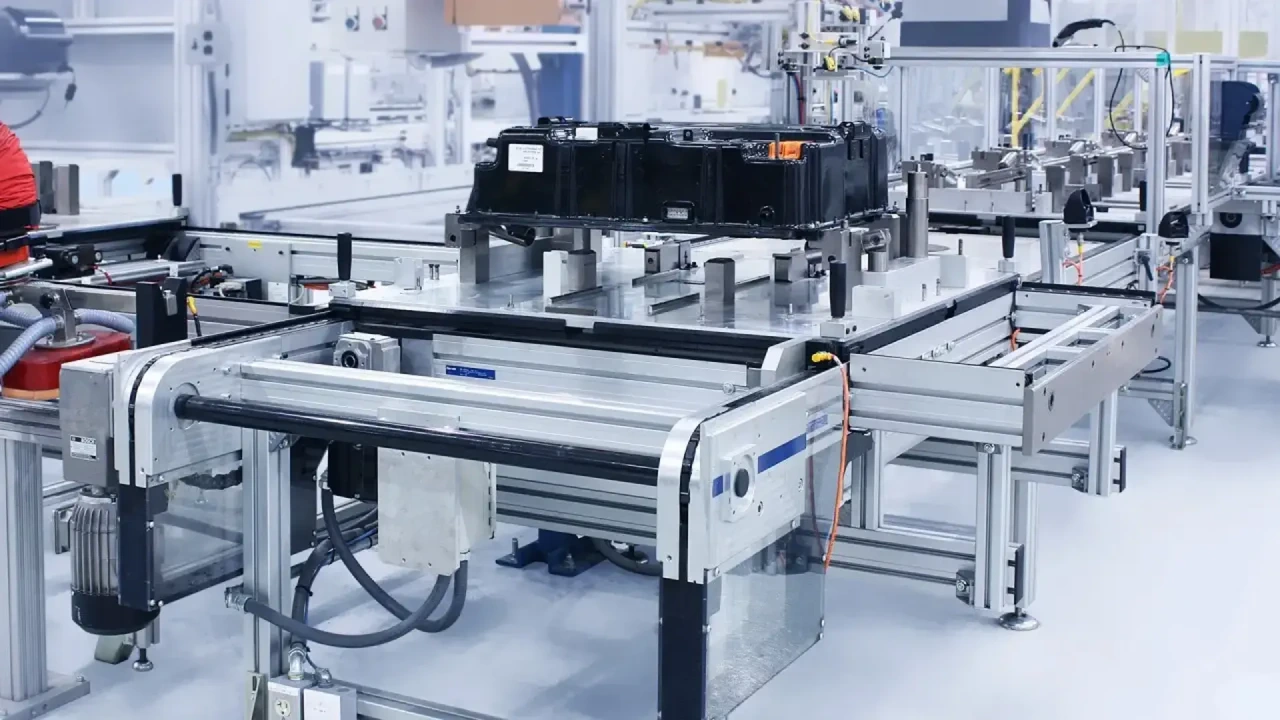

Battery pack assembly in the automotive industry

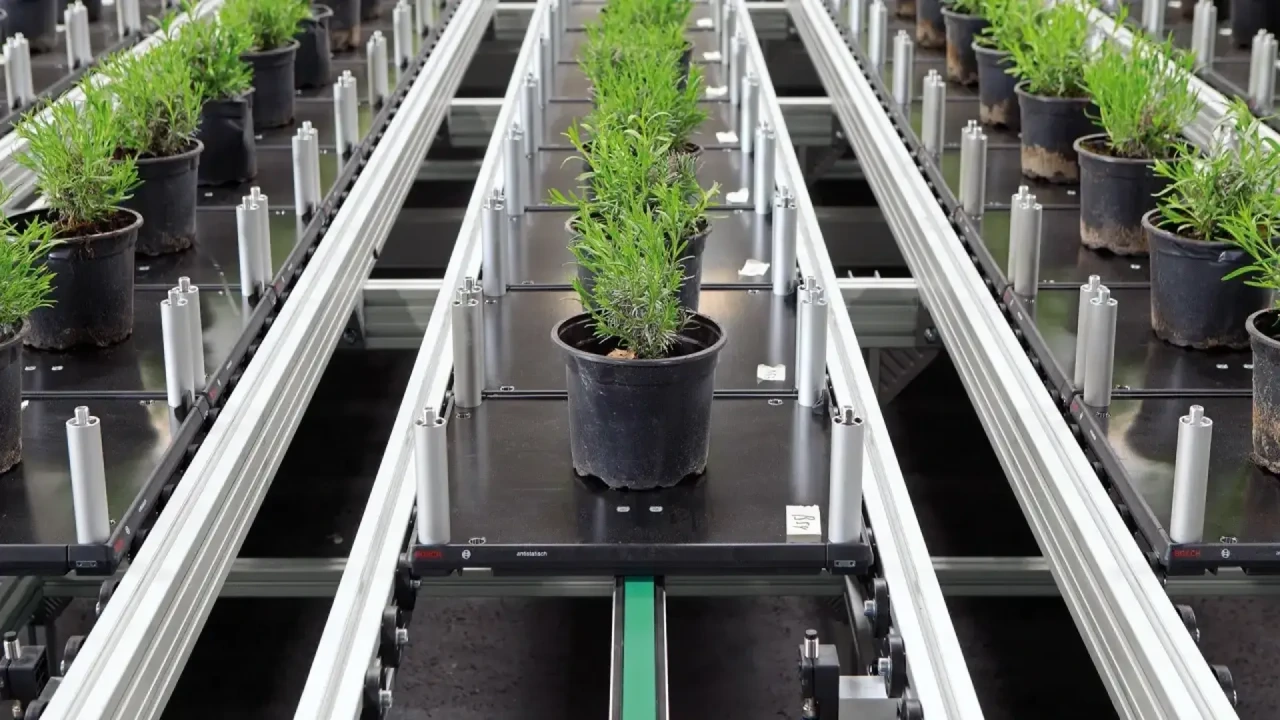

Energy-efficient plant conveyor system
Flexible assembly line.

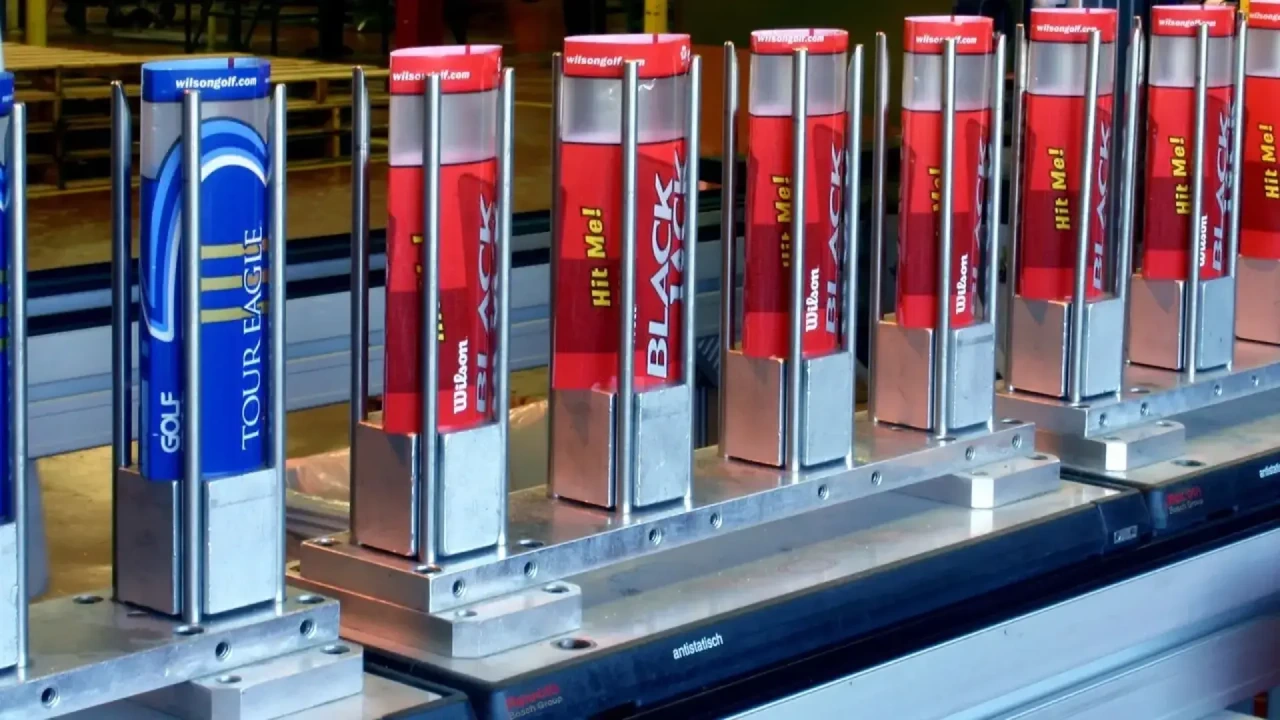

Transport of golf ball packaging
| Mass of workpiece pallet: |
Up to 240 kg |
| Size of workpiece pallet: | 160 x 160 mm to 1,200 x 1,200 mm |
| Workpiece pallet types: | Carrying plate made of steel or aluminum, alternatively open frame made of aluminum profiles |
| Conveyor media: | Belt, toothed belt, flat top chain, accumulation roller chain, Vplus chain |
| Conveyor speed: | 6/9/12/15/18 m/min |
| Section load: | Up to 200 kg/m in accumulation |
Transfer system project planning free of charge
Make the most of the MTpro planning software. Nearly all of our technology products are stored in this tool. Design your individual transfer system quickly via drag & drop functionality.
MTpro planning software
Design your transfer systems from the initial idea to the implementation in one tool.
Simulation with Visual Components
Test a design via simulation and make tweaks before the process gets too far along.
