Attributes

Clean room classification	ISO class 7
Curve direction [KR]	R = rechts,L = links
Delivery information	Partially assembled
Dry room	<lt/>1
ESD	Yes
Length [L1 max]	150mm
Length [L1 min]	5000mm
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Preferred values	80120160
Recommended accessories	Accumulation pressure regulation,Leg sets SZ 1/...
Scope of delivery	Curve module complete with drive
Section load in accumulation operation	30kg
Weight	0kg

• Belt distance a = 135 mm
• Integrated shared drive for both turntables and the mounted belt sections. Section load up to 24 kg
• Section load up to 30 kg when a second drive is used (AE = 2)
• Conveyor medium: Turntable, suitable for use in an EPA
• Length of the belt sections freely selectable, l_max = 5000 mm
• Curve direction right (KR = R) or left (KR = L)
• Motor mounting external (MA = A)
• 1 - Belt distance a = 135 mm
• 2 - Integrated shared drive for both turntables and the mounted belt sections. Section load up to 24 kg
• 3 - Section load up to 30 kg when a second drive is used (AE = 2)
• 4 - Conveyor medium: Turntable, suitable for use in an EPA
• 5 - Length of the belt sections freely selectable, l_max = 5000 mm
• 6 - Curve direction right (KR = R) or left (KR = L)
• 7 - Motor mounting external (MA = A)

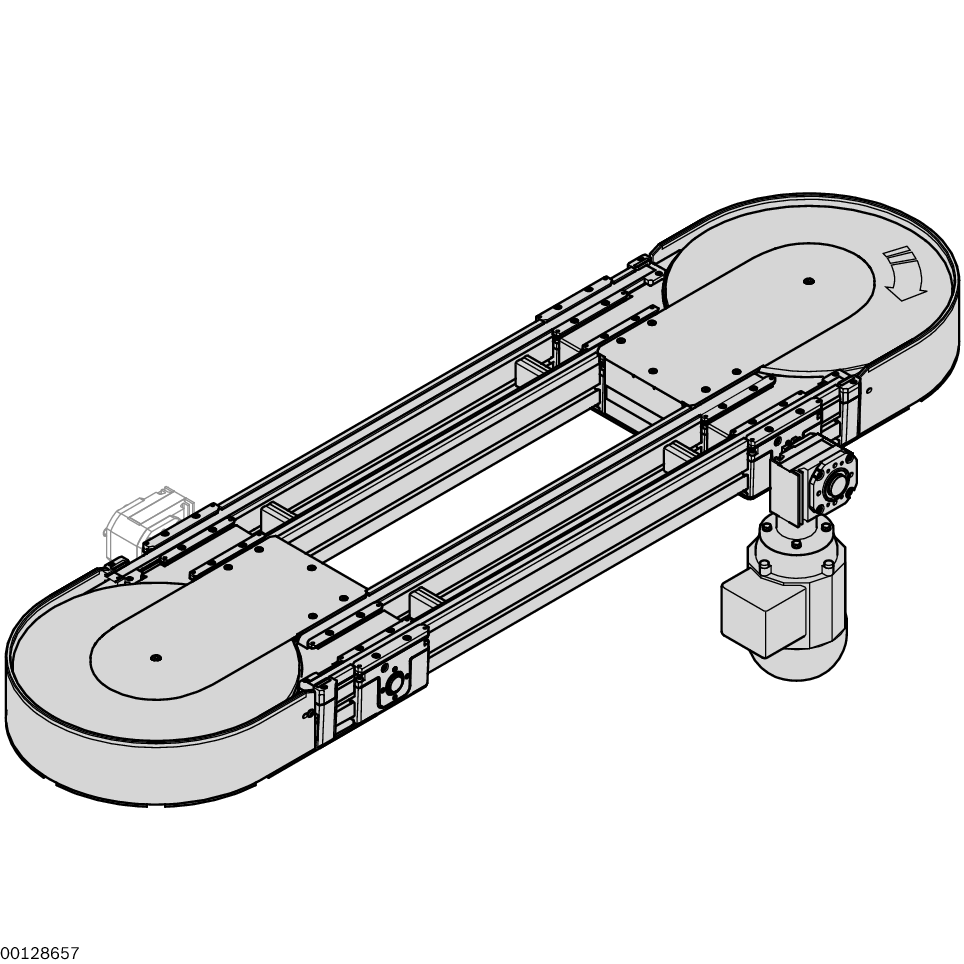

Curve KU 1/360
Curve direction right (KR = R) or left (KR = L), Conveyor medium: Turntable, suitable for use in an EPA, Belt distance a = 135 mm, Motor mounting external (MA = A), Integrated shared drive for both turntables and the mounted belt sections. Section load up

• 3D CAD
• Data Sheet

Recommended accessories

Accumulation pressure regulation

Leg sets SZ 1/...

Connection Kit KU 1, accumulation pressure control

Connection Kit KU 1, accumulation pressure control

Modules of the TS1 are connected with each other on the front side via a connection kit

CAD data

Leg Sets

Leg Sets

Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sections

Assembly instructions

CAD data

Curve KU 1/360

b	f	g
(mm)	(mm)	(mm)
80	165	422
120	203	505
160	243	580

L1
mm
150 ... 5000

With the curve KU 1/360, a closed workpiece pallet circuit can be built up at a particularly low price with just one drive.

Due to its accumulation capability, the KU 1/360 can be operated with no elaborate controls.

It is also suitable for use in ESD applications.

Reversible operation is not possible. During downtime (e.g. end of shift), there must be no WTs on the curve.



Energy efficiency – Rexroth 4EE

No.			3842999988
Max. section load in accumulation operation		kg	30
ESD			yes
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
