CURVE KU 1/180
| Clean room classification | ISO class 7 |
| Curve direction [KR] | R = rechts,L = links |
| Delivery information | Partially assembled |
| Dry room | <lt/>1 |
| ESD | Yes |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min |
| Recommended accessories | Accumulation pressure regulation,Connection kit for mounting on BS 1,Connection kit for mounting on AS 1 or UM 1,Leg sets SZ 1/... |
| Scope of delivery | Curve module complete with drive,Infeed section (with L1 <gt/> 150 mm),Outfeed section (with L2 <gt/> 150 mm) |
| Section load in accumulation operation | 30kg |
| Track width in direction of transport [b] | 80120160 |
| Weight | 0kg |
- Belt distance a = 135 mm
- Integrated shared drive for the turntable and the mounted belt sections in the infeed and outfeed section
- Section load up to 30 kg
- Conveyor medium: Turntable, suitable for use in an EPA
- Length of the infeed and outfeed section freely selectable, lmax = 5000 mm
- Curve direction right (KR = R) or left (KR = L)
- Motor mounting external (MA = A)
- 1 - Belt distance a = 135 mm
- 2 - Integrated shared drive for the turntable and the mounted belt sections in the infeed and outfeed section
- 3 - Section load up to 30 kg
- 4 - Conveyor medium: Turntable, suitable for use in an EPA
- 5 - Length of the infeed and outfeed section freely selectable, lmax = 5000 mm
- 6 - Curve direction right (KR = R) or left (KR = L)
- 7 - Motor mounting external (MA = A)

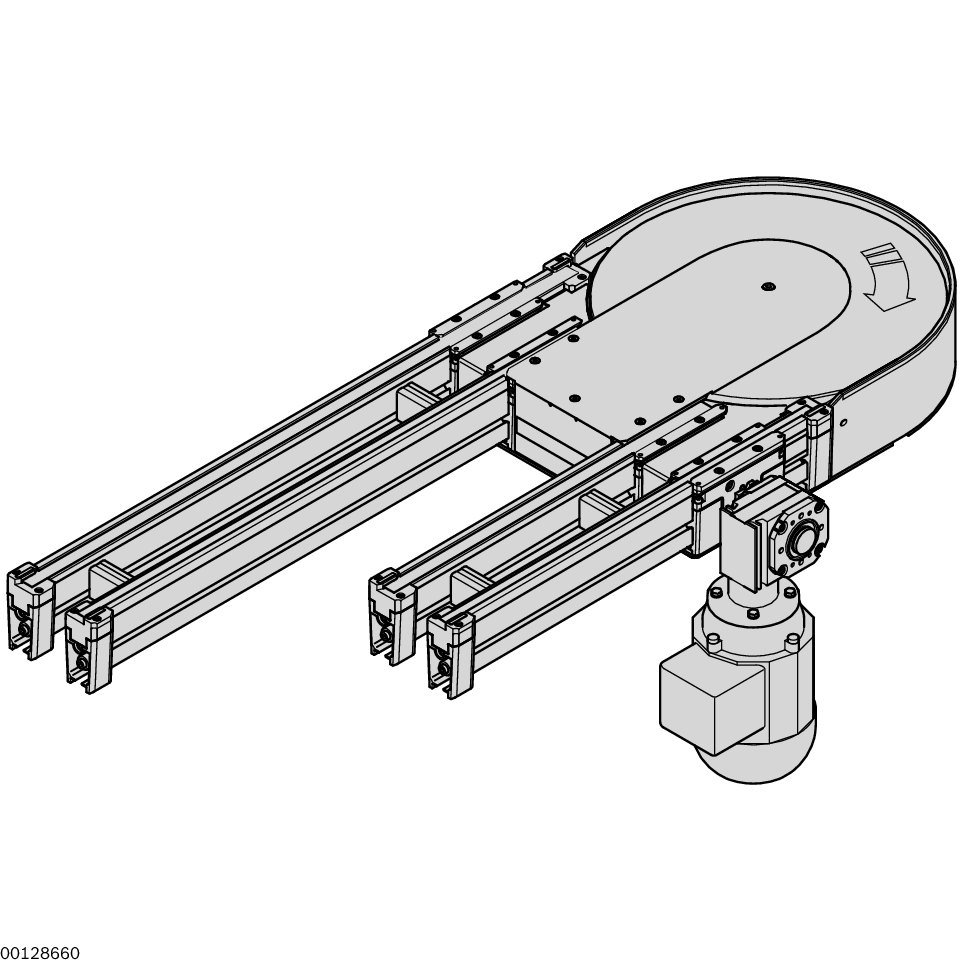

Curve KU 1/180 with built-in drive for 180° curve conveying of a workpiece pallet. Due to its accumulation capability, the KU 1/180 can be operated without any need for elaborate controls. It is also suitable for use in ESD applications. Reversible operation is not possible. At the end of operation (e.g. end of shift), all WTs must have left the curve.
Section load up to 30 kg, Curve direction right (KR = R) or left (KR = L), Integrated shared drive for the turntable and the mounted belt sections in the infeed and outfeed section, Conveyor medium: Turntable, suitable for use in an EPA, Length of the inf
Recommended accessories
| Accumulation pressure regulation |
| Connection kit for mounting on BS 1 |
| Connection kit for mounting on AS 1 or UM 1 |
| Leg sets SZ 1/... |
Connection Kit KU 1, accumulation pressure control
Connection Kit KU 1, accumulation pressure control
Modules of the TS1 are connected with each other on the front side via a connection kitCAD data
Connection Kit, Stop Rail
Connection Kit, Stop Rail
Assembly instructions
CAD data
Leg Sets
Leg Sets
Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sectionsAssembly instructions
CAD data
|
b |
f |
g |
|
(mm) |
(mm) |
(mm) |
|
80 |
165 |
422 |
|
120 |
203 |
505 |
|
160 |
243 |
580 |
Curve KU 1/180 with suitable drive for 180° curve transport of a workpiece pallet.
Due to its accumulation capability, the KU 1/180 can be operated with no elaborate controls.
It is also suitable for use in ESD applications.
Reversible operation is not possible. During downtime (e.g. end of shift), there must be no WTs on the curve.
Energy efficiency – Rexroth 4EE
|
No. |
3842999987 | ||
|
Max. section load in accumulation operation |
kg |
30 | |
|
ESD |
yes | ||
|
Cleanroom class |
ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 |
