Attributes
| Clean room classification |
ISO class 7 |
| Delivery information |
Assembled. Motor included separately. |
| Dry room |
<lt/>1 |
| ESD |
Yes |
| Length [L1] |
120...4800 mm für b <lt/> 90 mm,90...4800 mm für b ≥ 90 mm |
| Length [l] |
300...5000 mm for b ≥ 90 mm |
| Length max [l max] |
5000mm |
| Length min [L min] |
350mm |
| Nominal speed [vN] |
0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min |
| Preferred values |
80,120,160 |
| Recommended accessories |
Connection kit,Leg set SZ 1 |
| Section load in accumulation operation |
30kg |
| Track width in direction of transport [b max] |
720mm |
| Track width in direction of transport [b min] |
80mm |
| Weight |
0kg |
- Position of the drive freely selectable
- Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
- Section loads up to 30 kg in accumulation operation
- Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
- Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- Special models on request
- - Position of the drive freely selectable
- - Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
- - Section loads up to 30 kg in accumulation operation
- - Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
- - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- - Special models on request

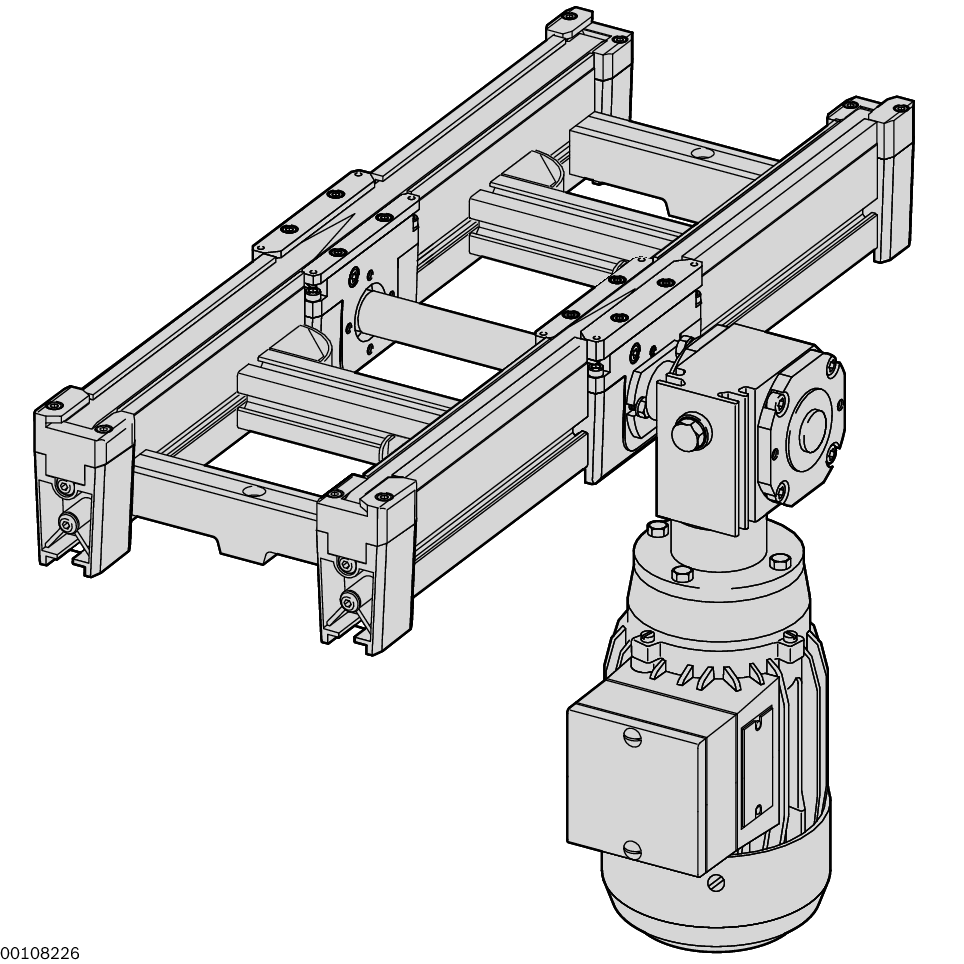

Belt section for longitudinal conveying of workpiece pallets with central motor mounting.
Longitudinal conveying of workpiece pallet on conveyor sections of up to 5000 mm. The central motor mounting allows close assembly of components to the section end.
Position of the drive freely selectable, Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M), Section loads up to 30 kg in accumulation operation, Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA, Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K), Special models on request
When using the belt section as a transverse conveyor between two main sections, a connection kit must be ordered separately.
Optional accessories:
Connection kit Leg set SZ 1
Assembly instructions
CAD data
Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sections
Assembly instructions
CAD data
Condition on delivery:
Assembled. Motor included separately.
Belt Section BS 1/M
Longitudinal conveying of the workpiece pallet on segmented conveyor sections of up to 5000 mm
The drive is installed in the center of the belt section, so that positioning units or lift transverse units can be mounted closer to the end of the section, for example.
Energy efficiency – Rexroth 4EE
|
No.
|
|
|
3842999900
|
|
Max. section load in accumulation operation
|
|
kg
|
30
|
|
ESD
|
|
|
yes
|
|
Cleanroom class
|
|
|
ISO class 7
|
|
Dry room
|
r.F.
|
%
|
<1
|
|
Reversible operation
|
|
|
permitted
|
