BELT SECTION BS 1/T
| Clean room classification | ISO class 7 |
| Delivery information | Assembled. Motor included separately. |
| Dry room | <lt/>1 |
| ESD | Yes |
| Length max [l max] | 5000mm |
| Length min [L min] | 320mm |
| Motor connection [AT] | S = Kabel/Stecker,K = Klemmenkasten |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min |
| Preferred values | 80120160 |
| Recommended accessories | Connection kit,Leg set SZ 1 |
| Reversible operation [RV] | zulässig |
| Section load in accumulation operation | 30kg |
| Track width in direction of transport [b max] | 720mm |
| Track width in direction of transport [b min] | 80mm |
| Weight | 0kg |
- Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
- Section loads up to 30 kg in accumulation operation
- Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
- On the return unit, a curve KE 1/O-90 or KE 1/O-180 can be driven via an attachment kit (attachment kit included in the KE 1/O scope of delivery)
- Depending on the length, the BS 1/T is delivered with two, three or four cross connectors
- Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- Longitudinal transport of the workpiece pallet with segmented conveyor sections of up to 5000 mm
- Drive of curves KE 1/O-90 or KE 1/O-180 possible via the return unit side
- Special models on request
- 1 - Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
- 2 - Section loads up to 30 kg in accumulation operation
- 3 - Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
- 4 - On the return unit, a curve KE 1/O-90 or KE 1/O-180 can be driven via an attachment kit (attachment kit included in the KE 1/O scope of delivery)
- 5 - Depending on the length, the BS 1/T is delivered with two, three or four cross connectors
- 6 - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- 7 - Longitudinal transport of the workpiece pallet with segmented conveyor sections of up to 5000 mm
- 8 - Drive of curves KE 1/O-90 or KE 1/O-180 possible via the return unit side
- 9 - Special models on request

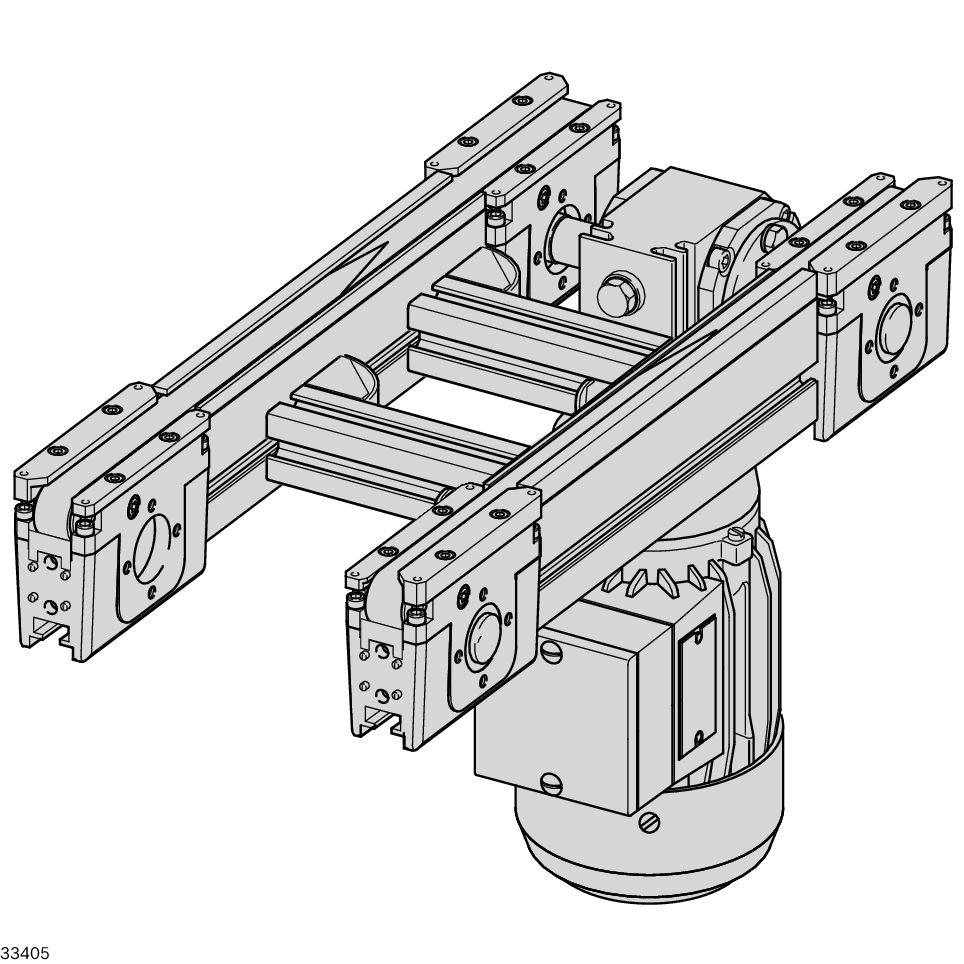

Belt Section BS 1/T
Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M), Section loads up to 30 kg in accumulation operation, Conveyor medium: Toothed belt with mesh top, suitabl
Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M), Section loads up to 30 kg in accumulation operation, Conveyor medium: Toothed belt with mesh top, suitabl
Connection Kit, Stop Rail
Connection Kit, Stop Rail
Assembly instructions
CAD data
Leg Sets
Leg Sets
Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sectionsAssembly instructions
CAD data
Belt Section BS 1/T
|
No. |
3842999899 | ||
|
Max. section load in accumulation operation |
kg |
30 | |
|
ESD |
yes | ||
|
Cleanroom class |
ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 |
|
Reversible operation |
permitted |
