Attributes

Clean room classification	ISO class 7
Conveyor medium	Belt
Delivery information	Not assembled
ESD	Yes
Length max [L max]	6000mm
Length min [L min]	200mm
Material information	Section profile: Aluminum, anodized,Guide profile: Plastic PE-UHMW (anti-static)
Recommended accessories	Leg sets SZ 1,Profile connector for the end-to-end connecting of two section profiles SP 1. Required for ls <gt/> 6000 mm.
Required accessories	Cross connector QV 1 for track width definition
Scope of delivery	2x section profile SP 1,2x guide profile GP 1
Weight	0kg

• Section profile SP 1 as a supporting element
• Guide profile GP 1 for guiding the belt GT 1; can be replaced easily in case of wear.
• Maximum length L_max = 6000 mm
• 1 - Section profile SP 1 as a supporting element
• 2 - Guide profile GP 1 for guiding the belt GT 1; can be replaced easily in case of wear.
• 3 - Maximum length L_max = 6000 mm

Section ST 1

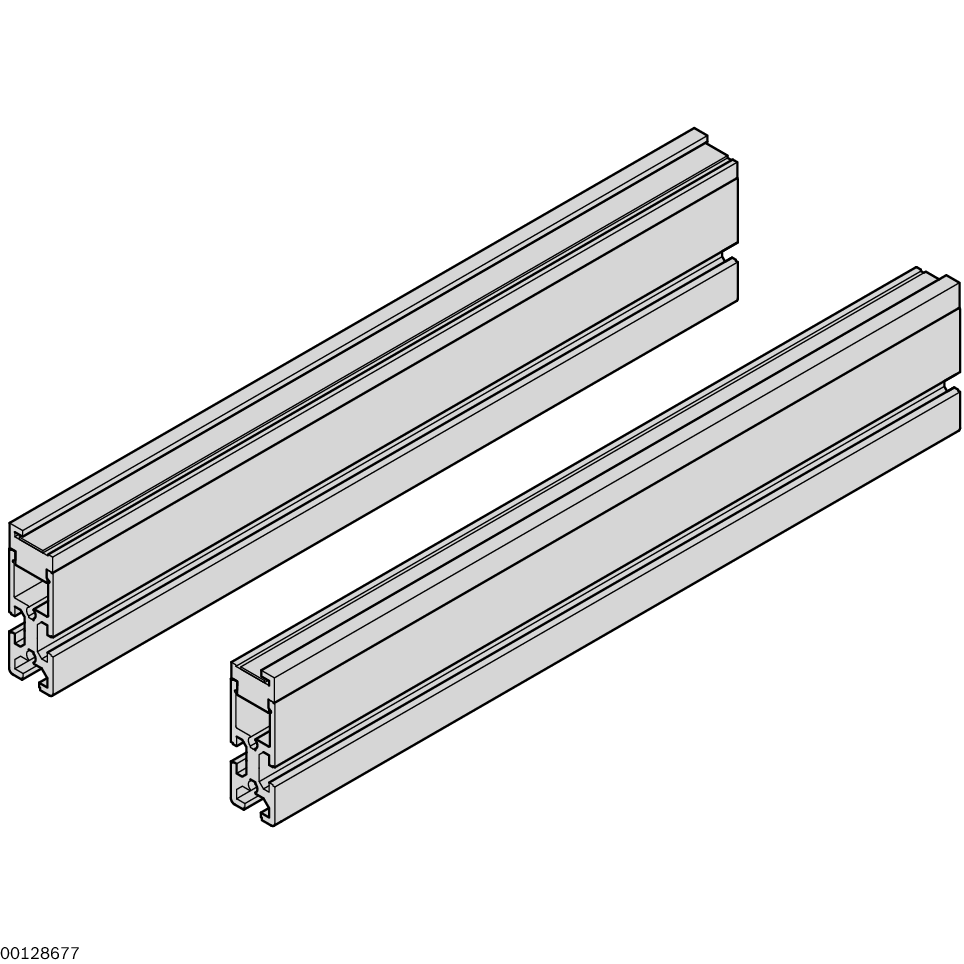

Section profile SP 1 as a supporting element, Guide profile GP 1 for guiding the belt GT 1; can be replaced easily in case of wear., Maximum length L_max = 6000 mm

• 3D CAD
• Data Sheet

Optional accessories:

Leg sets SZ 1 Profile connector for the end-to-end connecting of two section profiles SP 1. Required for ls > 6000 mm.

Required accessories:

Cross connector QV 1 for the track width definition

Connectors

Connectors

Profile connector Cross connector QV 1

CAD data

Leg Sets

Leg Sets

Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sections

Assembly instructions

CAD data

Condition on delivery:

Not assembled

Scope of delivery:

2x section profile SP 1 2x guide profile GP 1

Section ST 1

Structure of conveyor units in conjunction with drive module AS 1 and return unit UM 1

No.			3842999779
ESD			yes
Cleanroom class			ISO class 7
Material entry			Section profile: aluminum, anodized Guide profile: Plastic PE-UHMW (anti-static)
Length	l	mm	200 … 6,000
