Attributes

Clean room classification	ISO class 7
Curve direction [KR]	R = rechts,L = links
Delivery information	Fully assembled with all parts required for the drive by BS 1/T or UM 1.
Dry room	<lt/>1
ESD	Yes
Preferred values	80120160
Recommended accessories	Additional drive kits (recommended for WT 1/… b ≥ 120 mm for external gravity center position)
Scope of delivery	Curve KE 2/O-180,Fastening material according to the installation situation AO
Section load in accumulation operation	3kg
Weight	0kg

• Available for belt distances a = 60 mm or a = 135 mm
• The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit.
• Conveyor medium: Round belt (suitable for use in an EPA)
• Using additional drive kits improves the transport of the workpiece pallets WT 1/P at the start and end of the curve.
• Curve direction right (KR = R) or left (KR = L)
• The installation location AO describes the installation situation on the curve infeed and outfeed.
• 1 - Available for belt distances a = 60 mm or a = 135 mm
• 2 - The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit.
• 3 - Conveyor medium: Round belt (suitable for use in an EPA)
• 4 - Using additional drive kits improves the transport of the workpiece pallets WT 1/P at the start and end of the curve.
• 5 - Curve direction right (KR = R) or left (KR = L)
• 6 - The installation location AO describes the installation situation on the curve infeed and outfeed.

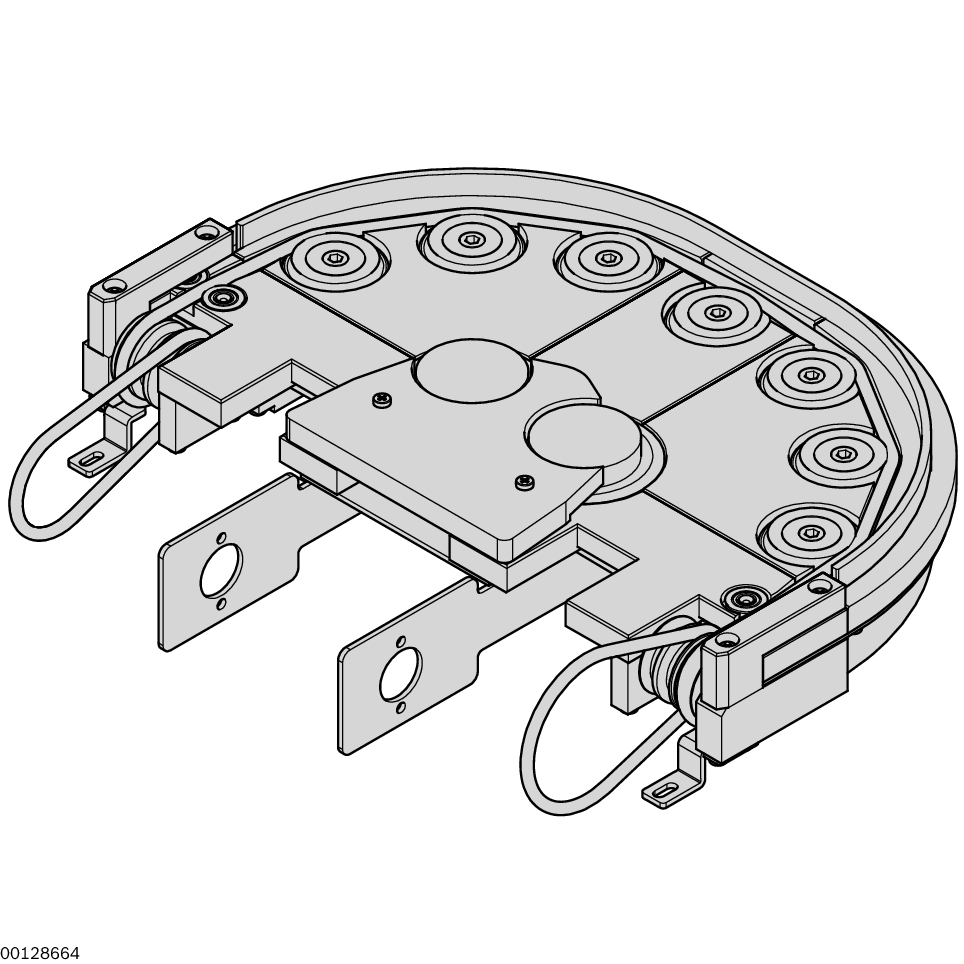

Curve KE 1/O-180
Curve direction right (KR = R) or left (KR = L), The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit., Using additional drive kits improves the transport of the workpiece pallets WT 1/P a

• 3D CAD
• Data Sheet

Curve KE 1/O-180 without its own drive for 180° curve transport of a workpiece pallet.

Separation should be used to ensure that no accumulation occurs on the curve and on the overdrive belts.

Reversible operation is not possible.

No.			3842999765	3842537618	3842537619
Max. section load in accumulation operation		kg	3
ESD			yes
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
