Attributes

Clean room classification	ISO class 7
Delivery information	Pre-installed; gear motor enclosed separately
ESD	Yes
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Preferred values	80120160
Scope of delivery	Drive Module AS 1,Fastening elements for mounting on the section ST 1
Section load in accumulation operation	80kg
Weight	0kg

• For section loads up to F_G = 80 kg per section unit in accumulation operation
• Motor mounting optionally hanging down at the bottom or horizontal, right or left external
• Special models on request
• 1 - For section loads up to F_G = 80 kg per section unit in accumulation operation
• 2 - Motor mounting optionally hanging down at the bottom or horizontal, right or left external
• 3 - Special models on request

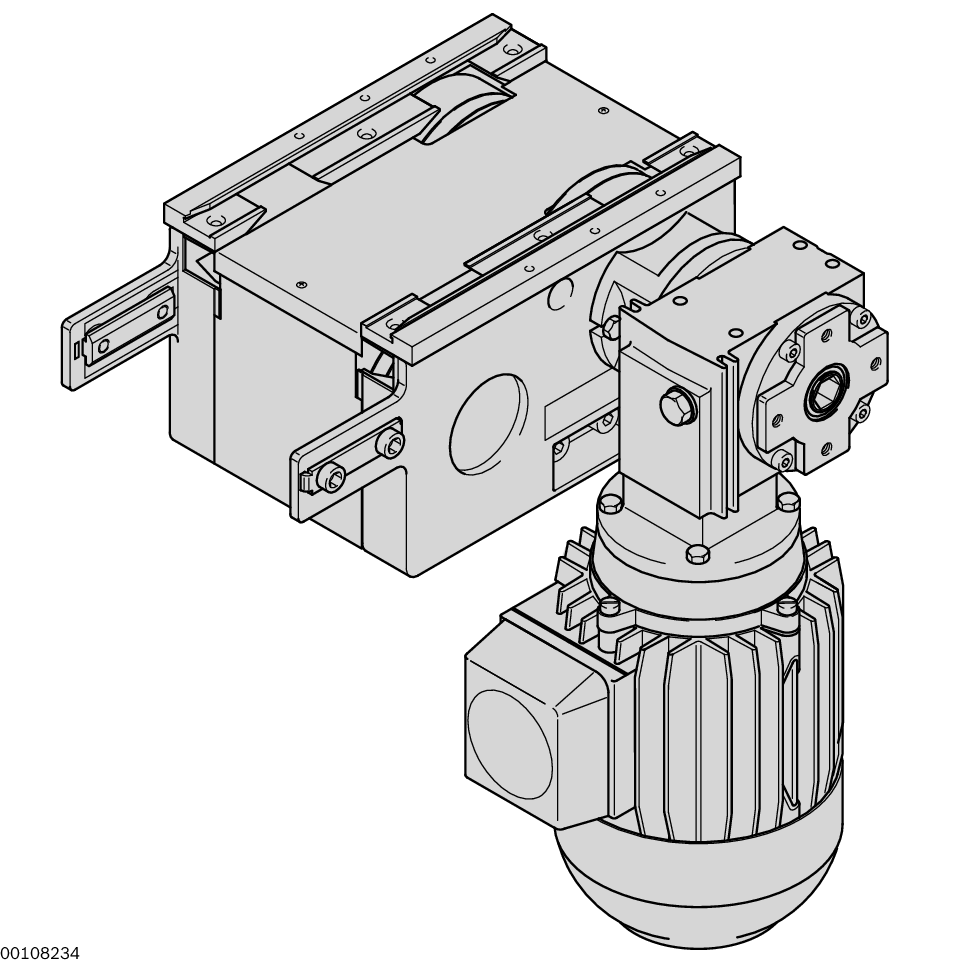

Drive Module AS 1
Special models on request, For section loads up to F_G = 80 kg per section unit in accumulation operation, Motor mounting optionally hanging down at the bottom or horizontal, right or left external

• 3D CAD
• Data Sheet

Optional accessories:

Longitudinal end connector for connecting two conveyor units

Section Joint

Section Joint

Accessories kit for end-face connection of two conveyor units or belt sections

CAD data

Condition on delivery:

Pre-installed; gear motor enclosed separately.

Drive Module AS 1

Drive of the belt when setting up conveyor units with section ST 1, return unit UM 1 and belt GT 1. Maximum section length ls max = 12000 mm.

Energy efficiency – Rexroth 4EE

No.			3842999759
Max. section load in accumulation operation		kg	80
ESD			yes
Cleanroom class			ISO class 7
Reversible operation			permitted
