Attributes

Clean room classification	ISO class 7
Condition on delivery	Assembled
Conveyor medium	Toothed belt (suitable for use in an EPA)
Dry room	<lt/>1
ESD	yes
Length max [l max]	6000mm
Length min [L min]	240mm
Material information	Section profile: Aluminum, natural; anodized,Guide profile: Polyamide,Glide profile: Polyamide
Motor connection [AT]	S = Kabel/Stecker,K = Klemmenkasten
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Notice	l is rounded in accordance with the toothed belt pitch,When MA = M and b = 160 mm, the max. section load is only 30 kg,Individual width variants can be ordered
Preferred values	1.6024032040048E+28
Recommended accessories	Connection kit,Section supports SZ 2/...
Section load in accumulation operation	60kg
Track width in direction of transport [b max]	1200mm
Track width in direction of transport [b min]	160mm
Weight	0kg

• The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
• Ready for operation conveyor section with own drive
• Accumulation operation possible
• Conveyor medium: Toothed belt (suitable for use in an EPA)
• Reversible operation possible
• The drive side can be attached to the input of KE 2/O (not as cam drive)
• When mounted at the output of a curve, BS 2 can also serve as a cam drive. The required connection kit and drive set is included in the scope of delivery of the curve
• Suitable for mounting between KE 2 and linear section LS 2
• BS 2 is suitable and recommended for workpiece pallets WT 2 and WT 2/LS in the longitudinal conveyor
• BS 2/LS is particularly suitable and recommended for workpiece pallets WT 2/LS in the transverse conveyor, e.g. for removal in an HQ 2
• Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
• Motor mounting right, left or central
• Motor connection: optionally with cable/plug or terminal box motor connection
• Special models on request
• Positioning of WTs in the area of the drive heads/return heads is not permitted.
• 1 - The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
• 2 - Ready for operation conveyor section with own drive
• 3 - Accumulation operation possible
• 4 - Conveyor medium: Toothed belt (suitable for use in an EPA)
• 5 - Reversible operation possible
• 6 - The drive side can be attached to the input of KE 2/O (not as cam drive)
• 7 - When mounted at the output of a curve, BS 2 can also serve as a cam drive. The required connection kit and drive set is included in the scope of delivery of the curve
• 8 - Suitable for mounting between KE 2 and linear section LS 2
• 9 - BS 2 is suitable and recommended for workpiece pallets WT 2 and WT 2/LS in the longitudinal conveyor
• 10 - BS 2/LS is particularly suitable and recommended for workpiece pallets WT 2/LS in the transverse conveyor, e.g. for removal in an HQ 2
• 11 - Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
• 12 - Motor mounting right, left or central
• 13 - Motor connection: optionally with cable/plug or terminal box motor connection
• 14 - Special models on request
• 15 - Positioning of WTs in the area of the drive heads/return heads is not permitted.

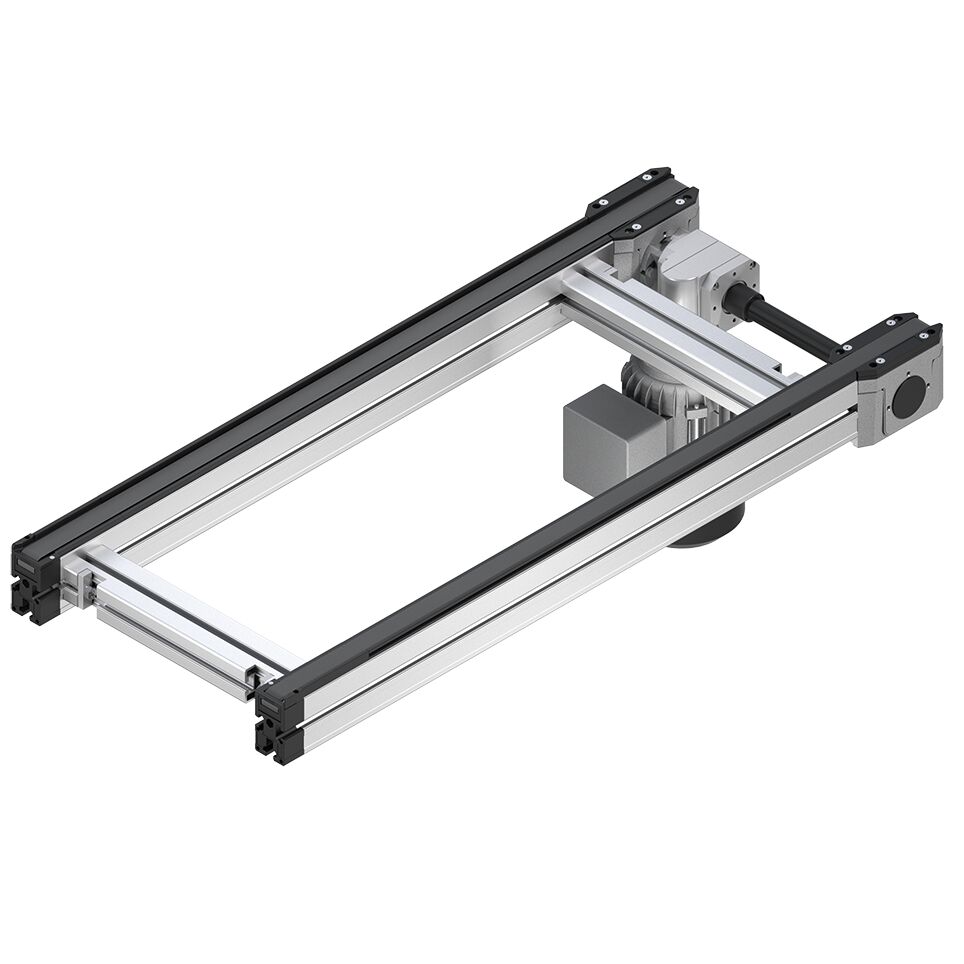

Belt Section BS 2
Ready for operation conveyor section with own drive
Special models on request, The belt section is a ready to use conveyor section with built in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor

• 3D CAD
• Data Sheet

Leg Sets

Leg Sets

Connection Kits for Longitudinal Conveyors

Connection Kits for Longitudinal Conveyors

For connecting the modules of the TS 2plus on a longitudinal conveyor at the ends (end-to-end)

CAD data

Condition of Delivery

Fully assembled

Belt Section BS 2

Energy efficiency – Rexroth 4EE

No.			3842999716
Max. section load in accumulation operation 1)		kg	60
ESD			yes
Material entry			Section profile: Aluminum, natural; anodized Guide profile: Polyamide Slide profile: Polyamide
Length 2)	l	mm	240 ... 6000

1)	When MA = M and b = 160 mm, the max. permissible section load is only 30 kg
2)	l is rounded in accordance with the toothed belt pitch

Motor connection

Transport and nominal speed vN

Motor data
