Attributes
| Length [L1 max] |
180mm |
| Length [L1 min] |
1000mm |
| Length max [LH max] |
5310mm |
| Length min [LH min] |
L1+50 |
| Packaging unit |
1 |
| Profile slot |
10 |
| Weight |
0kg |
- Fully assembled cam roller guide
- Stroke and trolley length can be individually selected
- Rail profile screwed onto strut profile 90x90L
- Incl. toothed belt drive
- - Fully assembled cam roller guide
- - Stroke and trolley length can be individually selected
- - Rail profile screwed onto strut profile 90x90L
- - Incl. toothed belt drive

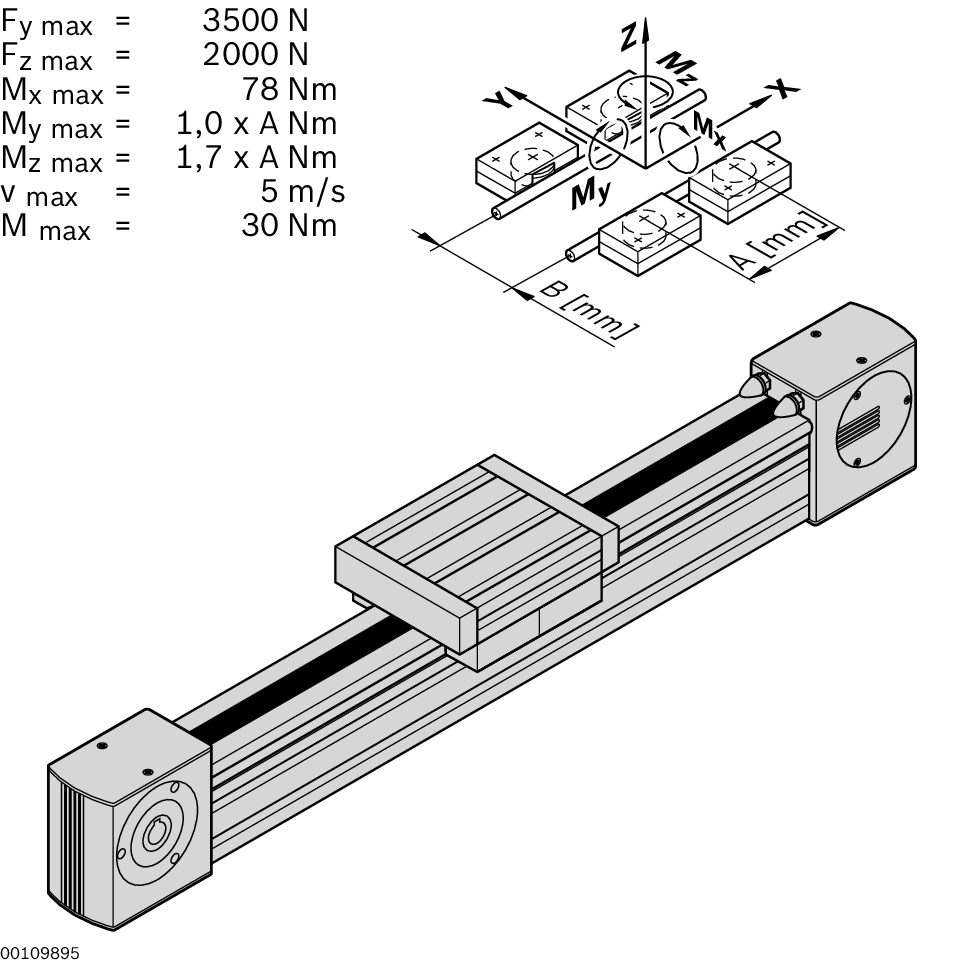

Complete axis LF12S
Fully assembled cam roller guide, Stroke and trolley length can be individually selected, Rail profile screwed onto strut profile 90x90L, Incl. toothed belt drive
