Attributes

Clean room classification	ISO class 7
Curve direction [KR]	R = rechts,L = links
Delivery information	Partially assembled,Motor mounting MA = L with KR = R; MA = R with KR = L
Dry room	<lt/>1
ESD	Yes
Length in direction of transport [lT]	80120160
Length max [L max]	5000mm
Length min [L min]	415mm
Motor connection [AT]	S = Kabel/Stecker,K = Klemmenkasten
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe,6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Preferred values	80120160
Recommended accessories	Leg sets SZ 1/...
Scope of delivery	Belt section with third track,Inner guide,Outer guide,Fastening material,Connection kit
Section load in accumulation operation	30kg
Weight	0kg

• The drive takes place via the belt section. No additional drive is required for the curve function.
• Section load up to 30 kg
• Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
• Curve direction right (KR = R) or left (KR = L)
• Motor mounting right (MA=R) with KR=L or motor mounting left (MA=L) with KR=R
• Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
• Special models on request
• 1 - The drive takes place via the belt section. No additional drive is required for the curve function.
• 2 - Section load up to 30 kg
• 3 - Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
• 4 - Curve direction right (KR = R) or left (KR = L)
• 5 - Motor mounting right (MA=R) with KR=L or motor mounting left (MA=L) with KR=R
• 6 - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
• 7 - Special models on request

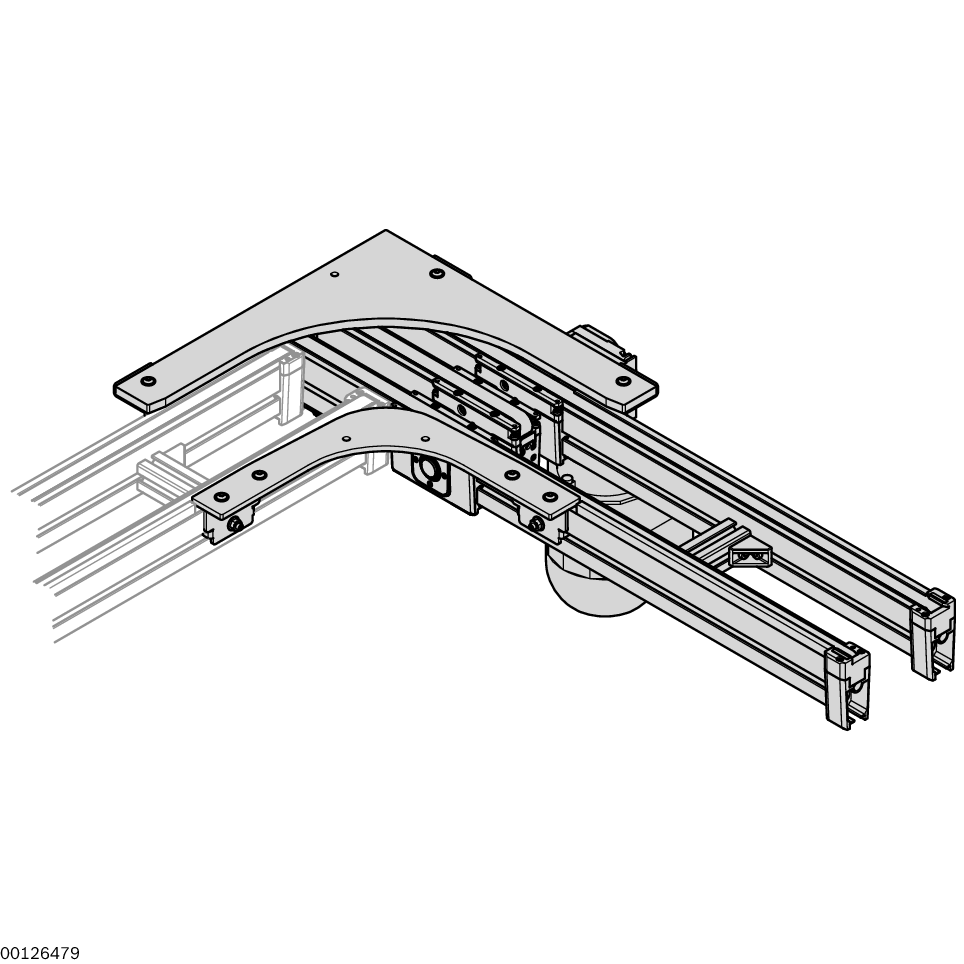

Curve CU 1/90
Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA, Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K), Special models on request, The drive takes place via the belt section. No additional drive is required

• 3D CAD
• Data Sheet

Leg Sets

Leg Sets

Extruded aluminum profile Height-adjustable bases Suitable for conveyor sections and belt sections

Assembly instructions

CAD data

Curve CU 1/90

bWT x lWT	L	L1	L2
(mm)	(mm)	(mm)	(mm)
80 x 80	415	144	318
120 x 120	455	184	358
160 x 160	495	224	396

Curve CU 1/90 for 90° curve transport of a workpiece pallet. Manages with no additional drive for the curve function. Accumulation possible up to max. 3 workpiece pallets.

Suitable for use in ESD applications.

Damping elements on the workpiece pallet may only be mounted at the side and rear in direction of transport.

Reversible operation is not possible.

Energy efficiency – Rexroth 4EE

No.			3842998287
Max. section load in accumulation operation		kg	30
ESD			yes
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
Length	l	mm	415 … 5,000

b x l1)	L
(mm)	(mm)
80 x 80	415 ... 5000
120 x 120	455 ... 5000
160 x 160	495 ... 5000

1)	b = track width in direction of transport l = length in direction of transport
