3842996320

Material #3842996320

Delivery information	Not assembled,Fully assembled
ESD	Yes
Kit [MT]	0 = unmontiert,1 = montiert
Material information	Profile: Aluminum,Bracket: Diecast aluminum,Leveling foot: Steel; galvanized
Notice	Transportation height H = leg set height hSZ + installation location AO (section profile height)
Recommended accessories	Cover Caps for Bracket
Required accessories	Foundation bracket,Floor dowel
Scope of delivery	Including height-adjustable bases,Incl. all fastening material to mount on conveyor section, drive module or return unit
Track width in direction of transport [b max]	1200mm
Track width in direction of transport [b min]	160mm
Transportation height [H]	ST 2/B-50: 350 … 2000,Lift Gate: 355 ... 2000,ST 2/B: 375 … 2000,ST 2/B-100: 395 … 2000
Weight	0kg

The leg sets support one belt section or one conveyor unit

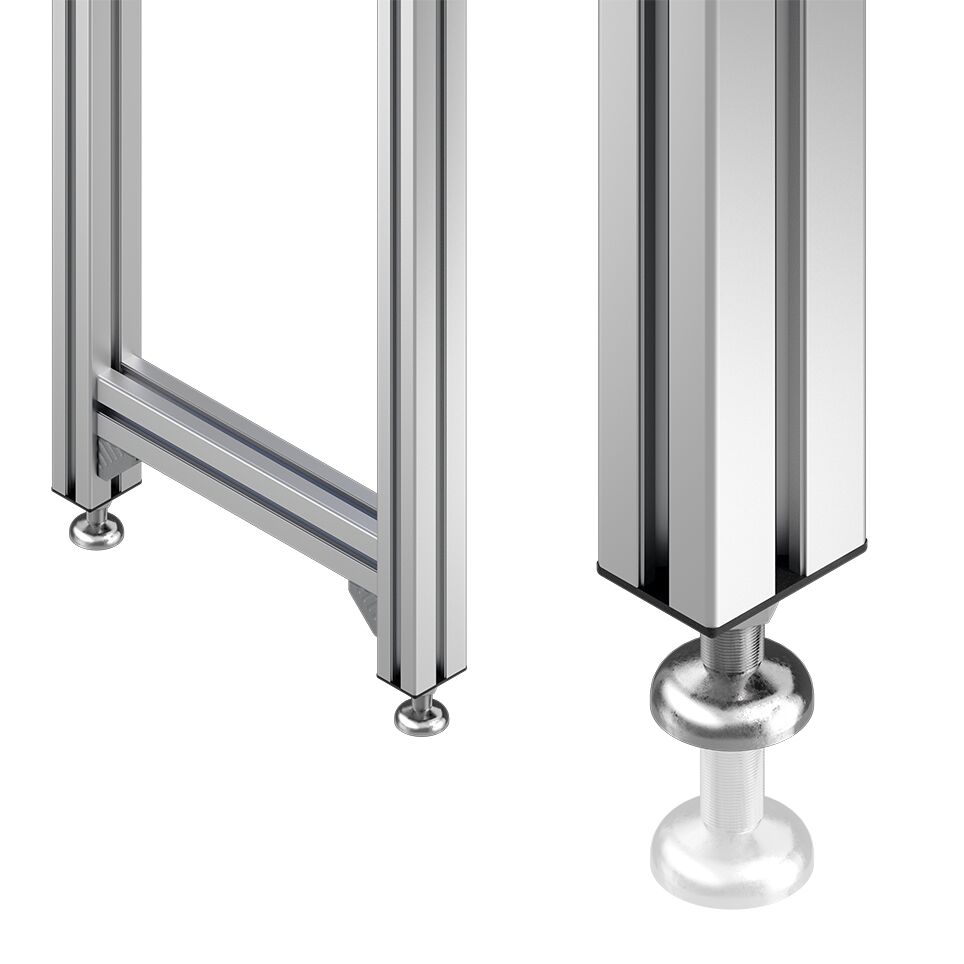

Leg set for single-track conveyor sections on one conveying level.
Standard version
Installation location AO = 55: SP 2/B-50
Installation location AO = 60: Lift gate
Installation location AO = 80: ST 2/B; SP 2/BH; BS 2; BS 2/M
Installation location AO = 100: ST 2/B-100; ST 2/C-100; ST 2/R-100; ST 2/C-H; ST 2/R-H; ST 2/R-V; BS 2/C; BS 2/C-H; BS 2/R; BS 2/R-H; BS 2/R-V; CS/C
1 - The leg sets support one belt section or one conveyor unit
2 - Leg set for single-track conveyor sections on one conveying level.
3 - Standard version
4 - Installation location AO = 55: SP 2/B-50
5 - Installation location AO = 60: Lift gate
6 - Installation location AO = 80: ST 2/B; SP 2/BH; BS 2; BS 2/M
7 - Installation location AO = 100: ST 2/B-100; ST 2/C-100; ST 2/R-100; ST 2/C-H; ST 2/R-H; ST 2/R-V; BS 2/C; BS 2/C-H; BS 2/R; BS 2/R-H; BS 2/R-V; CS/C
