Attributes

Length max [L max]	6000mm
Productgroup ID	2
ESD	yes
Length min [L min]	60mm
Weight	0kg
Scope of delivery	2x section profile SP 2/R-100,2x guide profile FP 2,8x slide profile GP 2
Delivery information	Fully assembled
Recommended accessories	Section supports SZ 2/...,Cross Connector,Profile connector
Required accessories	Accumulation roller chain,Accumulation roller chain with small parts trap,Cross connector QV 2, QV 2-H
Material information	Section profile: Aluminum, natural-colored, anodized,Glide profile, guide profile: PA 12

• For conveyor unit self-assembly
• For use in conjunction with AS 2/C-… drive modules and UM 2/C-… return units
• GP 2 plastic glide profiles
• Pre-assembled unit for quick setup

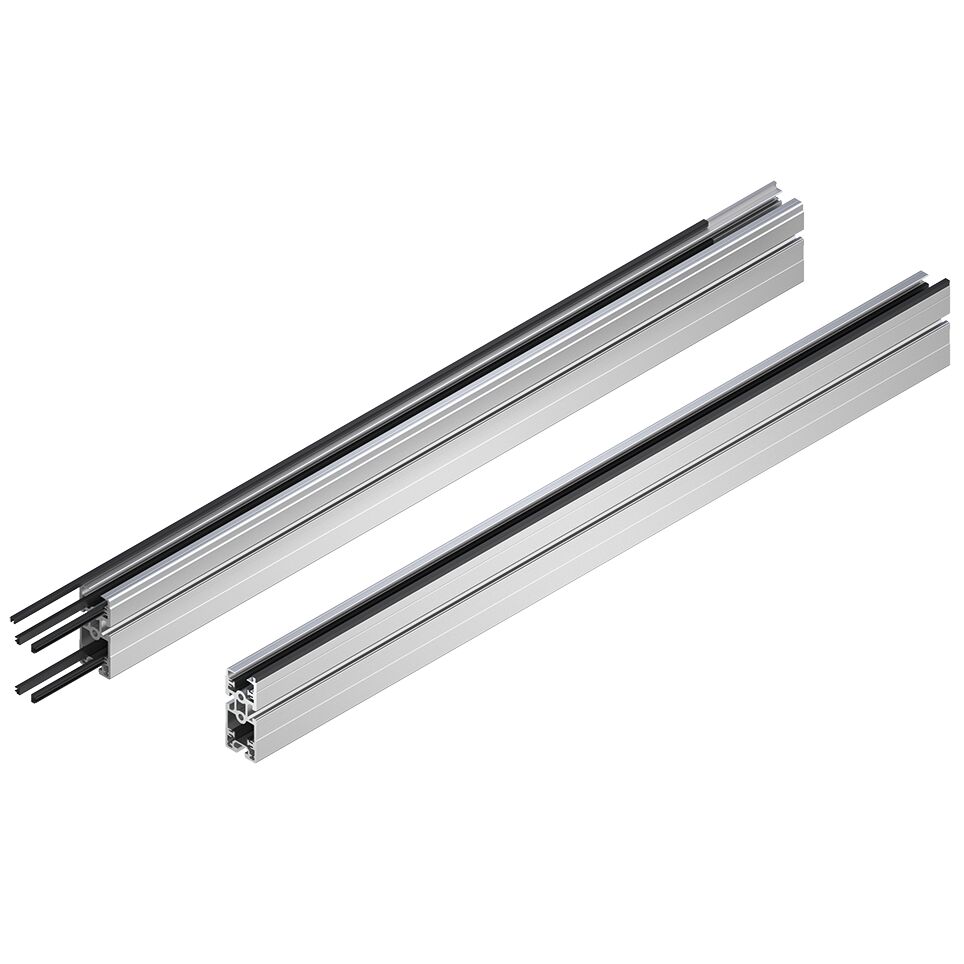

ST 2/R-100 Section
For conveyor unit self assembly, For use in conjunction with AS 2/C … drive modules and UM 2/C … return units, GP 2 plastic glide profiles, Pre assembled unit for quick setup

• 3D CAD
• Data Sheet

Condition of Delivery

Fully assembled

ST 2/R-100 Section

The section is used for setting up conveyor units in conjunction with the AS 2/R‑… drive modules and the UM 2/R‑… return units.

No.			3842994889
ESD
ESD			yes
Material entry			Aluminum, natural-colored, anodized Glide profile, guide profile: PA 12
Length	l	mm	60 … 6,000
