3842563102

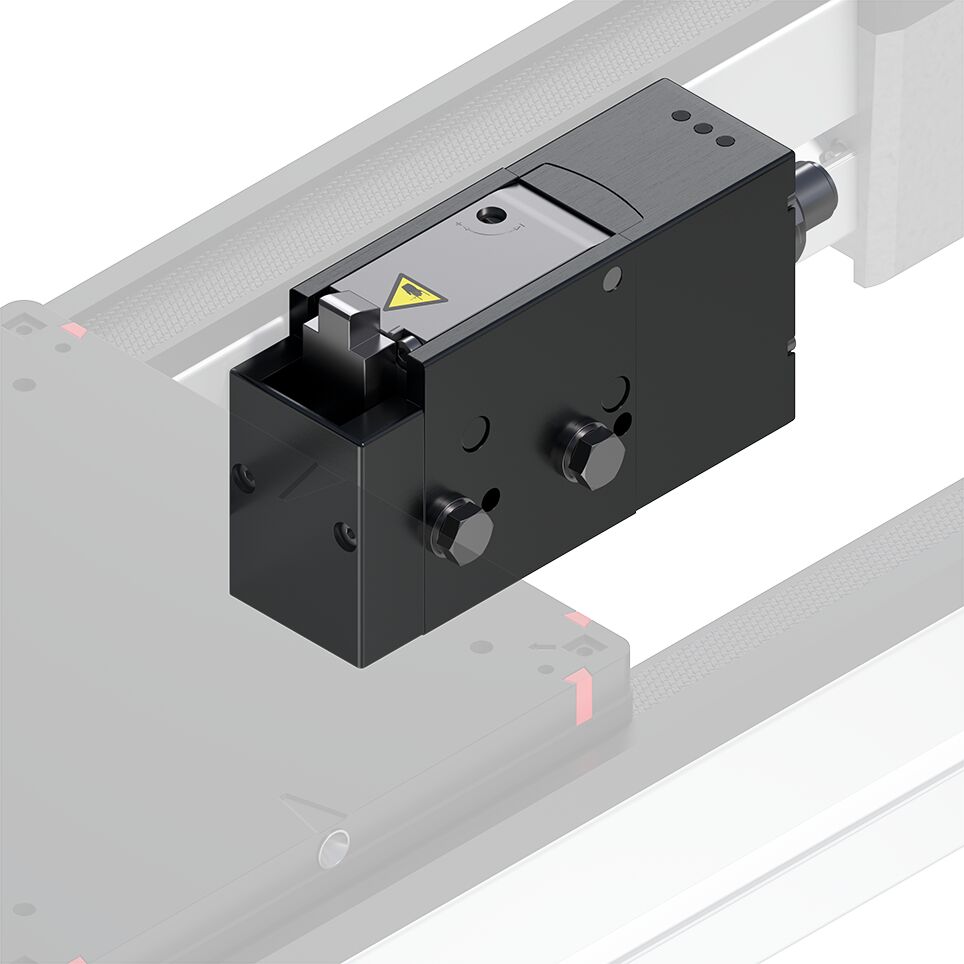

STOP GATE VE 1/D10-E

To the workpiece pallet separation in sections, Suitable as stop gate for HP 1/P and PE 1/P, Dampened stop gate, Can be combined with WT 1 workpiece pallet / Material Number:3842563102

STOP GATE VE 1/D10-E

Material #3842563102

Request Quote

Attributes

Cycle Time 3s
ESD Yes
Gross weight 0.42kg
Material information Housing: Aluminum, hard anodized,Stop: Steel, hardened
Maximum permissible accumulation load [kg] at nominal speed vN 12 m/min 5kg
Maximum permissible accumulation load [kg] at nominal speed vN 15 m/min 4kg
Maximum permissible accumulation load [kg] at nominal speed vN 18 m/min 3kg
Maximum permissible accumulation load [kg] at nominal speed vN 6 m/min 10kg
Maximum permissible accumulation load [kg] at nominal speed vN 9 m/min 6kg
Min. workpiece pallet weight 0.3kg
Net weight 0.42kg
Operating temperature [T] max +5 ... +60 °C
Required accessories Actuator and sensor system cables common in the market (5-pole)
Weight 0.42kg
Workpiece pallet weight [mG] 10kg
  • To the workpiece pallet separation in sections
  • Suitable as stop gate for HP 1/P and PE 1/P
  • Dampened stop gate
  • Can be combined with WT 1 workpiece pallet
  • - To the workpiece pallet separation in sections
  • - Suitable as stop gate for HP 1/P and PE 1/P
  • - Dampened stop gate
  • - Can be combined with WT 1 workpiece pallet
Stop gate VE 1/D10-E
To the workpiece pallet separation in sections, Suitable as stop gate for HP 1/P and PE 1/P, Dampened stop gate, Can be combined with WT 1 workpiece pallet

Request Quote
