3842563101

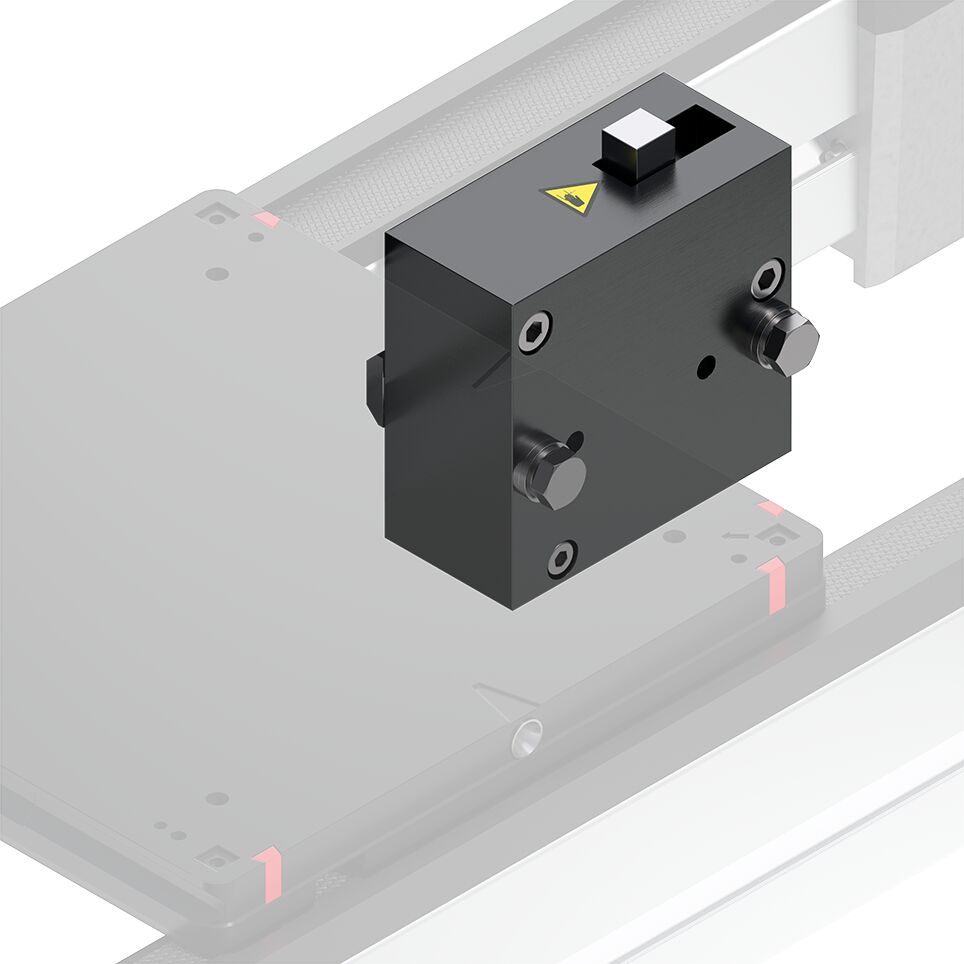

STOP GATE VE 1/20-E

To the workpiece pallet separation in sections, The stop gate stops one or several workpiece pallets at a defined position and releases them for further transport as required, Can be combined with WT 1 workpiece pallet, Compact, robust construction, Suitable as stop gate for HP 1/P and PE 1/P / Material Number:3842563101

STOP GATE VE 1/20-E

Material #3842563101

Request Quote

Attributes

Cycle Time 2s
Gross weight 0.44kg
Material information Housing: Aluminum, anodized,Tilt stop: Steel, hardened, elastomer
Maximum permissible accumulation load [kg] at nominal speed vN 12 m/min 8kg
Maximum permissible accumulation load [kg] at nominal speed vN 15 m/min 6kg
Maximum permissible accumulation load [kg] at nominal speed vN 18 m/min 4kg
Maximum permissible accumulation load [kg] at nominal speed vN 6 m/min 20kg
Maximum permissible accumulation load [kg] at nominal speed vN 9 m/min 12kg
Min. workpiece pallet weight 0.35kg
Net weight 0.44kg
Operating temperature [T] max +5 ... +40 °C
Required accessories Actuator system cable common in the market (4-pole)
Weight 0.44kg
Workpiece pallet weight [mG] 20kg
  • To the workpiece pallet separation in sections
  • The stop gate stops one or several workpiece pallets at a defined position and releases them for further transport as required
  • Can be combined with WT 1 workpiece pallet
  • Compact, robust construction
  • Suitable as stop gate for HP 1/P and PE 1/P
  • - To the workpiece pallet separation in sections
  • - The stop gate stops one or several workpiece pallets at a defined position and releases them for further transport as required
  • - Can be combined with WT 1 workpiece pallet
  • - Compact, robust construction
  • - Suitable as stop gate for HP 1/P and PE 1/P
Stop gate VE 1/20-E
To the workpiece pallet separation in sections, The stop gate stops one or several workpiece pallets at a defined position and releases them for further transport as required, Can be combined with WT 1 workpiece pallet, Compact, robust construction, Suitable as stop gate for HP 1/P and PE 1/P
