Attributes

Color	Gray
Conduction resistance [RA]	≤ 10⁶ Ω
Diameter D	125mm
Dimension [h]	158mm
ESD	yes
Fastening material	1x square screw M12x30,1x hexagon nut DIN985 M12
Force F	1000N
Material	PU
Material information	Castor wheel: PU,Housing: Steel, chrome-plated
Packaging unit	1
Profile slot	10
Required accessories	Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm),Bearing ring if cover cap with hole is used
Weight	0.88kg

• Suitable for use in clean rooms. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance 10³ up to 10⁸ Ω
• Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
• Versatile range of uses
• Wheels with excellent running properties
• All wheels mounted in the profile slot or central hole (accessories required)
• Profile finishing: thread cutting M12 in the case of assembly in central hole
• LR with lock: lock prevents the wheel from rolling or turning
• 1 - Suitable for use in clean rooms. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance 10³ up to 10⁸ Ω
• 2 - Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
• 3 - Versatile range of uses
• 4 - Wheels with excellent running properties
• 5 - All wheels mounted in the profile slot or central hole (accessories required)
• 6 - Profile finishing: thread cutting M12 in the case of assembly in central hole
• 7 - LR with lock: lock prevents the wheel from rolling or turning

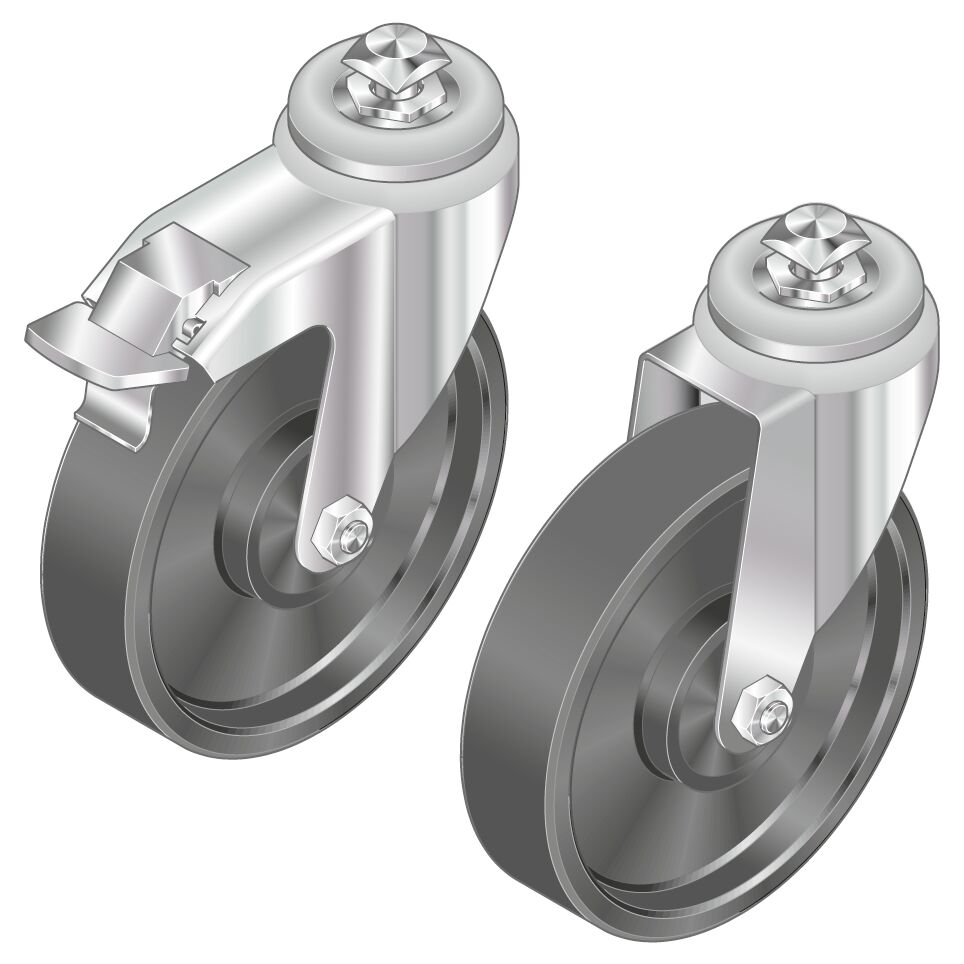

Castor wheel D125 F ESD Path
Suitable for ESD sensitive areas. Conductive material version in accordance with DIN EN 61340 5 1; conduction resistance ≤ 10⁶ Ω, Suitable for use in clean rooms. Conductive material version in accordance with DIN EN 61340 5 1; conduction resis
