Attributes

Height	60mm
Length	1050mm
Length [L]	1000mm
Material	Aluminum
Packaging unit	2
Profile slot	D28L
Weight	2.8kg
Width	100mm

• For axial shifting along the D28L or D28L, N10 round tube. The retaining ring determines the end position
• Construction of swiveling applications
• Additional thread for flexible bracket adjustment
• For self-assembly: D28L swivel bearing with L=1000mm that can be cut to length
• 1 - For axial shifting along the D28L or D28L, N10 round tube. The retaining ring determines the end position
• 2 - Construction of swiveling applications
• 3 - Additional thread for flexible bracket adjustment
• 4 - For self-assembly: D28L swivel bearing with L=1000mm that can be cut to length

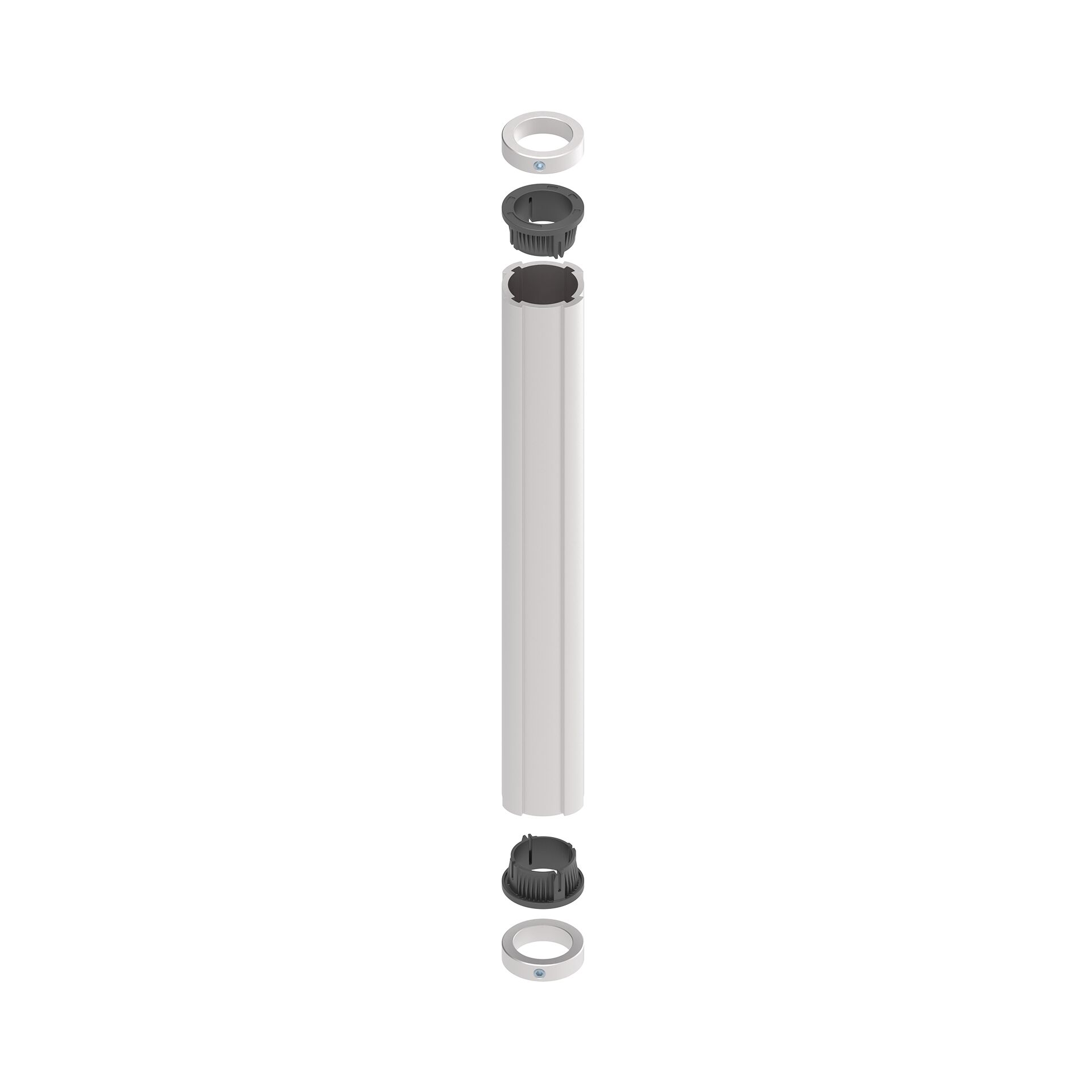

Swivel bearing D28L 1000 mm
Swivel bearing D28L, 1000MM
Construction of swiveling applications, Additional thread for flexible bracket adjustment, For axial shifting along the D28L or D28L, N10 round tube. The retaining ring determines the end position, For self assembly: D28L swivel bearing with L=1000mm that
