Attributes

Height	200mm
Length	200mm
Material	Diecast aluminum
Material information	Positioning unit: Diecast aluminum,Fastening parts: Steel, galvanized,Cover caps: PA,Clamping claws: PU
Required accessories	2x throttle check valves G 1/8",Position inquiry:<LineBreak/>- 2x sensor M12x45 3842557633<LineBreak/>- 1x switch bracket SH 2/HQ-R 842557606<LineBreak/>- 1x switch bracket SH 2/HQ-L 3842557607
Scope of delivery	Incl. fastening parts (as shown)
Weight	2.4kg
Width	130mm

• The positioning unit PE-VF/C is intended for use in clean ambient conditions
• The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing
• For rough ambient conditions, the positioning unit PE-VF/H is available
• Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm)
• Maximum vertical press force (p = 4 bar): 400 N
• Maximum retention force (p = 4 bar) in the direction of transport: 300 N
• Maximum permissible torque in the plier area: 60 Nm
• Suitable for retrofitting without disrupting the lateral guide
• The switch bracket can be installed in any position
• Minimum length of the workpiece pallets in order to incorporate the positioning unit: Size 65: L = 125 mm Size 90: L = 125 mm
• 2 positioning units can be combined for workpiece pallets with L  250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer
• Position inquiry (parts not included in the scope of delivery) with 2x sensor M12x45 (3 842 557 633) and 1x switch bracket each SH 2/HQ-R (3 842 557 606) and SH 2/HQ-L (3 842 557 607)
• 1 - The positioning unit PE-VF/C is intended for use in clean ambient conditions
• 2 - The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing
• 3 - For rough ambient conditions, the positioning unit PE-VF/H is available
• 4 - Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm)
• 5 - Maximum vertical press force (p = 4 bar): 400 N
• 6 - Maximum retention force (p = 4 bar) in the direction of transport: 300 N
• 7 - Maximum permissible torque in the plier area: 60 Nm
• 8 - Suitable for retrofitting without disrupting the lateral guide
• 9 - The switch bracket can be installed in any position
• 10 - Minimum length of the workpiece pallets in order to incorporate the positioning unit: Size 65: L = 125 mm Size 90: L = 125 mm
• 11 - 2 positioning units can be combined for workpiece pallets with L  250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer
• 12 - Position inquiry (parts not included in the scope of delivery) with 2x sensor M12x45 (3 842 557 633) and 1x switch bracket each SH 2/HQ-R (3 842 557 606) and SH 2/HQ-L (3 842 557 607)

Positioning unit PE-VF/C

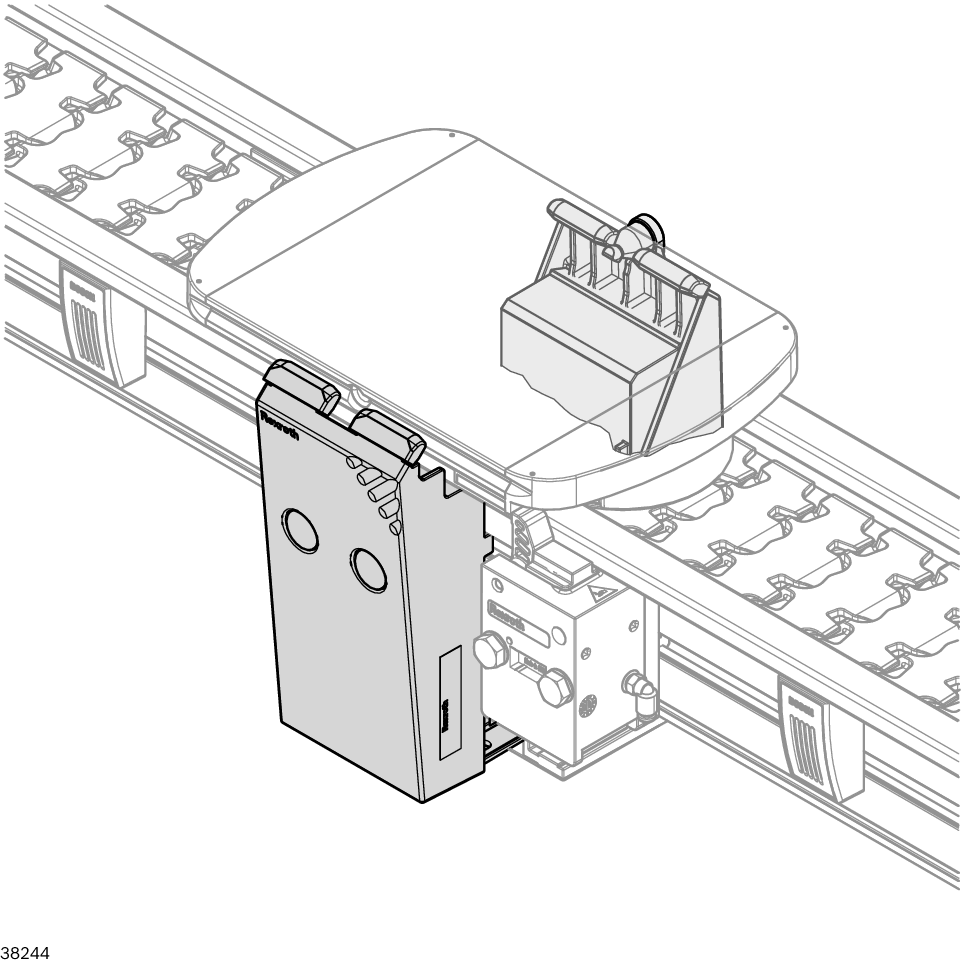

The switch bracket can be installed in any position, The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing, Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0
