Attributes

Dimensions	20x20
ESD	yes
Fastening material	2x flange head screw M4x6,2x T-nut groove 6 M4,2x screw S6x16
Force F1	3000N
Force F2	300N
Material	Diecast aluminum
Material information	Joint: Diecast aluminum,Fastening material: Steel, galvanized
Modular dimension	20mm
Packaging unit	1
Profile slot	6
Scope of delivery	Incl. fastening material
Swivel range	180°
Weight	0.05kg

• For movable or rigid profile connections at any angle
• Swivel range 180°
• With marking in 15° increments
• Clamping (3 Nm) and convenient adjustment of joint using a clamping lever (M4x20)
• Two different assembly versions (normal and support) available under the same order number
• 1 - For movable or rigid profile connections at any angle
• 2 - Swivel range 180°
• 3 - With marking in 15° increments
• 4 - Clamping (3 Nm) and convenient adjustment of joint using a clamping lever (M4x20)
• 5 - Two different assembly versions (normal and support) available under the same order number

Joint 20x20 standard

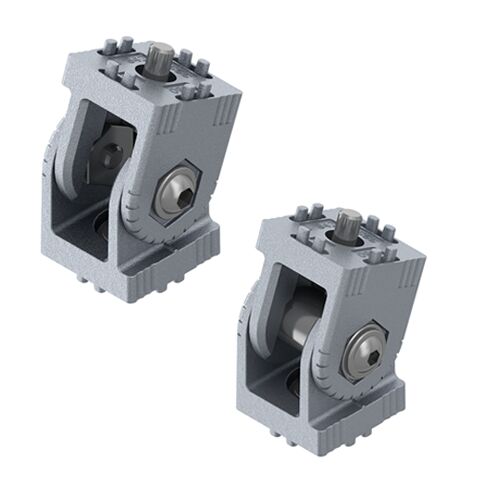

Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Swivel range 180°, Clamping (3 Nm) and convenient adjustment of joint using a clamping lever (M4x20), For movable or rigid profile connections
