Attributes

Bending moment 1	150Nm
Color	White aluminum (RAL 9006)
Dimension [p]	90mm
Dimensions	45x90
ESD	yes
Fastening material	2x countersunk screw DIN7991-M8x20,2x T-nut groove 10 M8
Gross weight	0.662kg
Height	90mm
Length	180mm
Material	Diecast zinc, painted
Material information	designLINE swivel bearing: Diecast zinc, painted,Fastening material: Steel, galvanized,Cover cap: PP, gray
Modular dimension	45mm
Packaging unit	1
Profile slot	10
Scope of delivery	Incl. cover caps, bolt connectors, fastening material (FS)
Weight	0.67kg
Width	45mm
designLINE	yes

• Suitable for swiveling right-angled profile connections, e.g. for constructing supporting arms or doors
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Profile finishing: drilling of through-hole D17
• 1 - Suitable for swiveling right-angled profile connections, e.g. for constructing supporting arms or doors
• 2 - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• 3 - Profile finishing: drilling of through-hole D17

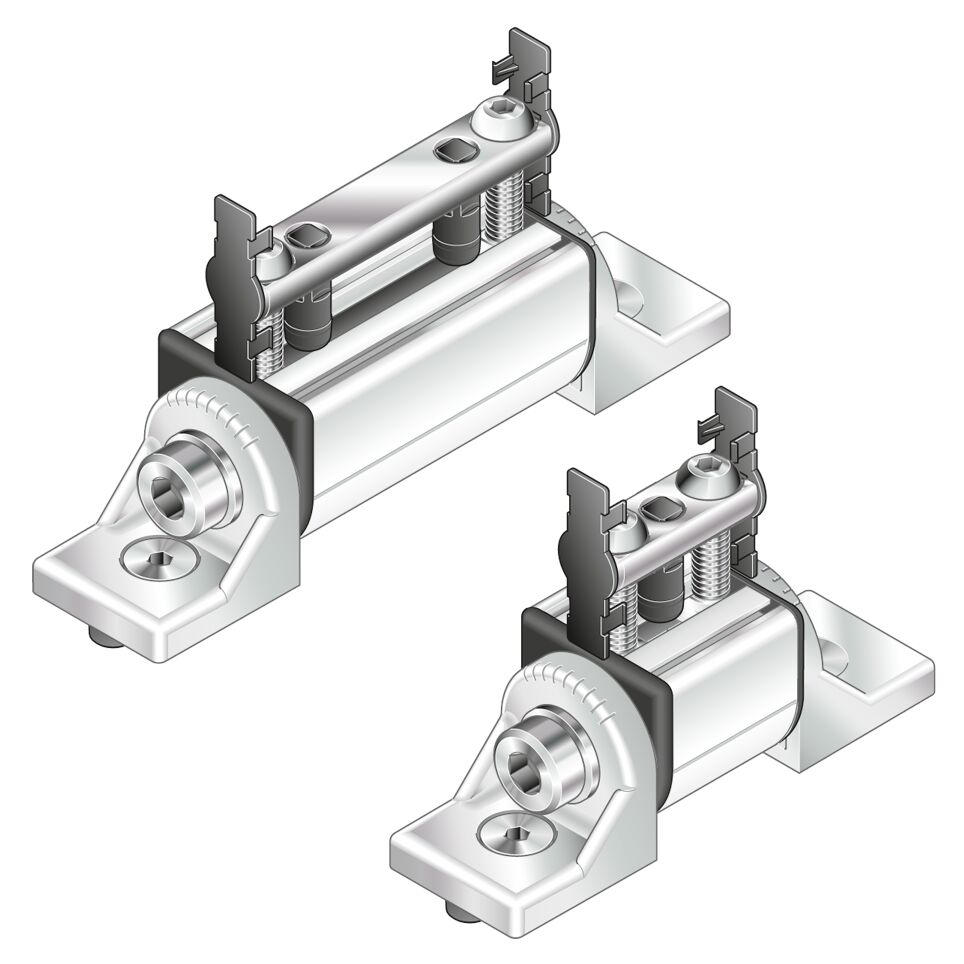

Swivel bearing 45x90 designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Suitable for swiveling right angled profile connections, e.g. for constructing supporting arms or doors, Profile finishing: drilling of through
