Attributes

Bending moment 1	40Nm
Color	White aluminum (RAL 9006)
Dimension [p]	40mm
Dimensions	40x40
ESD	yes
Fastening material	2x countersunk screw DIN7991-M8x20,2x T-nut groove 10 M8
Gross weight	0.332kg
Height	40mm
Length	120mm
Material	Diecast aluminum, painted
Material information	designLINE swivel bearing: Diecast aluminum, painted,Fastening material: Steel, galvanized,Cover cap: PP, gray
Modular dimension	40mm
Packaging unit	1
Profile slot	10
Scope of delivery	Incl. cover caps, bolt connectors, fastening material (FS)
Weight	0.34kg
Width	40mm
designLINE	yes

• Suitable for swiveling right-angled profile connections, e.g. for constructing supporting arms or doors
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Profile finishing: drilling of through-hole D17
• 1 - Suitable for swiveling right-angled profile connections, e.g. for constructing supporting arms or doors
• 2 - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• 3 - Profile finishing: drilling of through-hole D17

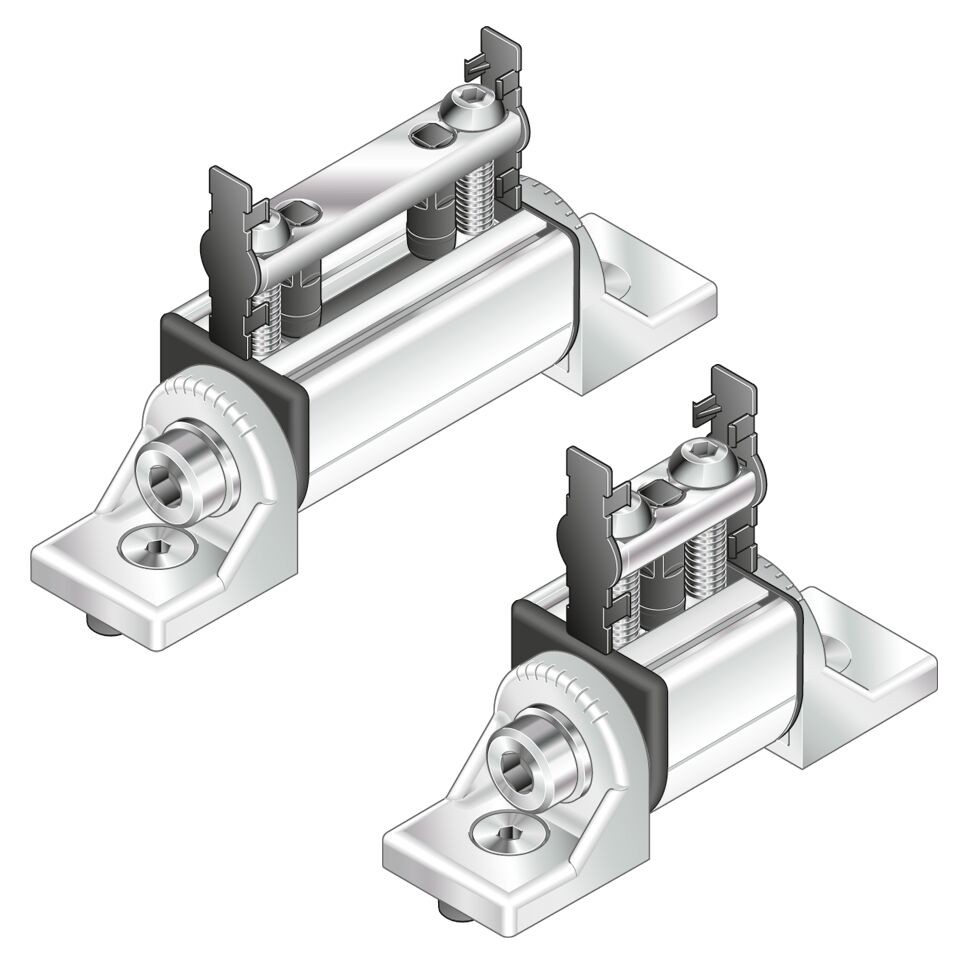

Swivel bearing 40x40 designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Suitable for swiveling right angled profile connections, e.g. for constructing supporting arms or doors, Profile finishing: drilling of through
