Attributes

Delivery information	Chain: Fully assembled
Gross weight	5.77kg
Height	530mm
Length	530mm
Length [L]	4968mm
Material information	Chain link: POM,Flocking: PA 3.3dtex, anthracite,Chain pin: Non-rusting steel 1.4301,Pivot pin: PA 66
Net weight	5.77kg
Packaging unit	1
Scope of delivery	Chain: Complete, incl. chain pin and jointed bolts
Size [b]	90
Weight	5.77kg
Width	90mm

• Is used on sensitive transport surfaces (for example, gloss, clear, barcode, raised printing)
• 1 - Is used on sensitive transport surfaces (for example, gloss, clear, barcode, raised printing)

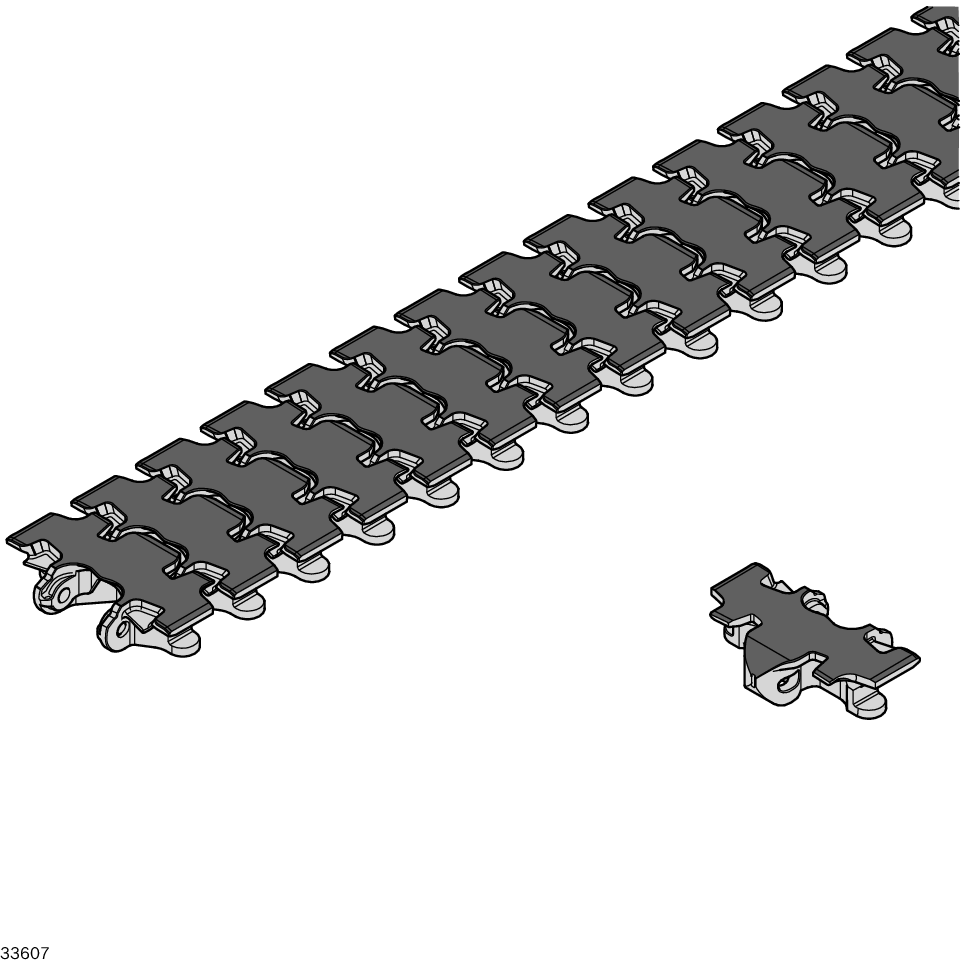

Flocked chain VFplus 90
Is used on sensitive transport surfaces (for example, gloss, clear, barcode, raised printing)

• 3D CAD
• Data Sheet

Required accessories

For single chain links: chain pin and jointed bolt

Condition on delivery

Chain: fully assembled

Scope of delivery

Chain: complete, incl. chain pin and jointed bolts

Flocked chain VFplus 90

Transport on uphill or downhill gradients up to about 7° possible, depending on the product (test required) For products susceptible to accumulation Maximum chain tensile force: 1250 N Size: 90 Only dry use Maximum permissible tracking force: 5 N/chain link Not suitable for sharp-edged products Combination with chain links of different chain types is not advisable Soft PA-flocking 3.3dtex for sensitive product surfaces

Material

Kettenglied: POM

Kettenstift: Edelstahl 1.4301

Gelenkbolzen: PA 66

Beflockung: PA 3,3dtex, anthrazit
