Attributes

Bending moment 1	140Nm
Color	Signal gray
Dimensions	50x50
ESD	yes
Fastening material	3x screw S12x30
Height	54mm
Length	54mm
Material	Diecast aluminum
Material information	Cubic connector: Diecast aluminum,Fastening material: Steel, galvanized
Notice	Cubic connector creates conductive connection, but the cover caps included in the set are not ESD-compatible.
Number of outlets	3
Profile slot	10
Recommended accessories	Cover cap D30 black (PP)
Scope of delivery	Incl. fastening material,Cubic connector (standard),Cover cap D30, signal gray (PP)
Weight	0.26kg
Width	54mm

• For torsion-resistant corner connection of profiles with equal cross-sections
• Cover caps to cover the openings
• Screw fitting on profile with self-tapping screws
• Profile finishing: not required
• 1 - For torsion-resistant corner connection of profiles with equal cross-sections
• 2 - Cover caps to cover the openings
• 3 - Screw fitting on profile with self-tapping screws
• 4 - Profile finishing: not required

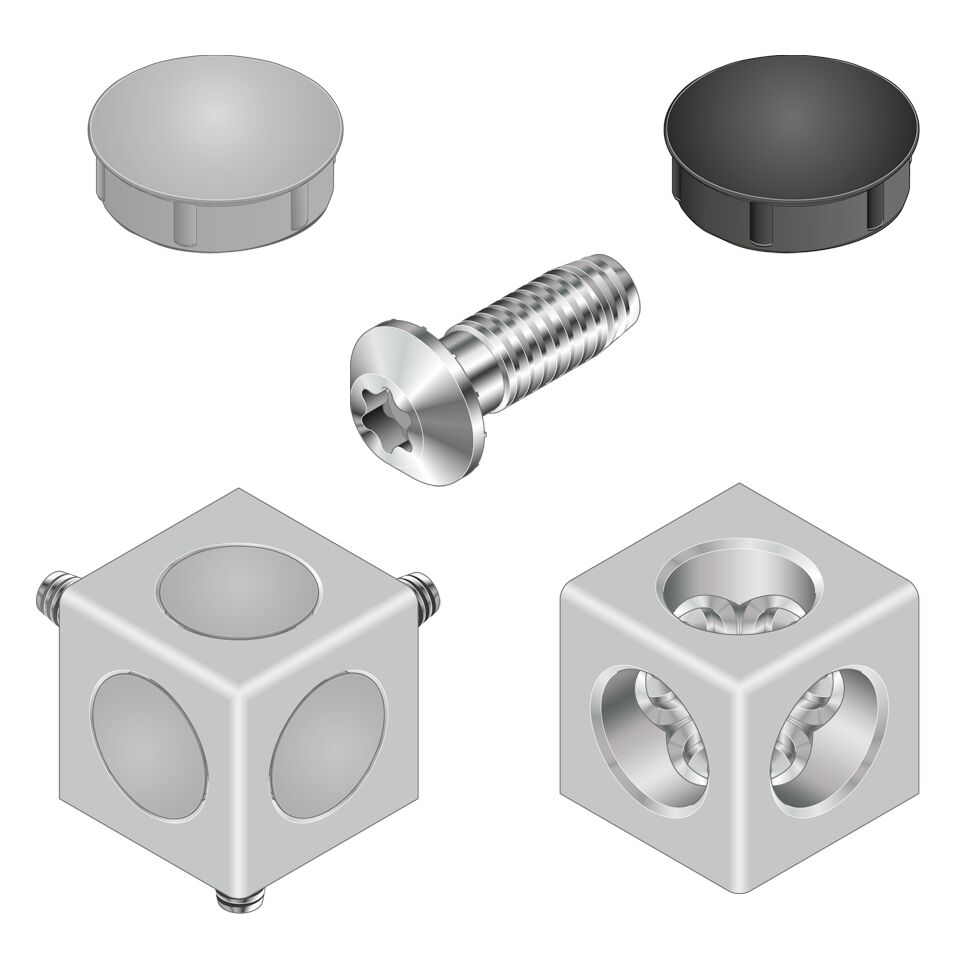

Cubic connector 50/3 set (standard)
Screw fitting on profile with self tapping screws, For torsion resistant corner connection of profiles with equal cross sections, Cover caps to cover the openings, Profile finishing: not required

• 3D CAD
• Data Sheet

	Recommended accessories
	Cover cap D30, black (PP)	Countersunk screw S12x30
		Cover cap D30, signal gray (PP)
		Cover cap D30, black (PP)

FS3

Cubic connector 50/3

Central bolt S12x30-T50

	Groove	ESD	Material entry
				Fmax	Mmax
				N	Nm
Cubic connectors	10		Cubic connector: diecast aluminum Fastening material: steel; galvanized		140
	10		Cubic connector: diecast aluminum Fastening material: steel; galvanized		140
Cover cap, cubic connector			PP
			PP
Central bolt	10		Steel; galvanized	1300	80

Typ​
50/3	140 Nm
