Attributes

Color	Black
Dimensions	50x50
ESD	yes
Gross weight	9.46g
Height	16mm
Length	70mm
Material	PP
Packaging unit	20
Weight	0.01kg
Width	50mm

• Brackets with centering lugs for rapid, precise assembly with protection against turning
• Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
• Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
• Profile finishing: not required
• 1 - Brackets with centering lugs for rapid, precise assembly with protection against turning
• 2 - Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
• 3 - Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
• 4 - Profile finishing: not required

Cover cap for bracket 50/50, black
Brackets with centering lugs for rapid, precise assembly with protection against turning, Centering lugs can be easily broken off for assembly on plates or at right angles to the slot, Cover cap to protect from dirt, available in signal gray (RAL 7004) an

• 3D CAD
• Data Sheet

	Recommended accessories
	Cover cap for bracket 50/50, signal gray
	Cover cap for bracket 50/50, black

FS7

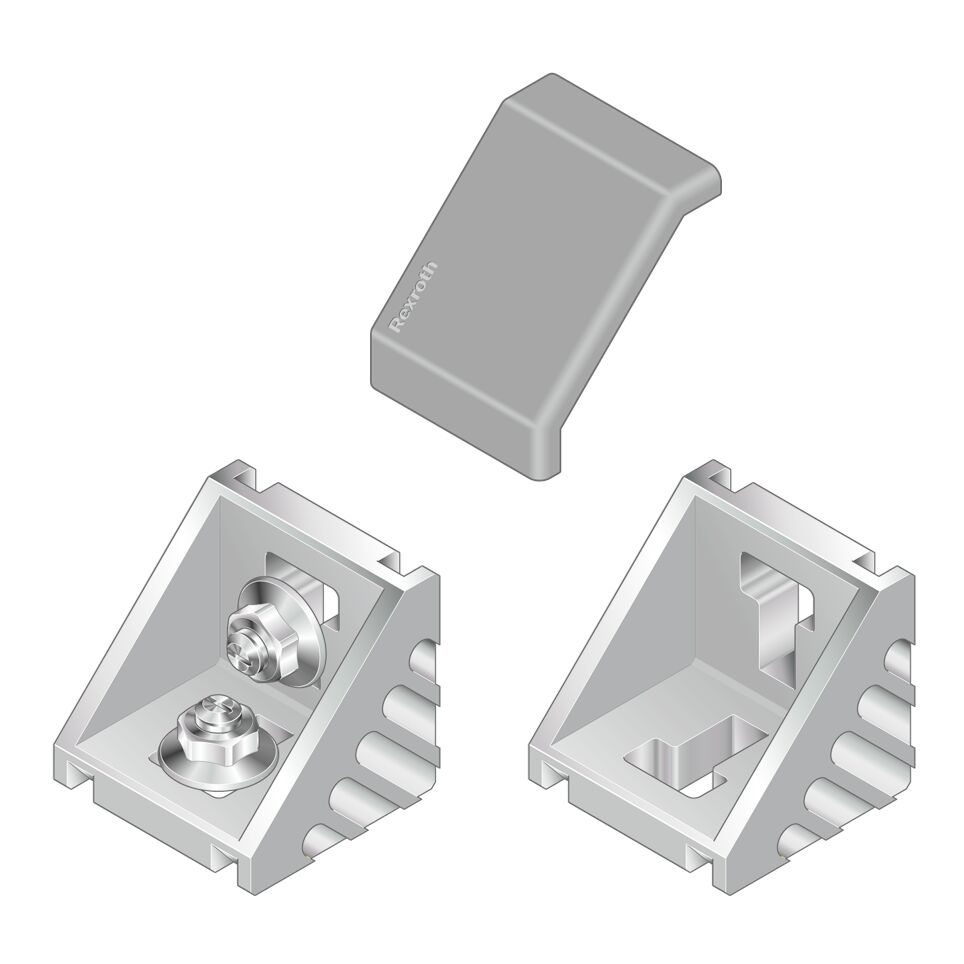

Bracket 50/50 with cover cap

Connection elements, selection criteria

	Groove	ESD	Material entry
				Fmax	Mmax	Mmax	Mmax
				N	Nm	Nm	Nm
Bracket	10		Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized	4000	125	250	38
	10		Bracket: Diecast aluminum, vibratory ground	4000	125	250	38
Cover cap for bracket			PP
			PP

Typ
50 / 50	4000 N	125 Nm	250 Nm	38 Nm
