3842547758

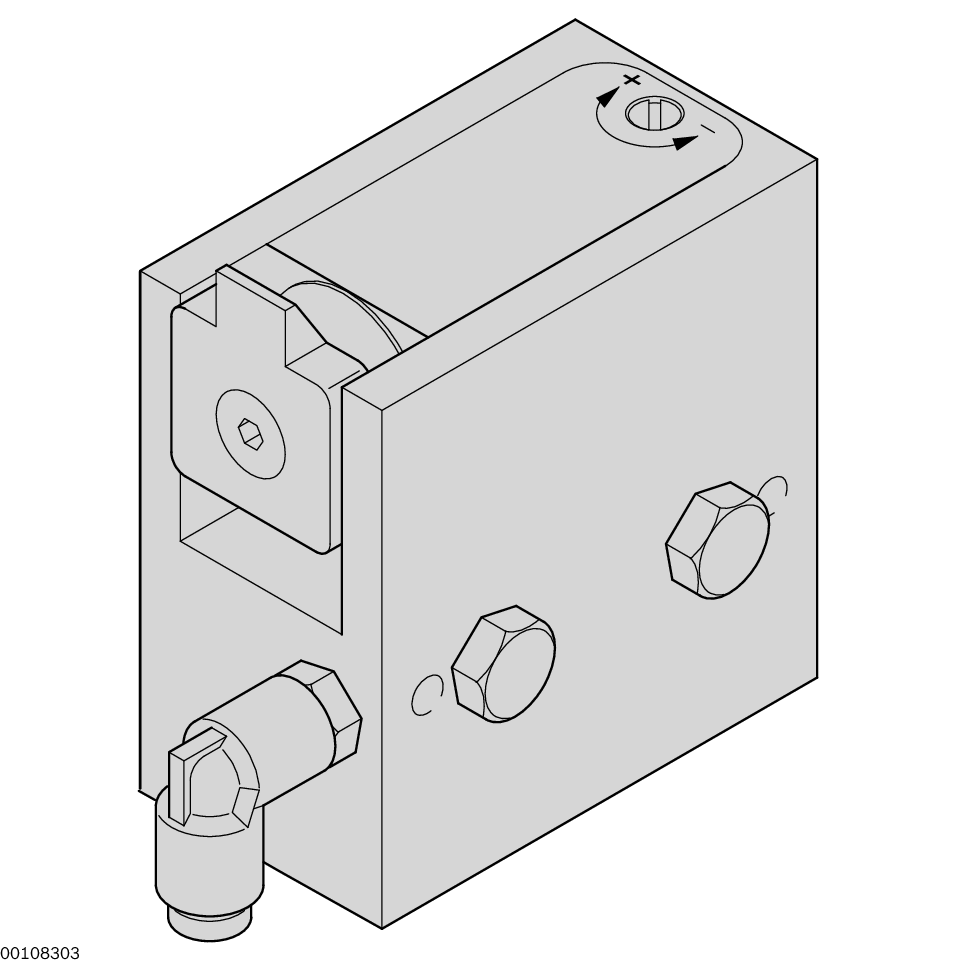

STOP GATE VE 1/D

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped., Pneumatic damping can be adapted to the workpiece pallet weight / Material Number:3842547758

STOP GATE VE 1/D

Material #3842547758

Request Quote

Attributes

Clean room classification ISO class 7
Delivery information Fully assembled
Dry room <lt/>1
Gross weight 0.441kg
Height 50mm
Length 100mm
Maximum permissible accumulation load [kg] at nominal speed vN 12 m/min 10kg
Maximum permissible accumulation load [kg] at nominal speed vN 15 m/min 10kg
Maximum permissible accumulation load [kg] at nominal speed vN 18 m/min 8kg
Maximum permissible accumulation load [kg] at nominal speed vN 6 m/min 12kg
Maximum permissible accumulation load [kg] at nominal speed vN 9 m/min 10kg
Min. workpiece pallet weight 0.5kg
Net weight 0.441kg
Pneumatic straight connection [Ø] 4mm
Recommended accessories Switch Bracket
Required accessories Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min
required compressed air connection [pmax] 6bar
required compressed air connection [pmin] 4bar
Scope of delivery Incl. fastening material for assembly on conveyor section,Pneumatic elbow fitting (pushlock type)
Weight 0.45kg
Width 70mm
  • Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.
  • Pneumatic damping can be adapted to the workpiece pallet weight
  • - Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.
  • - Pneumatic damping can be adapted to the workpiece pallet weight
Stop gate VE 1/D
Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped., Pneumatic damping can be adapted to the workpiece pallet weight

Opening and shutting times

* = open

1) Close
2) Open 4 bar
3) L = hose length

Stop Gate, damped VE 1/D

The stop gates are used to stop workpiece pallets. Actuation is performed pneumatically. In an unpressurized state, the stop gate is held in the blocking position by a spring and thus contributes significantly to production safety.

The stop gate VE 1/D is used when conveying impact-sensitive parts.

Can be fastened to the section profile inside on the right (A) or on the left (B).

No.

3842547758

Max. section load in accumulation operation

kg

12

Cleanroom class

ISO class 7

Dry room

r.F.

%

<1

Required compressed air connection

p

bar

4 ... 6 bar

Pneumatic push-in fitting

Ø

mm

4

Permissible accumulation load

mG

vN

kg

m/min

12
10
10
10
8
6
9
12
15
18
