PROXIMITY SWITCH M18 SN=16 L=65
| Ambient temperature [T] | -15 ... +70 °C |
| Conformity | cULus,CE,EAC |
| Function display | LED |
| Gross weight | 46g |
| Height | 24mm |
| Length | 65mm |
| Length [L] | 65mm |
| Material information | Housing: CuZn, nickel-free coating,Active surface: LCP |
| Mechanical installation | Not flush |
| Net weight | 46g |
| Nominal switching distance [Sn] | 13mm |
| Notice | IEC 60947-5-2 |
| Operating current | 200mA |
| Operating voltage DC | 10 ... 30 |
| Protection class | IP67 |
| Push-in fitting | M18x1 |
| Required accessories | SH 2/U-H switch bracket,Assembly kit for switch bracket,Clamping holder for sensors |
| Switching frequency | 800Hz |
| Switching function | Normally open (NO) |
| Switching output | PNP |
| Thread size | M18x65 |
| Weight | 0.05kg |
| Width | 27.8mm |
- Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.
- 1 - Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.

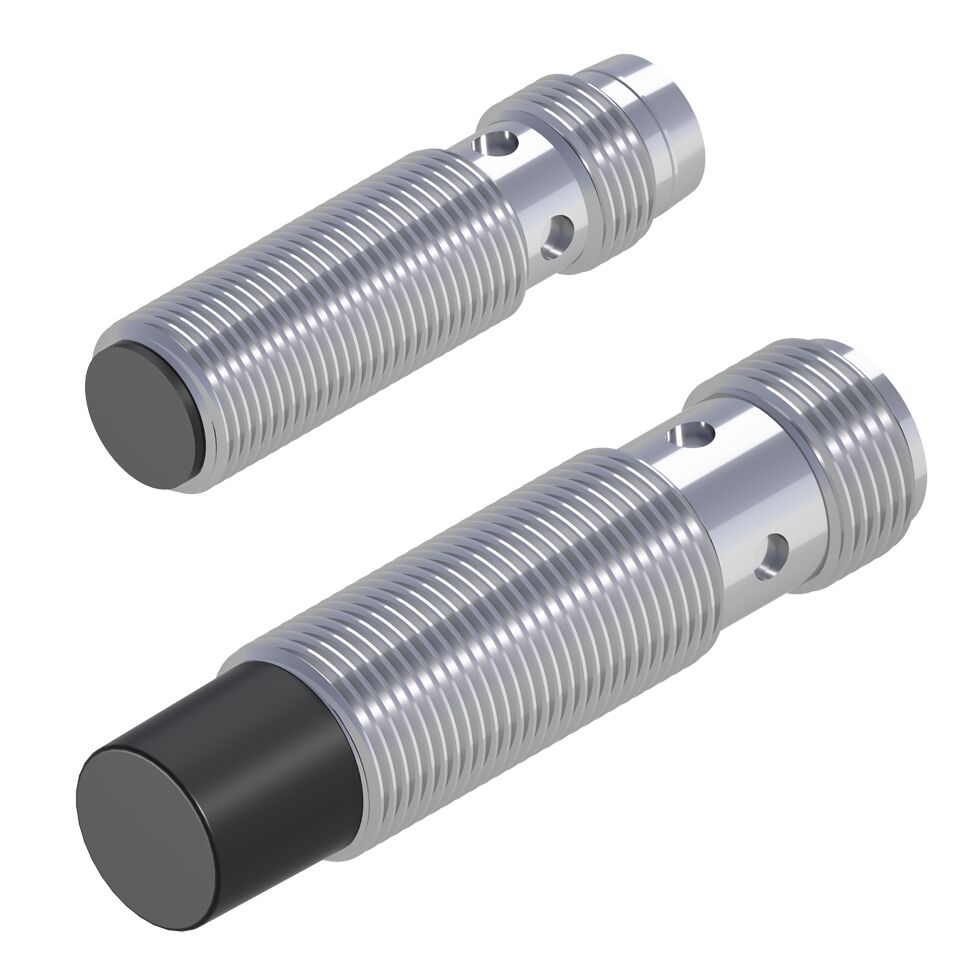

M18x1 sensor
Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.
Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.
