PROTECTION SLEEVE PE 5 BASIC
| Gross weight | 0.061kg |
| Material | PA |
| Required accessories | Protective covers for conveyor unit |
| Weight | 0.07kg |

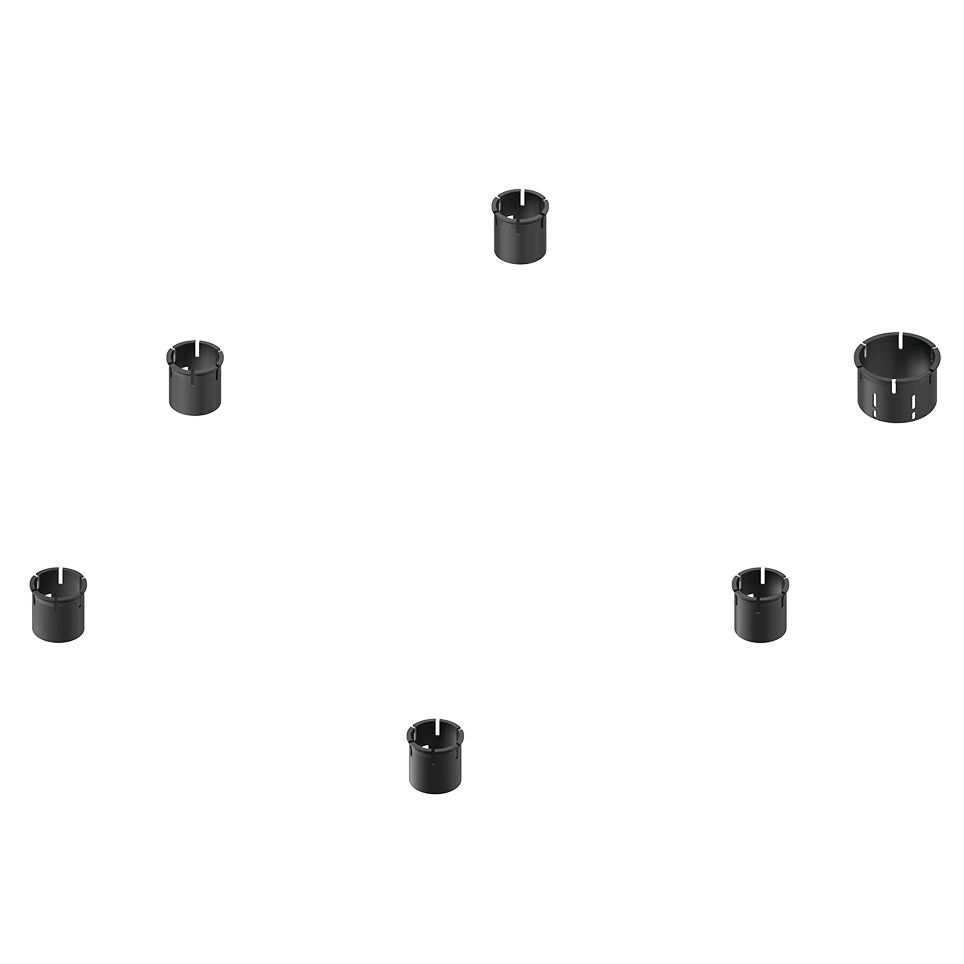

- Trap guard to clip in the openings in the protective covers over the lifting plungers of the PE 5, PE 5/T, PE 5/L and PE 5/L-T. Refer to the assembly instructions for the installation dimensions.
- Note: Do not walk on the protective covers. Slots for add-on parts must be made by the customer; for details, see assembly instructions
- 1 - Trap guard to clip in the openings in the protective covers over the lifting plungers of the PE 5, PE 5/T, PE 5/L and PE 5/L-T. Refer to the assembly instructions for the installation dimensions.
- 2 - Note: Do not walk on the protective covers. Slots for add-on parts must be made by the customer; for details, see assembly instructions
Note: Do not walk on the protective covers. Slots for add on parts must be made by the customer; for details, see assembly instructions, Trap guard to clip in the openings in the protective covers over the lifting plungers of the PE 5, PE 5/T
Protective Covers for ST 5/XH, ST 5/H
Protective Covers for ST 5/XH, ST 5/H
section center protective cover (A) Protective covers for transition between curve (diverter, junction) / conveyor unit (B) Protective covers for transition between conveyor unit/conveyor unit with different rollers (C) Spring element (H), 4x required for each protective coverCAD data
|
No. |
Material |
| 3842545965 | PA |
| 3842545966 |
Required protective sleeves sets for PE 5, PE 5/T, PE 5/L and PE 5/L-T
|
b1 (mm) |
lWT2 (mm) |
|
No. |
|
No. |
|
No. |
|
|
|
|
A |
|
B for PE 5 and PE 5/L |
|
B for PE 5/T and PE 5/L-T |
|
455 |
455 |
1x |
3 842 545 965 |
|
|
|
|
|
455 |
650 |
1x |
3 842 545 965 |
|
|
|
|
|
650 |
650 |
1x |
3 842 545 965 |
|
|
|
|
|
650 |
845 |
1x |
3 842 545 965 |
+1x |
3 842 545 966 |
+2x |
3 842 545 966 |
|
845 |
845 |
1x |
3 842 545 965 |
+3x |
3 842 545 966 |
+3x |
3 842 545 966 |
|
845 |
1040 |
1x |
3 842 545 965 |
+3x |
3 842 545 966 |
+3x |
3 842 545 966 |
| 1) | b = track width in direction of transport (longitudinal conveyor) |
| 2) | lWT = workpiece pallet length |
