Attributes
| Delivery information |
Not assembled |
| Gross weight |
0.43kg |
| Height |
53mm |
| Length |
242mm |
| Net weight |
0.43kg |
| Profile slot |
10 |
| Required accessories |
SH 2/U-H switch bracket,M12x1 sensor with rated sensing range of S<sub>N </sub>≥ 4 mm |
| Scope of delivery |
incl. fastening material for assembly and a 45x90 bracket for reinforcement as needed. |
| Weight |
0.43kg |
| Width |
130mm |
- Holding plate to bring the switch bracket into the correct inquiry position
- Centering lugs for pre-positioning and fast assembly
- Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.
- Accessories, sensor in Open Center assembly kit for SH 2/U-H switch bracket
- SH 2/U-H switch bracket
- Fastening for an M12x1 proximity switch for workpiece pallet position sensing from below. Especially sturdy metal design
- Integrated stop for 12 mm sensor
- Mounting location: On the assembly kit for the switch bracket
- Assembly kit for SH 2/U-H switch bracket
- Installation location: on ST 5/H, ST 5/XH conveyor unit
- SH 2/U-H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit
- Installation location: on the PE 5 positioning unit and HQ 5 lift transverse unit; not required for b = 455 mm (fitted to stop gate without assembly kit)
- Assembly kit for SH 2/U-H switch bracket on ST 5/OC conveyor unit
- Mounting location: on the section profile
- - Holding plate to bring the switch bracket into the correct inquiry position
- - Centering lugs for pre-positioning and fast assembly
- - Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.
- - Accessories, sensor in Open Center assembly kit for SH 2/U-H switch bracket
- - SH 2/U-H switch bracket
- - Fastening for an M12x1 proximity switch for workpiece pallet position sensing from below. Especially sturdy metal design
- - Integrated stop for 12 mm sensor
- - Mounting location: On the assembly kit for the switch bracket
- - Assembly kit for SH 2/U-H switch bracket
- - Installation location: on ST 5/H, ST 5/XH conveyor unit
- - SH 2/U-H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit
- - Installation location: on the PE 5 positioning unit and HQ 5 lift transverse unit; not required for b = 455 mm (fitted to stop gate without assembly kit)
- - Assembly kit for SH 2/U-H switch bracket on ST 5/OC conveyor unit
- - Mounting location: on the section profile

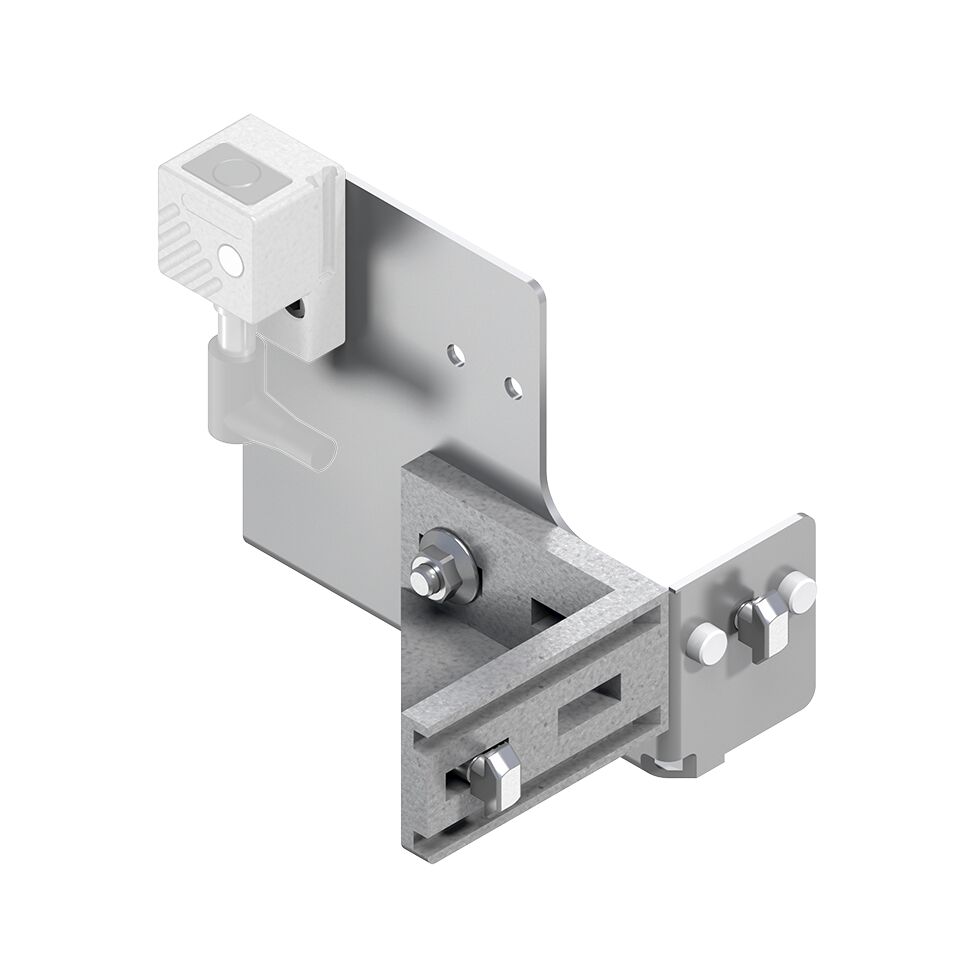

Assembly kit for SH 2/U-H on ST 5/H, ST 5/XH
Holding plate to bring the switch bracket into the correct inquiry position, Centering lugs for pre positioning and fast assembly, Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units., Accessories, sensor in Open Center assembly kit for SH 2/U H switch bracket, SH 2/U H switch bracket, Fastening for an M12x1 proximity switch for workpiece pallet position sensing from below. Especially sturdy metal design, Integrated stop for 12 mm sensor, Mounting location: On the assembly kit for the switch bracket, Assembly kit for SH 2/U H switch bracket, Installation location: on ST 5/H, ST 5/XH conveyor unit, SH 2/U H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit, Installation location: on the PE 5 positioning unit and HQ 5 lift transverse unit; not required for b = 455 mm (fitted to stop gate without assembly kit), Assembly kit for SH 2/U H switch bracket on ST 5/OC conveyor unit, Mounting location: on the section profile
Condition of Delivery
|
SH 2/U-H switch bracket
|
Not assembled
|
|
Assembly kit for SH 2/U-H on ST 5/H, ST 5/XH
|
|
SH 2/U-H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit
|
|
Assembly kit for SH 2/U-H on ST 5/OC
|
Scope of delivery
|
SH 2/U-H switch bracket
|
Incl. fastening material
|
|
Assembly kit for SH 2/U-H on ST 5/H, ST 5/XH
|
incl. fastening material for assembly and a 45x90 bracket for reinforcement as needed.
|
|
SH 2/U-H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit
|
Incl. fastening material for assembly
|
|
Assembly kit for SH 2/U-H on ST 5/OC
|
SH 2/U-H switch bracket
SH 2/U-H switch bracket
Mounting kit SH 2/U-H on conveyor unit ST 5/OC
Assembly kit for SH 2/U-H switch bracket
|
No.
|
Material
|
|
3842537289
|
Aluminum, die-cast
|
|
3842545134
|
|
|
3842545132
|
|
3842545533
|
