Attributes

Delivery information	Not assembled
Height	120mm
Length	231mm
Mass [m]	50kg
Nominal speed [vN]	9 m/min,12 m/min,15 m/min,18 m/min
Packaging unit	Set
Pneumatic straight connection [Ø]	6mm
Recommended accessories	Lateral guide cover
Required accessories	Lateral guide cover
Scope of delivery	Incl. fastening material for installation on conveyor section,Push in air connection ø 6 mm
Weight	6.2kg
Width	215mm
Workpiece pallet weight [mG]	11001000800
required compressed air connection [pmax]	6bar
required compressed air connection [pmin]	5bar

• Damped stopping of an accumulating workpiece pallet during infeeding
• Damping steplessly adjustable (DA 5/200, DA /1000 self-adjusting)
• For the workpiece pallet system loads, refer to the technical data
• The damper is extended pneumatically into the damping position (infeeding of the workpiece pallet to the main section) and is pushed into the end position by the infeeding workpiece pallet. A workpiece pallet can only move onto the main section if the damper is in the end position
• Compressed air connection: 5 ... 6 bar
• 1 - Damped stopping of an accumulating workpiece pallet during infeeding
• 2 - Damping steplessly adjustable (DA 5/200, DA /1000 self-adjusting)
• 3 - For the workpiece pallet system loads, refer to the technical data
• 4 - The damper is extended pneumatically into the damping position (infeeding of the workpiece pallet to the main section) and is pushed into the end position by the infeeding workpiece pallet. A workpiece pallet can only move onto the main section if the damper is in the end position
• 5 - Compressed air connection: 5 ... 6 bar

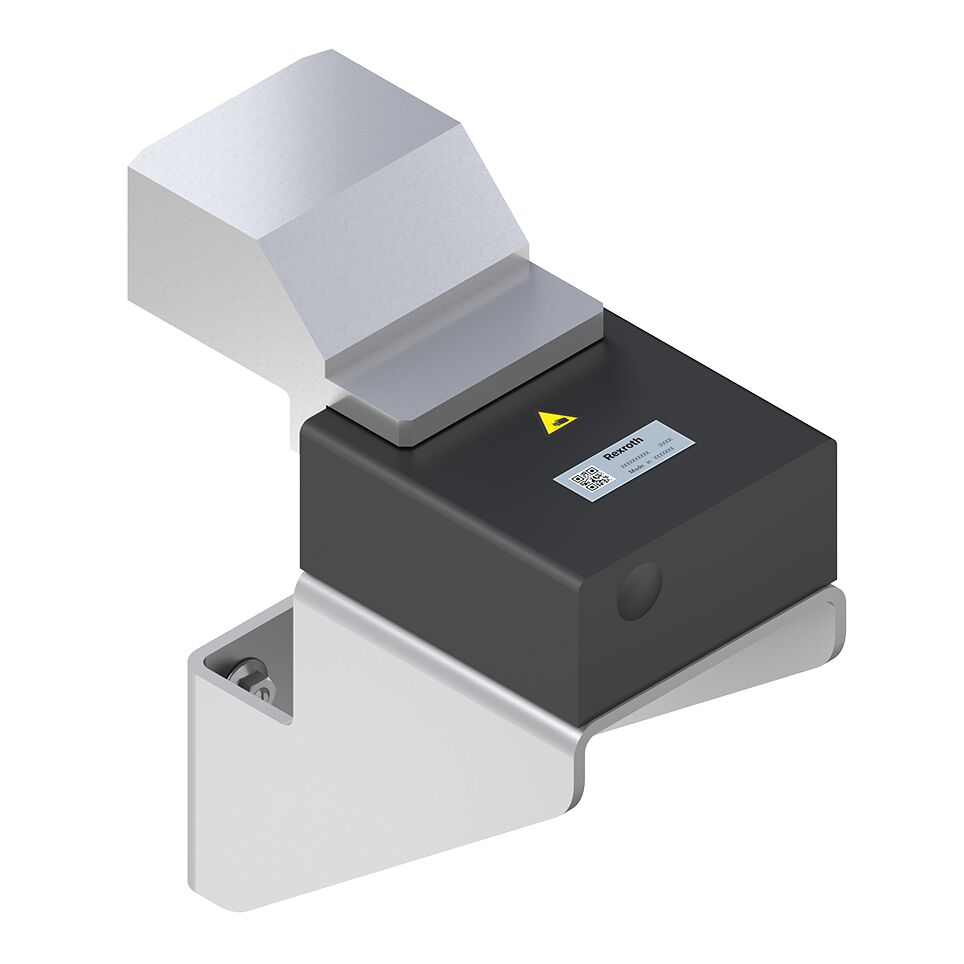

DA 5/1000 dampers
Compressed air connection: 5 ... 6 bar, Damped stopping of an accumulating workpiece pallet during infeeding, Damping steplessly adjustable (DA 5/200, DA /1000 self adjusting), For the workpiece pallet system loads, refer to the technical data, The damper

• 3D CAD
• Data Sheet

Condition of Delivery

DA 5/200 dampers	Not assembled
DA 5/1000 dampers

Scope of delivery

DA 5/200 dampers	Incl. fastening material for assembly on the conveyor section, pneumatic push-in connector ø 6 mm
DA 5/1000 dampers

DA 5/200 damper

DA 5/1000 damper

Note:

If the damper is extended, it protrudes into the main section and cannot be retracted pneumatically! The damper can only be retracted by infeeding a workpiece pallet. Collision hazard if there are overhanging carrying plates.

Set up of transverse conveyor

No.
3842545128
3842545130

Permissible impact force per WT

mWT	vN1)
(kg)	(m/min)
min. 50 max. 1100	2 ... 9
min. 50 max. 1000	2 ... 12
min. 50 max. 800	2 ... 18

1)	Conveyance speed
