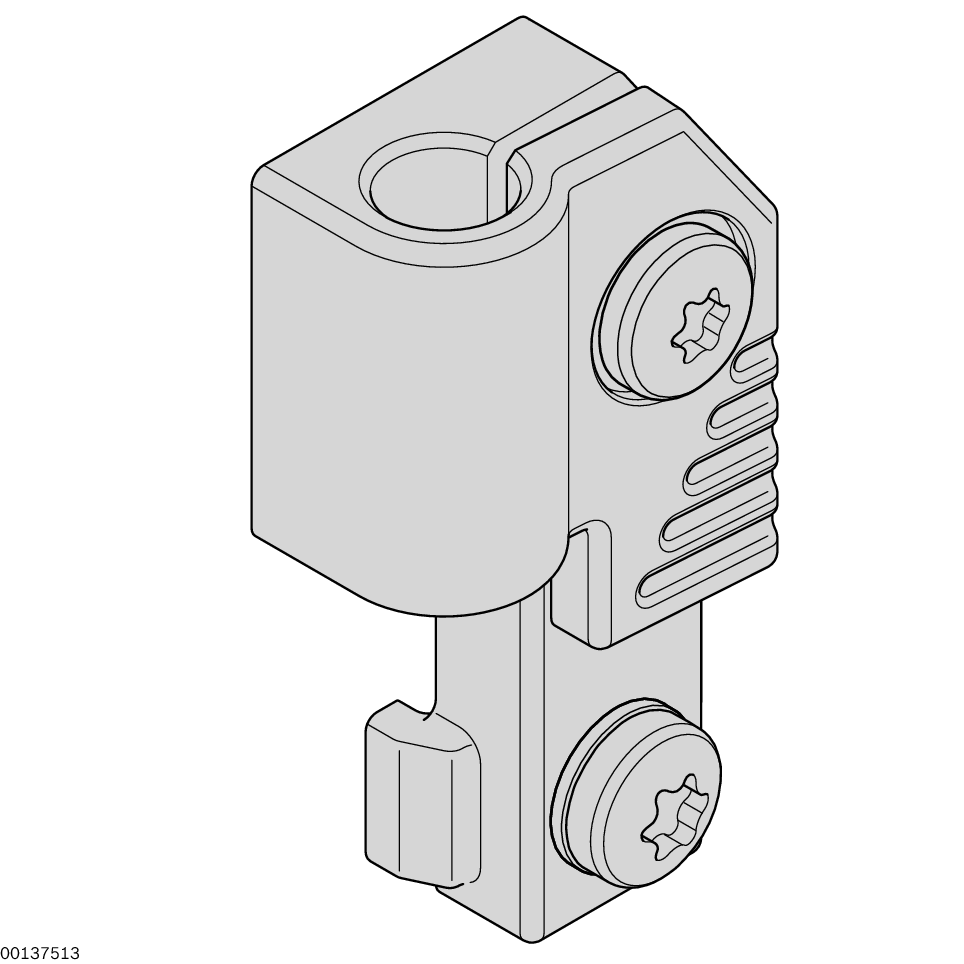

SWITCH BRACKET SH 1/U KPL ESD
| Clean room classification | ISO class 7 |
| Color | Black |
| Dry room | <lt/>1 |
| ESD | yes |
| Fastening material | 1x cylinder head screw N31A SR16/5-M5X12,1x T-nut groove 8 M5,1x lock washer S5 |
| Gross weight | 0.014kg |
| Height | 18.5mm |
| Length | 45mm |
| Material | PE 66 |
| Material information | Fastening material: Steel, galvanized |
| Profile slot | 8 |
| Required accessories | Sensor Ø 6.5 mm x 30 mm with M8x1 push-in fitting, rated sensing range of S<sub>N</sub> = 4 mm |
| Scope of delivery | Incl. fastening material for assembly on conveyor section |
| Weight | 0.02kg |
| Width | 25mm |
Switch Bracket SH 1/U
M12 sensor Ø 6.5 mm with M8x1 push-in fitting
M12 sensor Ø 6.5 mm with M8x1 push-in fitting
Dimensions: 6.5 x 30 mm Push-in fitting: M8 x 1 Nominal switching distance SN = 4 mm Optical LED function displayCAD data
Scope of delivery
| Incl. fastening material for assembly on conveyor section |
SH 1/U on strut profile 30x30
SH 1/U on ST 1
|
No. |
3842542555 | ||
|
ESD |
yes | ||
|
Cleanroom class |
ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 |
|
Material entry |
PE 6.6, black Fastening material: Steel, galvanized |
