PROXIMITY SWITCH Ø6.5X30 SN=4MM
| Ambient temperature [T] | -20 … 70 °C |
| Conformity | CE,cULus |
| Function display | LED |
| Height | 6.5mm |
| Length | 30mm |
| Material information | Housing: Steel, stainless,Active surface: PA 12 |
| Mechanical installation | Not flush |
| Nominal switching distance [Sn] | 4mm |
| Operating current | 200mA |
| Operating voltage DC | 10 ... 30 |
| Protection class | IP67 |
| Push-in fitting | M8 x 1 |
| Required accessories | Switch bracket SH 1/... |
| Switching frequency | 1500Hz |
| Switching function | Normally open (NO) |
| Switching output | PNP |
| Thread size | 6.5 x 30 mm |
| Weight | 0.01kg |
| Width | 6.5mm |
- Dimensions: 6.5 x 30 mm
- Push-in fitting: M8 x 1
- Nominal switching distance SN = 4 mm
- Optical LED function display
- Fastening by switch brackets
- 1 - Dimensions: 6.5 x 30 mm
- 2 - Push-in fitting: M8 x 1
- 3 - Nominal switching distance SN = 4 mm
- 4 - Optical LED function display
- 5 - Fastening by switch brackets

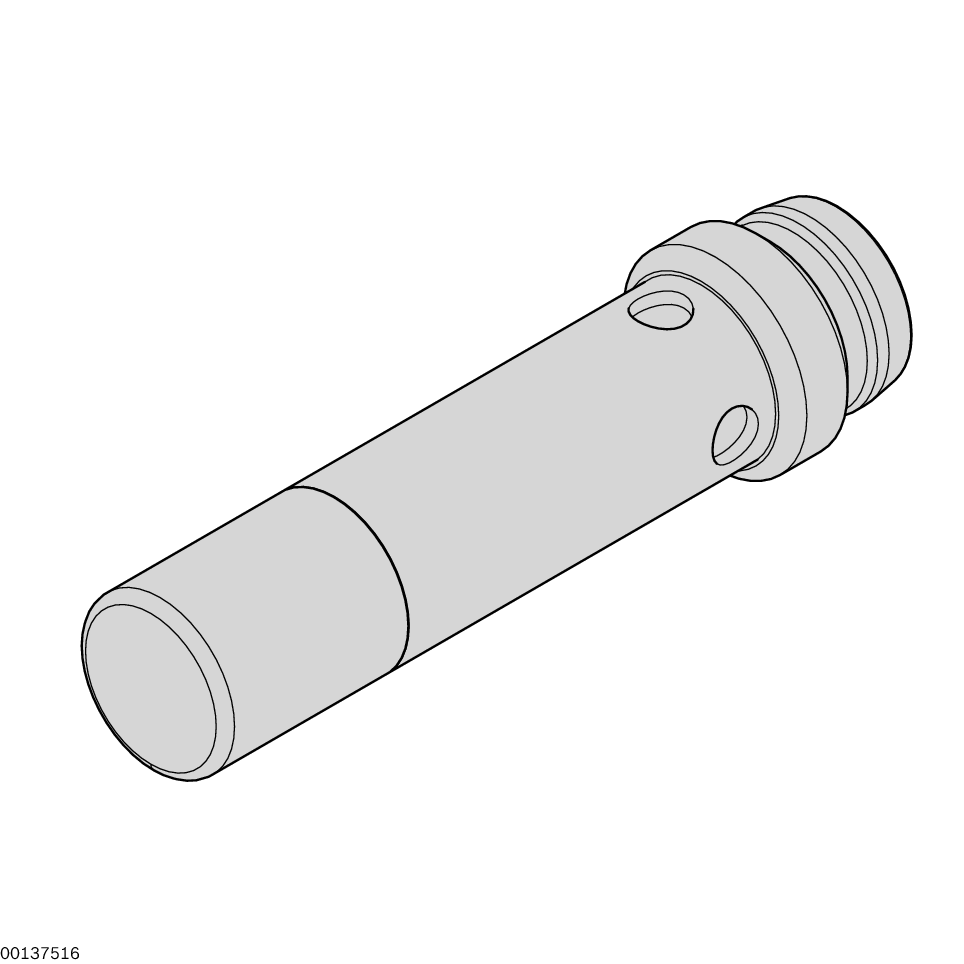

Optical LED function display, Nominal switching distance SN = 4 mm, Push in fitting: M8 x 1, Dimensions: 6.5 x 30 mm, Fastening by switch brackets
Detecting the position of a workpiece pallet via an inductive sensor. Fastening by switch brackets.
WT position inquiry
|
Diameter with push-in fitting |
|
Sensor |
|
|
|
M12 with M12 |
3842501548 |
|||
|
M12 with M8 |
3842549812 |
|||
|
Ø 6.5 mm with M8 |
3842542500 |
|||
|
SH 1/U |
X |
|||
|
SH 1/S |
X |
|||
|
SH 1/M-A |
X |
|||
|
SH 1/M-B |
X |
|||
|
WI/M |
X |
X |
|
No. |
3842542500 | |
|
Dimension |
mm |
Ø6,5 x 30 mm |
|
Protection type |
IP67 | |
|
Material entry |
Housing: Steel; non-rusting Active surface: PA 12 |
|
|
Max. operating temperature |
°C |
-20 bis 70 °C |
|
Push-in fitting |
M8 x 1 | |
|
Rated sensing range |
mm |
4 |
|
Switching frequency |
Hz |
1500 |
|
Operating current |
mA |
200 |
|
Mechanical installation |
Not flush | |
|
Function display |
LED | |
|
Switching output |
PNP | |
|
Switching function |
Normally open (NO) | |
|
Operating voltage |
V DC |
10…30 V DC |
|
Approvals |
CE, cULus |
