Attributes

Conduction resistance [RA]	≤ 10⁶ Ω
Diameter D	125mm
Dimension [h]	158mm
ESD	yes
Fastening material	1x square screw M12x30,1x hexagon nut DIN985 M12
Force F	1100N
Height	160mm
Length	140mm
Material	Thermoplastic rubber
Packaging unit	1
Profile slot	10
Required accessories	Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm),Bearing ring if cover cap with hole is used
Weight	0.84kg
Width	60mm
height	158mm

• Especially gentle on floors
• Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
• Versatile range of uses
• Wheels with excellent running properties
• Mounting of the roller in the profile slot or central hole (accessories required)
• Profile finishing: thread cutting M12 in the case of assembly in central hole
• LR with lock: lock prevents the wheel from rolling or turning
• 1 - Especially gentle on floors
• 2 - Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
• 3 - Versatile range of uses
• 4 - Wheels with excellent running properties
• 5 - Mounting of the roller in the profile slot or central hole (accessories required)
• 6 - Profile finishing: thread cutting M12 in the case of assembly in central hole
• 7 - LR with lock: lock prevents the wheel from rolling or turning

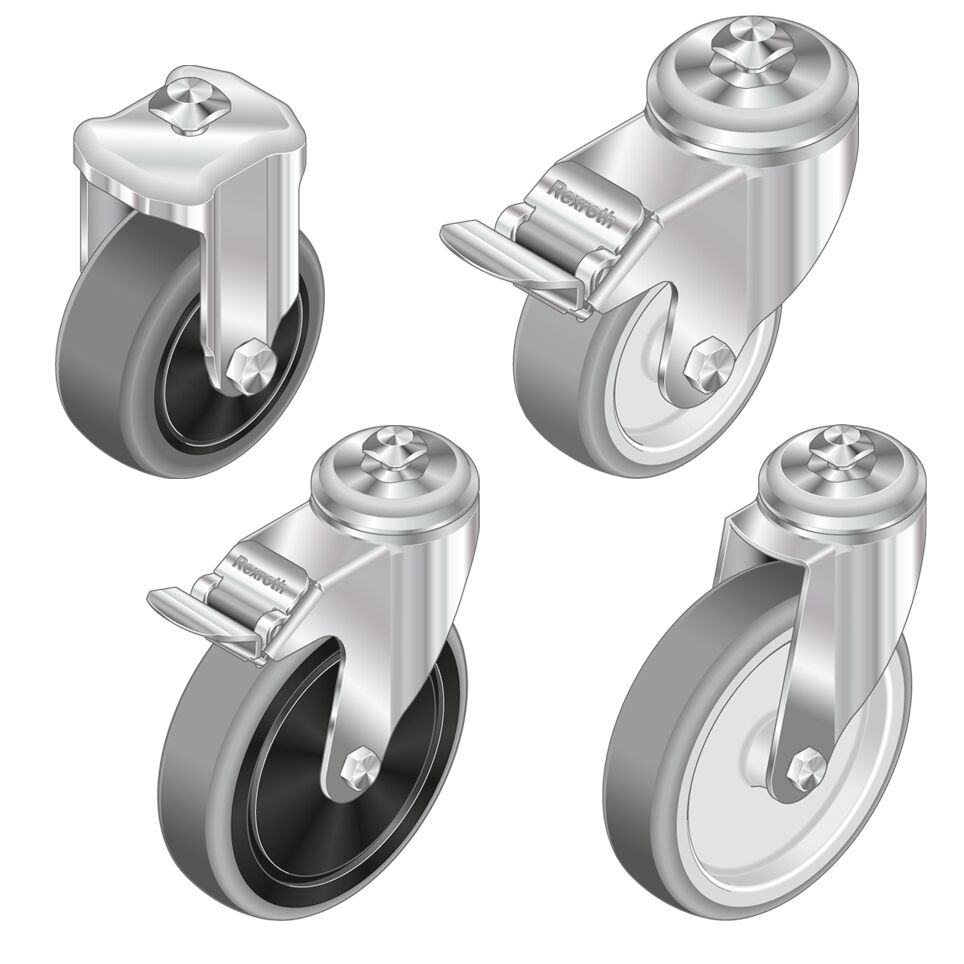

LR with lock, rubber, F1100, ESD
Especially gentle on floors, Suitable for ESD sensitive areas. Conductive material version in accordance with DIN EN 61340 5 1; conduction resistance ≤ 10⁶ Ω, Versatile range of uses, Wheels with excellent running properties, Profile finishing:

• 3D CAD
• Data Sheet

Bearing ring

Bearing ring

For cover caps with hole in the sizes 40x40, 45x45, 50x50 and 60x60 For M12 threads To protect the caps when tightening accessories

CAD data

FS1

D125 LR with lock

D125 LR

Trestle wheel

Wheel selection guide
