Attributes

Area moment of inertia in y-direction [ly]	1.16cm⁴
Area moment of inertia in z-direction [lz]	5.88cm⁴
Condition on delivery	Packaging unit in standard length
Delivery information	Ungreased guide rods; greasing according to assembly instructions <b>3 842 527 226</b>
Delivery unit	10
Length [L2]	3000
Length [L]	3000mm
Mass [m]	1.6kg
Material	Aluminum, anodized
Material information	Guide profile: Aluminum, anodized,Solid shaft VA, induction hardened, polished
Profile slot	10
Profile surface [A]	4.05cm²
Required accessories	Cylinder screw DIN 7984 – M6x20,T-nut M6, 10 mm slot <bold>3 842 530 285</bold>
Weight	51.14kg

• Guide profile LF6S with integrated guide rods
• Installation on MGE strut profiles with 10 mm slot or directly on a flat surface
• 1 - Guide profile LF6S with integrated guide rods
• 2 - Installation on MGE strut profiles with 10 mm slot or directly on a flat surface

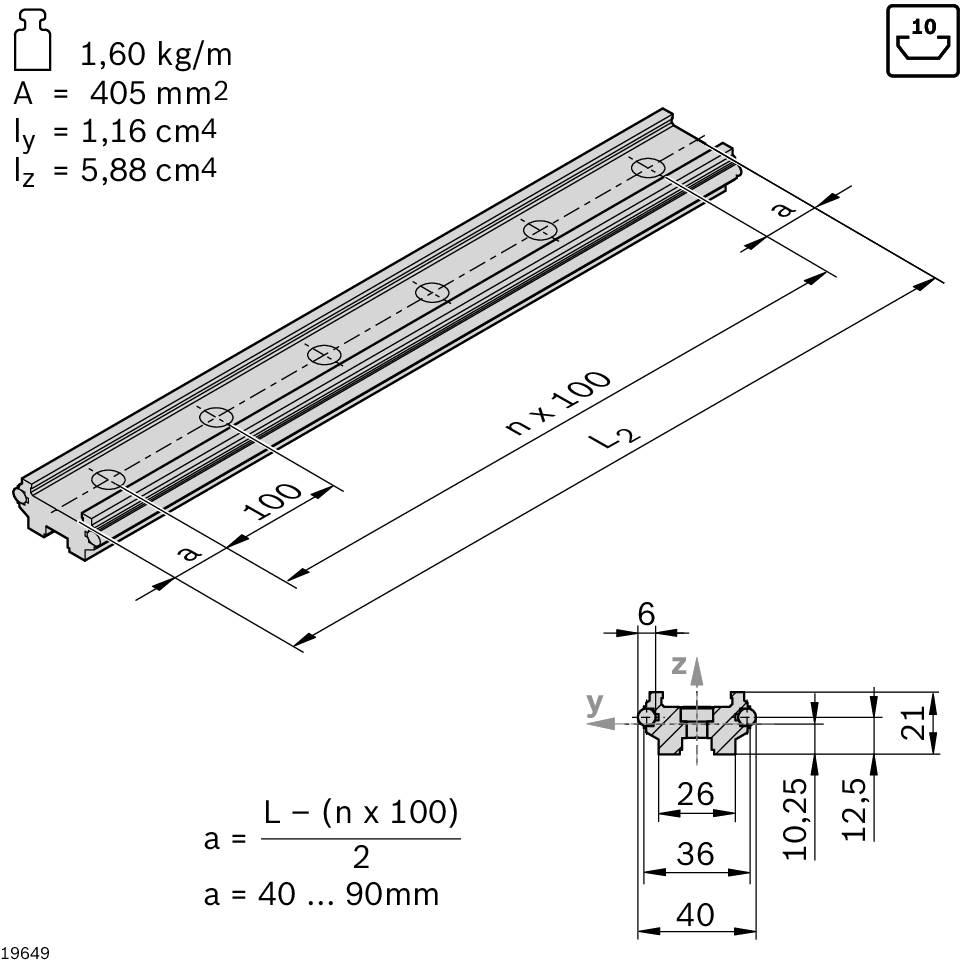

Guide profile LF6S, L3000
Guide profile LF6S with integrated guide rods, Installation on MGE strut profiles with 10 mm slot or directly on a flat surface
