3842538489

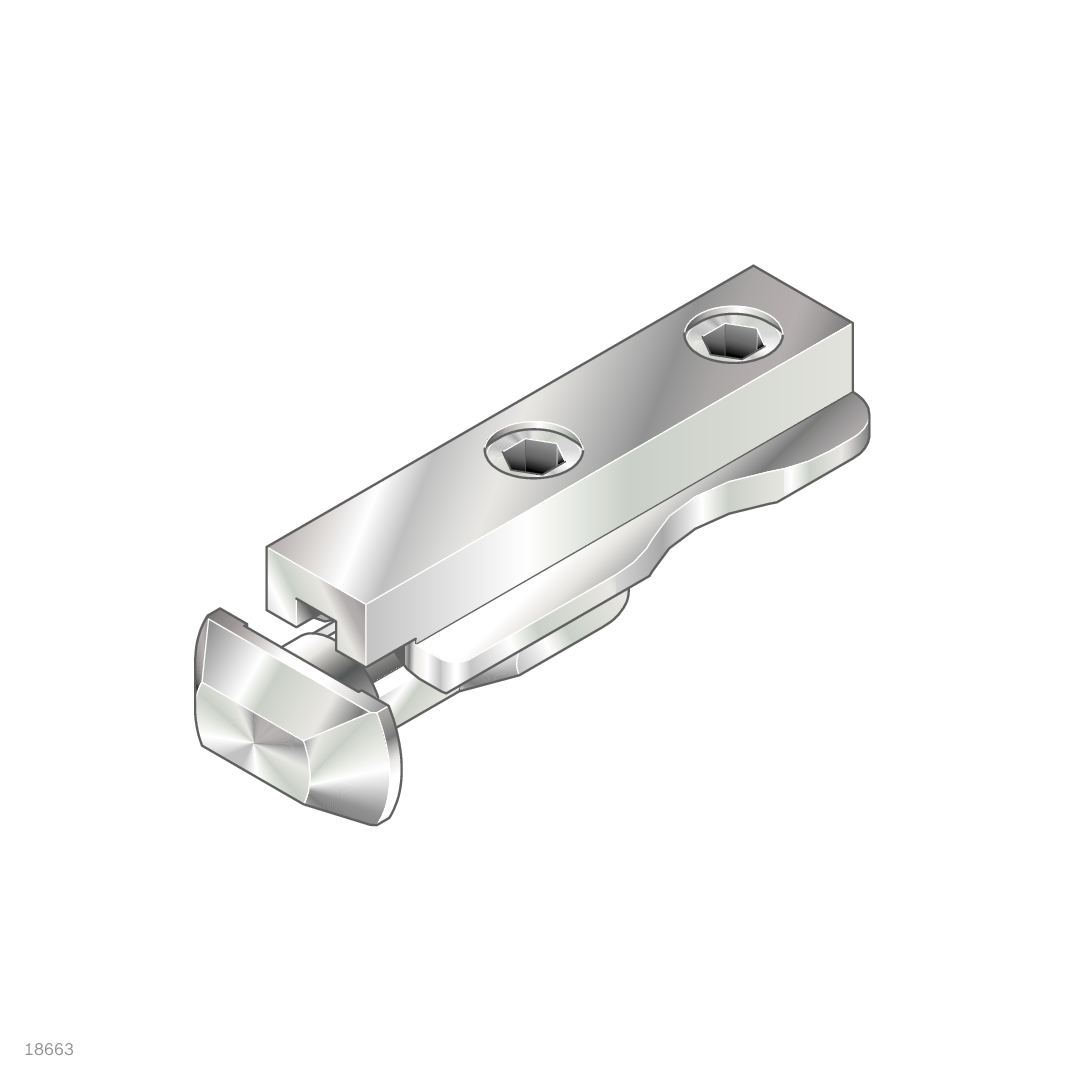

TENSIONING CONNECT SV 8

Tensioning connector for fast assembly, The connector can be moved within the slot, Easily accessible screws, Three slots are left free for mounting surface elements, Profile finishing: not required / Material Number:3842538489

TENSIONING CONNECT SV 8

Material #3842538489

Request Quote

Attributes

Bending moment 1 35Nm
ESD Yes
Gross weight 0.023kg
Height 10mm
Length 46mm
Material Steel, galvanized
Net weight 0.023kg
Packaging unit 10
Profile [P] 30x…
Profile slot 8
Shifting force (90° assembly) 1000N
Torsional moment 15Nm
Weight 0.03kg
Width 15mm
  • Tensioning connector for fast assembly
  • The connector can be moved within the slot
  • Easily accessible screws
  • Three slots are left free for mounting surface elements
  • Profile finishing: not required
  • - Tensioning connector for fast assembly
  • - The connector can be moved within the slot
  • - Easily accessible screws
  • - Three slots are left free for mounting surface elements
  • - Profile finishing: not required
Tensioning connector 8
Tensioning connector for fast assembly, The connector can be moved within the slot, Easily accessible screws, Three slots are left free for mounting surface elements, Profile finishing: not required

Connection elements, selection criteria

P

30x...

1000 N

35 Nm

15 Nm

45x...L

3500 N

110 Nm

30 Nm

40x..., 45x..., 50x..., 90x...

3500 N

110 Nm

30 Nm

60x...

3500 N

195 Nm

60 Nm
