Attributes

Condition on delivery	Packaging unit in standard length
Profile surface [A]	19.3cm²
Productgroup ID	2
Packaging unit	12
Moment of resistance in the y-direction [Wy]	21.4cm³
Area moment of inertia in y-direction [ly]	54.9cm⁴
Moment of resistance in the x-direction [Wx]	31.9cm³
Mass [m]	5.3kg
Length [L]	6070mm
Area moment of inertia in x-direction [lx]	156.8cm⁴
Material	Aluminum, anodized
Weight	390kg
Required accessories	FP 2/H-St Guide Profile,GP 2/H-St Glide Profile,GP 2/H-Kst Glide Profile,ST 2/C-H Adapter Plate Kit,Cover Rail for Cable Duct,Blocking Bolts
Profile slot	10

• For conveyor unit self-assembly
• In especially sturdy design for particularly heavy-duty sections
• For use in conjunction with all AS 2/C-... drive modules, FP 2/H-... guide profiles and GP 2/H-... glide profiles
• Longitudinal grooves for easy mounting
• For conveyor units with a height to conveying level of 100 mm
• For heavy-duty conveyor unit assembly
• Profile width: 50 mm

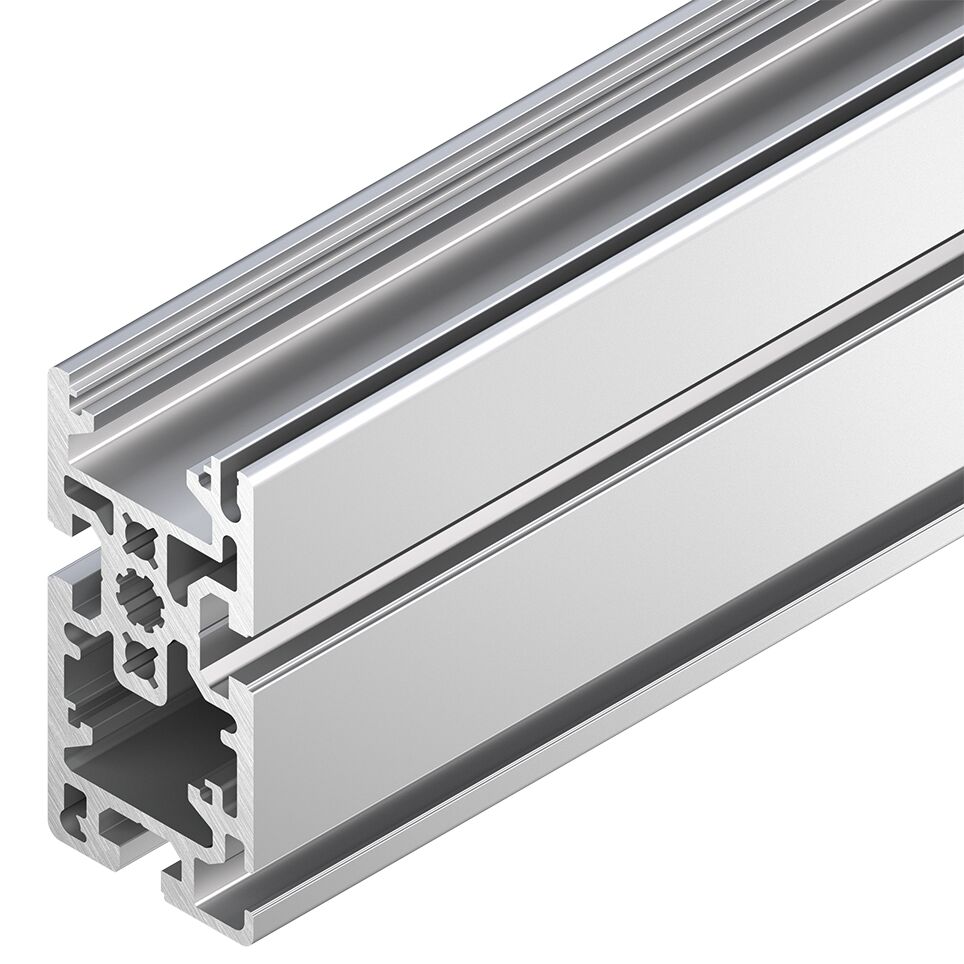

SP 2/C-H, L6000 section profile
Longitudinal grooves for easy mounting, For conveyor unit self assembly, Profile width: 50 mm, For conveyor units with a height to conveying level of 100 mm, In especially sturdy design for particularly heavy duty sections, For use in conjunction with all

• 3D CAD
• Data Sheet

SP 2/C-H Section Profile

The section profile is used to set up conveyor units with the flat top chain conveyor medium.

No.			3842536793
Moment of inertia	Ix	cm⁴	156.8
	Iy	cm⁴	54.9
Moment of resistance	Wx	cm³	31.9
	Wy	cm³	21.4
Material entry			Aluminum, anodized
Mass	m	kg	5.3
Length	l	mm	6,070
