Attributes

Condition on delivery	Packaging unit in standard length
Profile surface [A]	19cm²
Productgroup ID	2
Moment of resistance in the y-direction [Wy]	19.8cm³
Area moment of inertia in y-direction [ly]	51.3cm⁴
Moment of resistance in the x-direction [Wx]	31.6cm³
Delivery unit	12
Mass [m]	5.2kg
Length [L]	6070mm
Area moment of inertia in x-direction [lx]	155.6cm⁴
Material	Aluminum, anodized
Weight	400kg
Recommended accessories	FP 2/H-St Guide Profile,GP 2/H-Kst Glide Profile,GP 2/H-St Glide Profile,Cover Rail for Cable Duct
Color	Natural
Profile slot	10

• For conveyor unit self-assembly for higher section loads in the 100 mm construction height
• For use in conjunction with all AS 2/R-... drive modules, UM 2/R-... return units, FP 2/H- guide profiles, GP 2/H-... glide profiles and SP 2/R section profiles
• Longitudinal grooves for easy mounting
• Extruded aluminum profile with an especially sturdy design
• Integrated cable duct at the profile base

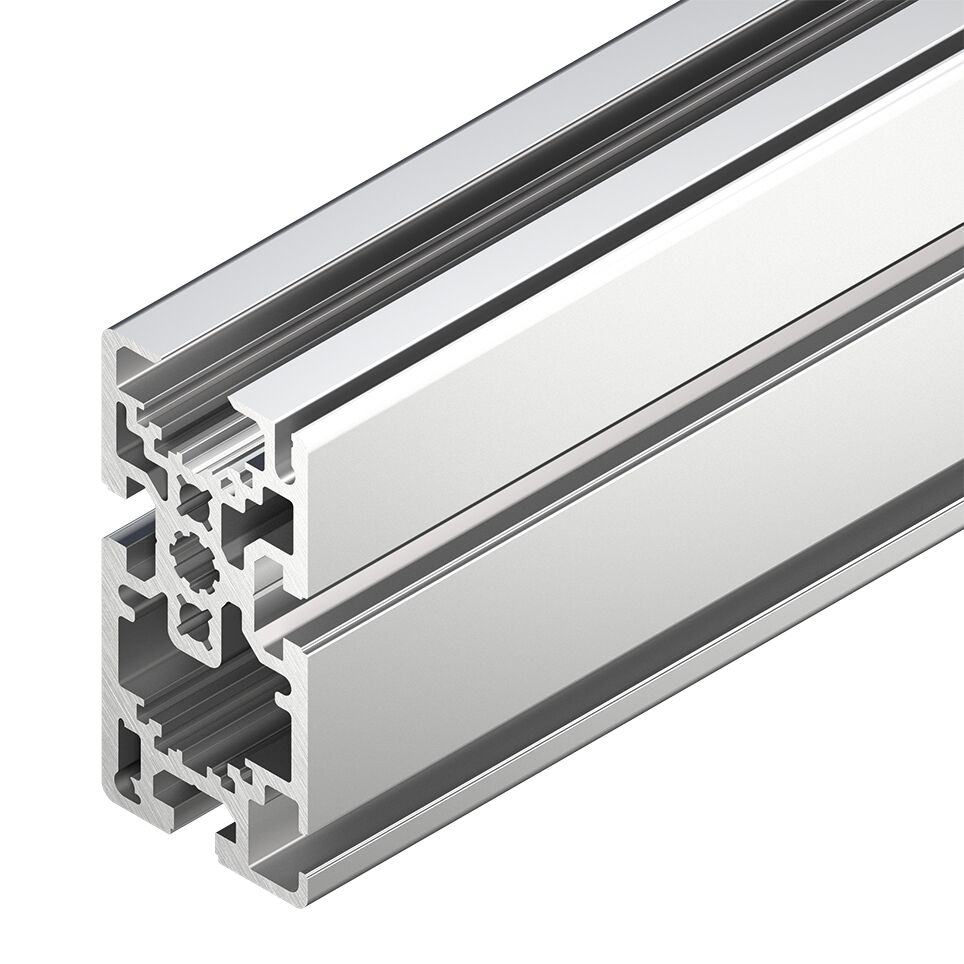

Section Profile SP 2/R-H
Longitudinal grooves for easy mounting, For conveyor unit self assembly for higher section loads in the 100 mm construction height, For use in conjunction with all AS 2/R ... drive modules, UM 2/R ... return units, FP 2/H guide profiles, GP 2/H ... glide

• 3D CAD
• Data Sheet

Section Profile SP 2/R-H

The section profile is used for setting up conveyor units with a construction height of 100 mm and the accumulation roller chain and guide profile conveyor media.

No.			3842536792
Moment of inertia	Ix	cm⁴	155.6
	Iy	cm⁴	51.3
Moment of resistance	Wx	cm³	31.6
	Wy	cm³	19.8
Material entry			Aluminum, natural-colored, anodized
Mass	m	kg	5.2
Length	l	mm	6,070
