Attributes

Bendable	yes
Diameter D	11mm
Dimension [a]	18mm
ESD	yes
Gross weight	38.5g
Height	50mm
Length	105mm
Material	Steel
Material information	Tie rod: Steel, stainless,Socket: Steel, galvanized
Packaging unit	10
Profile [P]	8 / 8
Profile slot	8
Required accessories	Drilling jig,Cap
Weight	0.04kg
Width	95mm

• For end-to-end connecting of two profiles with equal cross-sections and at any angle, e.g. for frames
• Profile finishing: Blind hole DB11, DB17 or through-hole D11, D17; miter cut
• 1 - For end-to-end connecting of two profiles with equal cross-sections and at any angle, e.g. for frames
• 2 - Profile finishing: Blind hole DB11, DB17 or through-hole D11, D17; miter cut

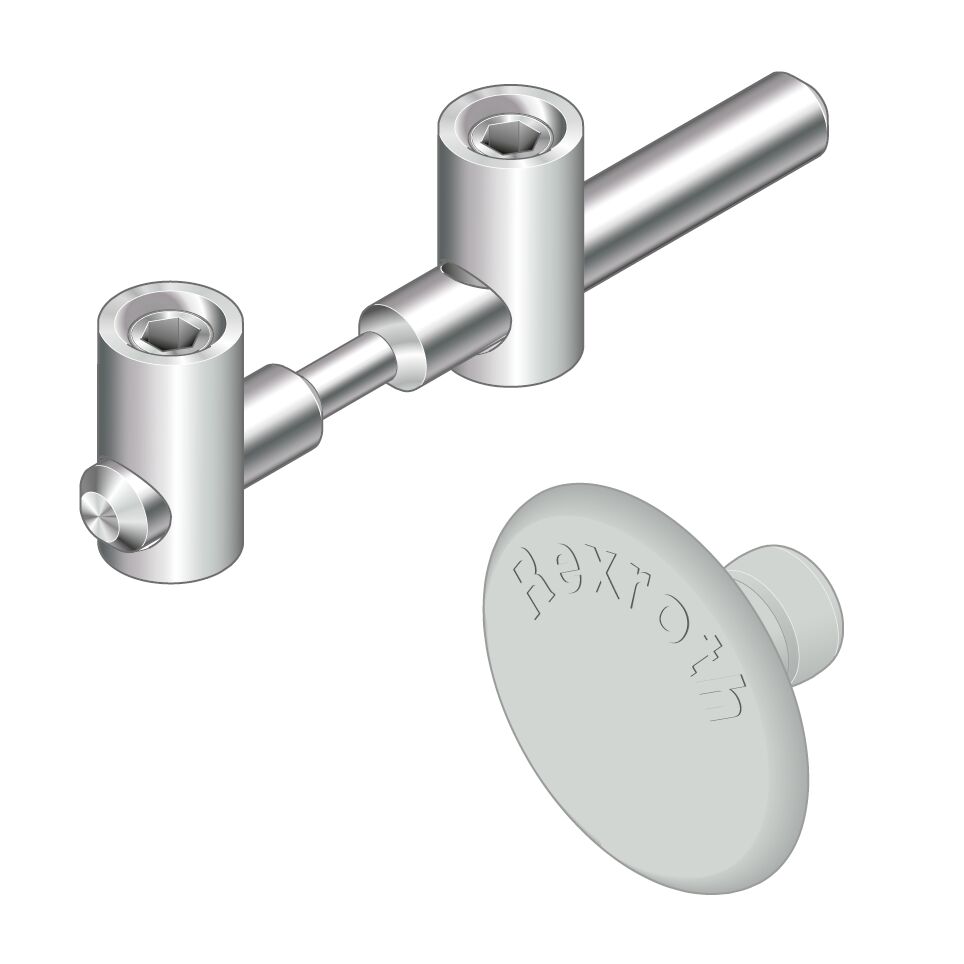

Quick connector, bendable – end-to-end N8
For end to end connecting of two profiles with equal cross sections and at any angle, e.g. for frames, Profile finishing: Blind hole DB11, DB17 or through hole D11, D17; miter cut

• 3D CAD
• Data Sheet

Required accessories
Drilling jig
Cap

Quick connector, 6 mm slot, 0°, 90° cover cap

Quick connector, 6 mm slot, 0°, 90° cover cap

For the right-angled connecting of two profiles Very good accessibility for tools during assembly  Quick connector for 6 mm slot with square head; can be used as a 0° or 90° connector Profile finishing: Blind hole DB8 or through-hole D8

CAD data

Quick connector, bendable – end-to-end

Connection elements, selection criteria

30x30	24 Nm
40x40L	100 Nm
45x45L	110 Nm
45x45	145 Nm
50x50L	160 Nm
