Attributes

ESD	Yes
Fastening material	2x headless setscrew ISO 4027 M4x6
Gross weight	3.5g
Height	10mm
Length	70mm
Material	Sheet steel, galvanized
Material information	Inner bracket: Sheet steel, galvanized,Fastening material: Steel, galvanized
Net weight	3.5g
Packaging unit	10
Profile slot	6
Scope of delivery	Incl. fastening material
Weight	0.01kg
Width	60mm

• For elegant, easy-to-assemble profile connections
• Especially suitable for constructing frames for doors, protective grilles, or partition walls
• The inner bracket, 6 mm slot, can also be used as an inner bracket R, 6 mm slot
• Profile finishing: not required
• 1 - For elegant, easy-to-assemble profile connections
• 2 - Especially suitable for constructing frames for doors, protective grilles, or partition walls
• 3 - The inner bracket, 6 mm slot, can also be used as an inner bracket R, 6 mm slot
• 4 - Profile finishing: not required

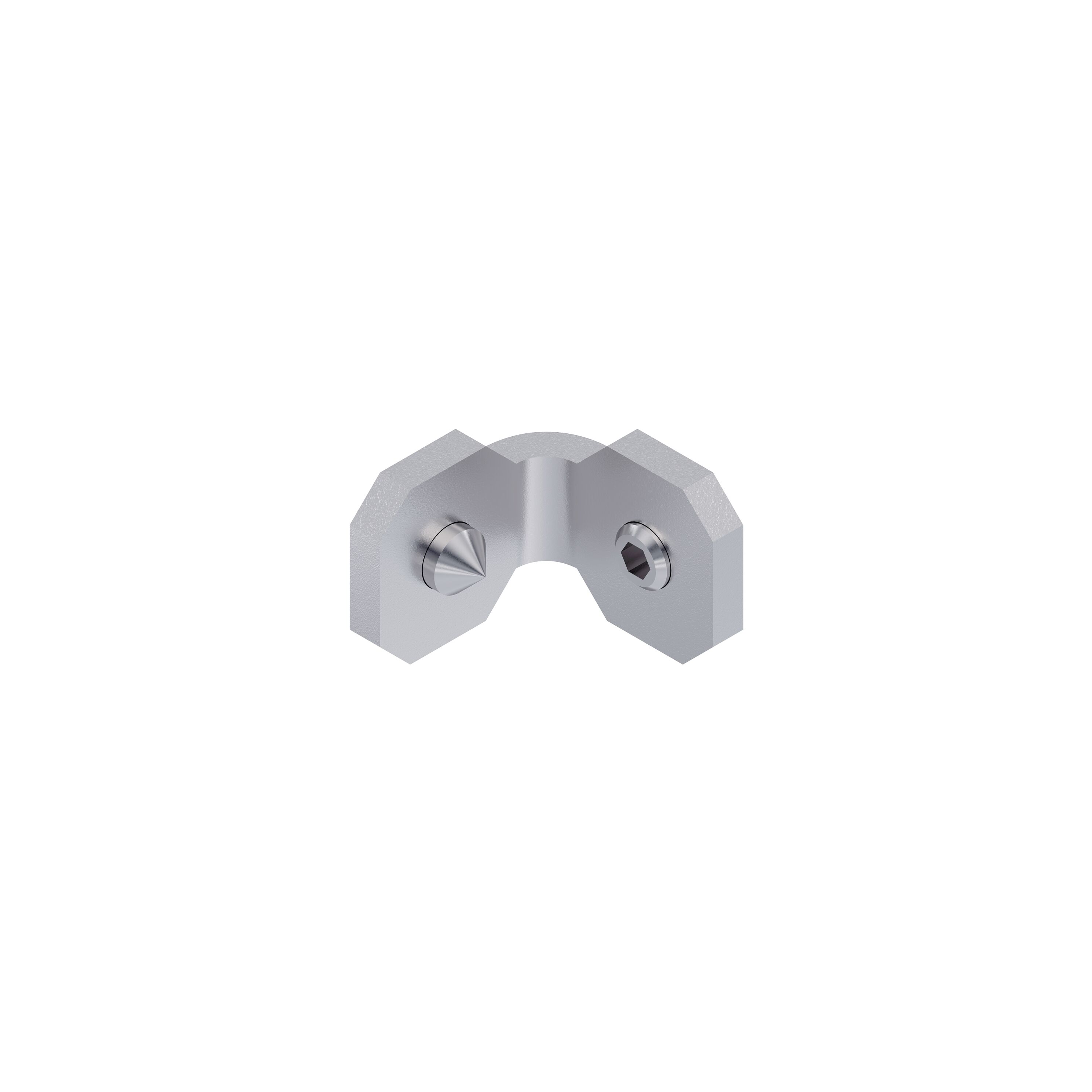

Inner bracket, slot 6/6
Profile finishing: not required, For elegant, easy to assemble profile connections, Especially suitable for constructing frames for doors, protective grilles, or partition walls, The inner bracket, 6 mm slot, can also be used as an inner bracket R, 6 mm s

• 3D CAD
• Data Sheet

FS1	FS2	FS3

Inner bracket, slot 6/6

Inner bracket, slot 8/8

Inner bracket, slot 10/10

Connection elements, selection criteria

Nut
8 / 8	2200 N	50 Nm
10 / 10	2800 N	100 Nm
