DAMPER DA1/B
| Clean room classification | ISO class 7 |
| Delivery information | Fully assembled |
| Dry room | <lt/>1 |
| Height | 50mm |
| Length | 150mm |
| Mass [m] | 0.5kg |
| Nominal speed [vN] | 6 m/min,9 m/min,12 m/min,15 m/min,18 m/min |
| Pneumatic straight connection [Ø] | 4mm |
| Required accessories | Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min |
| Scope of delivery | Incl. fastening material for assembly on conveyor section,Pneumatic straight fitting (pushlock type) |
| Weight | 0.3kg |
| Width | 150mm |
| Workpiece pallet weight [mG] | 1010987 |
| required compressed air connection [pmax] | 6bar |
| required compressed air connection [pmin] | 4bar |
- Pneumatic damper
- Degree of damping adjustable
- Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)
- 1 - Pneumatic damper
- 2 - Degree of damping adjustable
- 3 - Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)

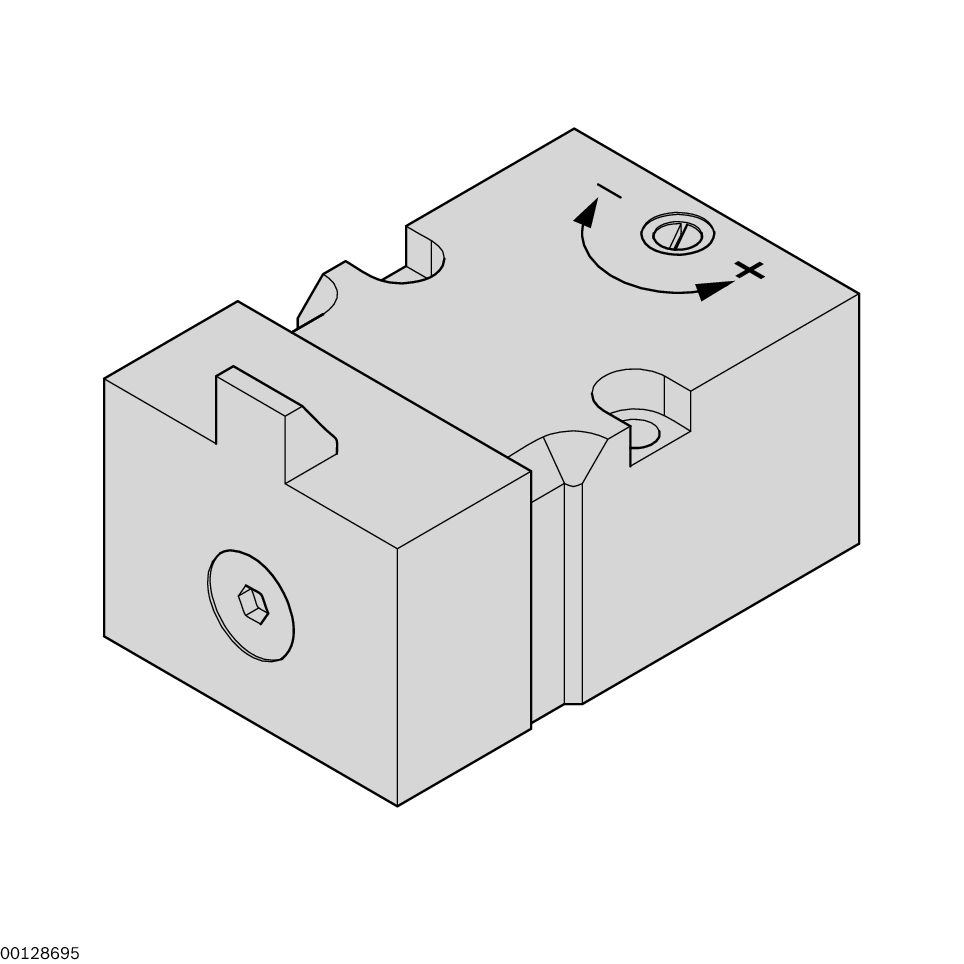

Pneumatic damper, Degree of damping adjustable, Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)
Damper DA 1/B
Dampers DA 1/B are used to cushion the impact of workpiece pallets when they are moved into the lift and positioning unit HP 1/P.
Suitable for attachment to HP 1/P
|
No. |
3842535360 | ||
|
Max. total weight of workpiece pallet |
mG |
kg |
10 |
|
Cleanroom class |
ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 |
|
Mass |
m |
kg |
0.5 |
|
Required compressed air connection |
p |
bar |
4 ... 6 bar |
|
Pneumatic push-in fitting |
Ø |
mm |
4 |
Permissible accumulation load
|
mG |
vN |
|
kg |
m/min |
|
10 10 9 8 7 |
6 9 12 15 18 |
