Attributes

Condition on delivery	Packaging unit in standard length
Profile surface [A]	15cm²
Productgroup ID	2
Moment of resistance in the y-direction [Wy]	16.4cm³
Area moment of inertia in y-direction [ly]	37cm⁴
Moment of resistance in the x-direction [Wx]	24.6cm³
Delivery unit	16
Mass [m]	4kg
Length [L]	6070mm
Area moment of inertia in x-direction [lx]	128cm⁴
Material	Aluminum, anodized
Weight	413kg
Required accessories	Slide profile GP 2,Guide profile FP 2,Blocking Bolts
Profile slot	10

• For conveyor unit self-assembly for profile construction heights of 100 mm
• For use in conjunction with all AS 2/C-... drive modules, UM 2/C-... return units, FP 2 guide profiles and GP 2 glide profiles
• Longitudinal grooves for easy mounting
• For conveyor units with a height to conveying level of 100 mm

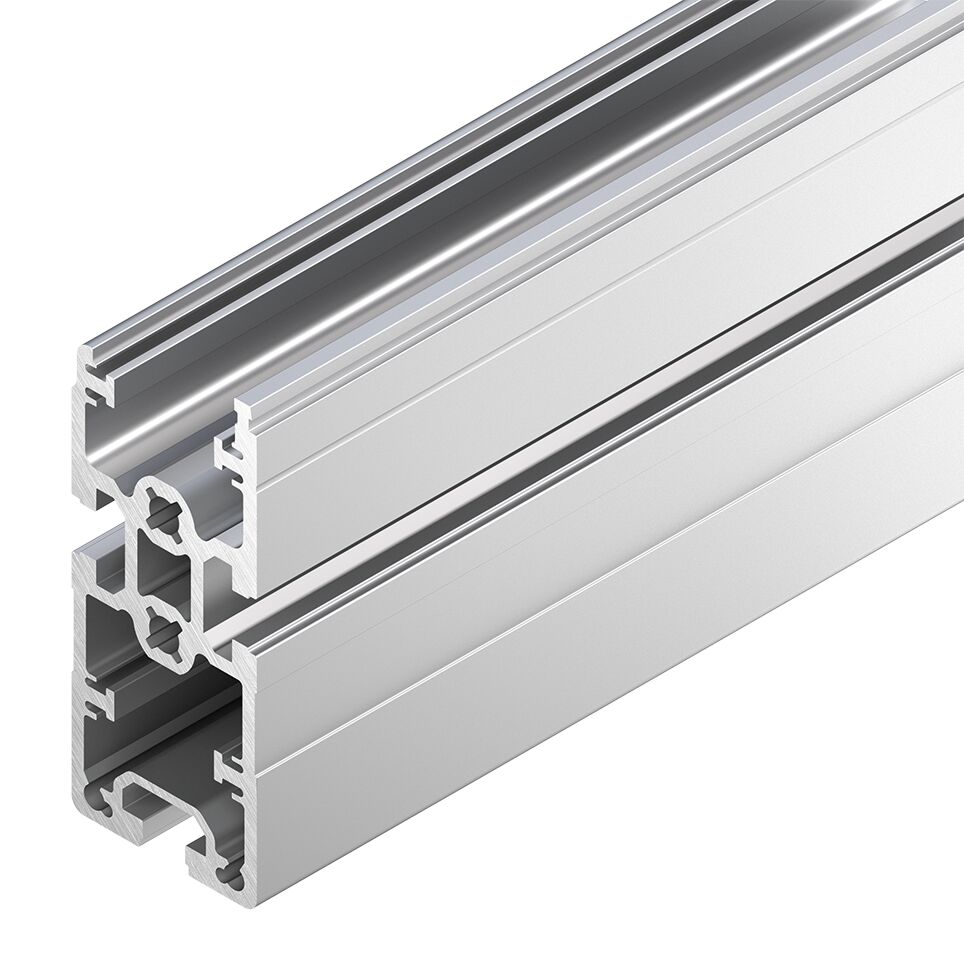

SP 2/B-100, L6070 section profile
Longitudinal grooves for easy mounting, For conveyor unit self assembly for profile construction heights of 100 mm, For use in conjunction with all AS 2/C ... drive modules, UM 2/C ... return units, FP 2 guide profiles and GP 2 glide profiles, For conveyo

• 3D CAD
• Data Sheet

SP 2/C-100 Section Profile

The section profile is used to set up conveyor units with the flat top chain conveyor medium. Additional blocking bolts prevent the glide profiles from moving in a longitudinal direction.

No.			3842532609
Moment of inertia	Ix	cm⁴	128
	Iy	cm⁴	37
Moment of resistance	Wx	cm³	24.6
	Wy	cm³	16.4
Material entry			Anodized aluminum
Mass	m	kg	4
Length	l	mm	6,070
