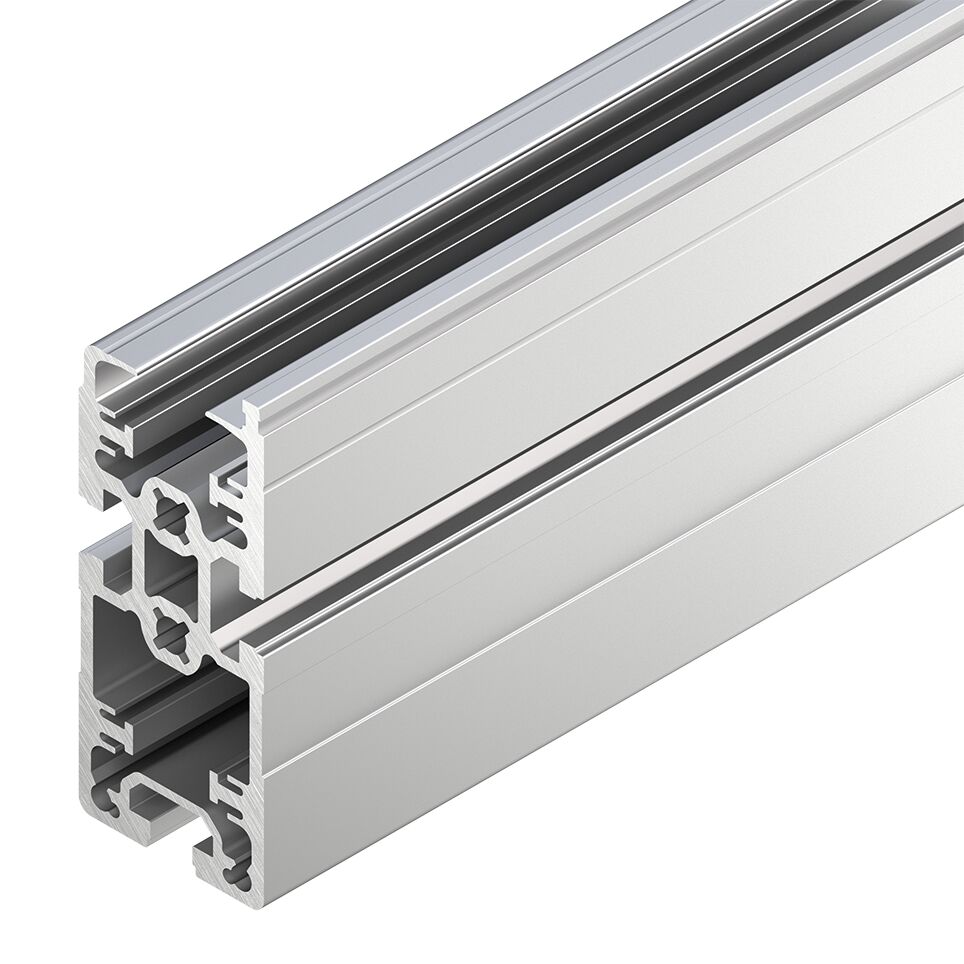

CONVEYOR SECTION PROFILE SP 2/R-100 16X6070MM

Longitudinal grooves for easy mounting, For conveyor unit self-assembly, For use in conjunction with all AS 2/R-... drive modules, UM 2/R-... return units, FP 2 guide profiles and GP 2 glide profiles / Material Number:3842529931

CONVEYOR SECTION PROFILE SP 2/R-100 16X6070MM

Material #3842529931

Request Quote

Attributes

Condition on delivery Packaging unit in standard length
Profile surface [A] 16.4cm²
Productgroup ID 2
Moment of resistance in the y-direction [Wy] 17.8cm³
Area moment of inertia in y-direction [ly] 40.1cm⁴
Moment of resistance in the x-direction [Wx] 27.7cm³
Delivery unit 16
Mass [m] 4.4kg
Length [L] 6070mm
Area moment of inertia in x-direction [lx] 144cm⁴
Material Aluminum, anodized
Weight 455kg
Recommended accessories PA guide and slide profile,Guide and Slide Profile ST
Color Natural
Profile slot 10
  • For conveyor unit self-assembly
  • For use in conjunction with all AS 2/R-... drive modules, UM 2/R-... return units, FP 2 guide profiles and GP 2 glide profiles
  • Longitudinal grooves for easy mounting
Section Profile SP 2/R-100
Longitudinal grooves for easy mounting, For conveyor unit self assembly, For use in conjunction with all AS 2/R ... drive modules, UM 2/R ... return units, FP 2 guide profiles and GP 2 glide profiles

Section Profile SP 2/R-100

The section profile is used to set up conveyor units with the accumulation roller chain conveyor medium.

No.

3842529931

Moment of inertia

Ix

cm⁴

144

Iy

cm⁴

40.1

Moment of resistance

Wx

cm³

27.7

Wy

cm³

17.8

Material entry

Aluminum, natural-colored, anodized

Mass

m

kg

4.4

Length

l

mm

6,070

Request Quote
