T-SLOT STONE 10 M8 ES
| Dimension h | 5.3mm |
| Dimension h1 | 1.5mm |
| Gross weight | 7.27g |
| Height | 30mm |
| Length | 130mm |
| Length [l] | 20mm |
| Material | Steel, galvanized |
| Max. groove retention [Fmax] | 18000N |
| Min. groove retention [Fmin] | 8000N |
| Packaging unit | 100 |
| Profile slot | 10 |
| Required accessories | Spring |
| Swivel-in | yes |
| Thread size | M8 |
| Weight | 0.01kg |
| Width | 105mm |
- Swivel-in sliding block profile for self-assembly of individual fastening elements
- Can be inserted directly at the assembly point for easy assembly
- Profile finishing: not required
- 1 - Swivel-in sliding block profile for self-assembly of individual fastening elements
- 2 - Can be inserted directly at the assembly point for easy assembly
- 3 - Profile finishing: not required
Swivel-in sliding block groove 10 steel, zinc-plated M8
Swivel in sliding block profile for self assembly of individual fastening elements, Profile finishing: not required, Can be inserted directly at the assembly point for easy assembly
Swivel in sliding block profile for self assembly of individual fastening elements, Profile finishing: not required, Can be inserted directly at the assembly point for easy assembly
| Required accessories | ||
| Spring |

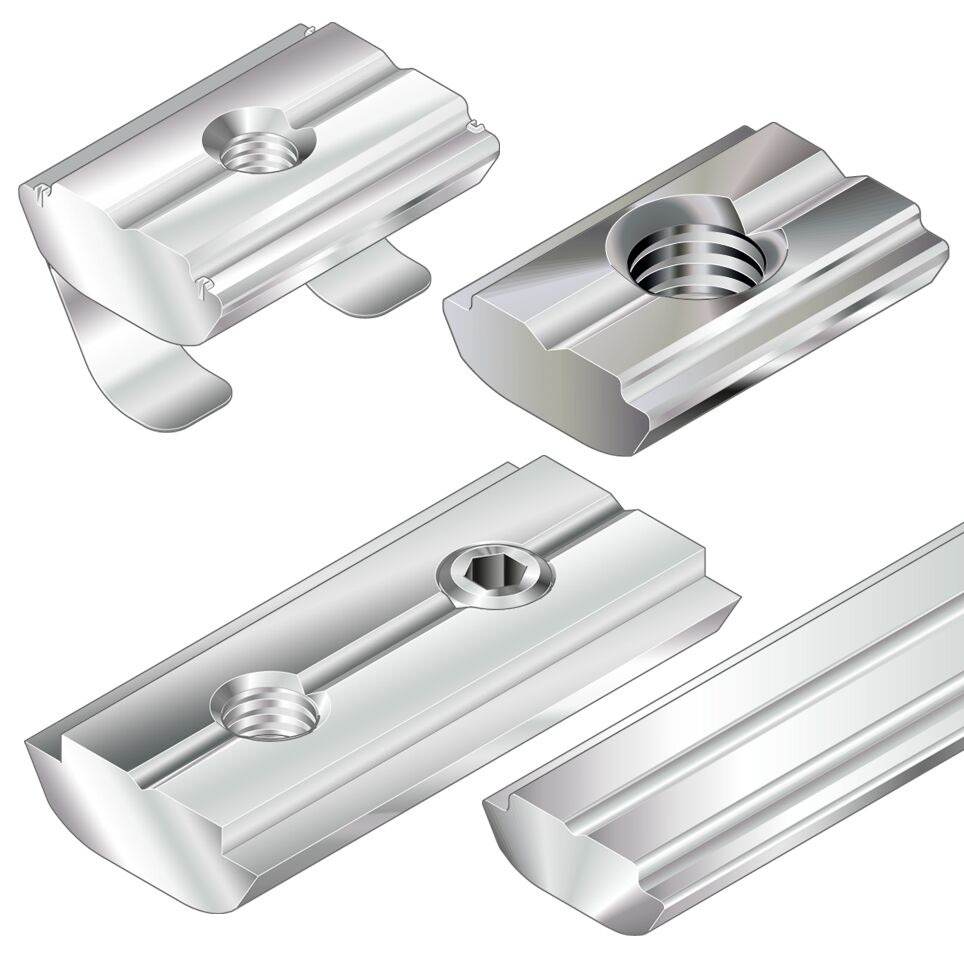

Swivel-in sliding block profile
Sliding block, swivel-in
Swivel-in sliding block with spring
Sliding block, swivel-in, with headless setscrew
