Attributes

Admissible WT contact area weight [FGL]	3kg
Clean room classification	ISO class 7
Delivery information	Fully assembled
Dimension [a]	160mm
Dimension [c]	59mm
Dimension b	118
Dry room	<lt/>1
ESD	Yes
Flatness	0.5mm
Gross weight	0.23kg
Height	17mm
Length	160mm
Material	PA 66
Material information	Wear pad: Polyamide (PA 66)
Net weight	0.23kg
Recommended accessories	Damping Elements,Switching element,Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT
Scope of delivery	Workpiece pallet, complete
Weight	0.23kg
Weight workpiece pallet [mWT]	0.225kg
Width	160mm
Workpiece pallet length [lWT]	160
Workpiece pallet width [bWT]	160

• 3 standard sizes
• Double-sided prism slot for positioning in the positioning unit PE 1/P
• Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200
• Replaceable outer soles
• 1 - 3 standard sizes
• 2 - Double-sided prism slot for positioning in the positioning unit PE 1/P
• 3 - Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200
• 4 - Replaceable outer soles

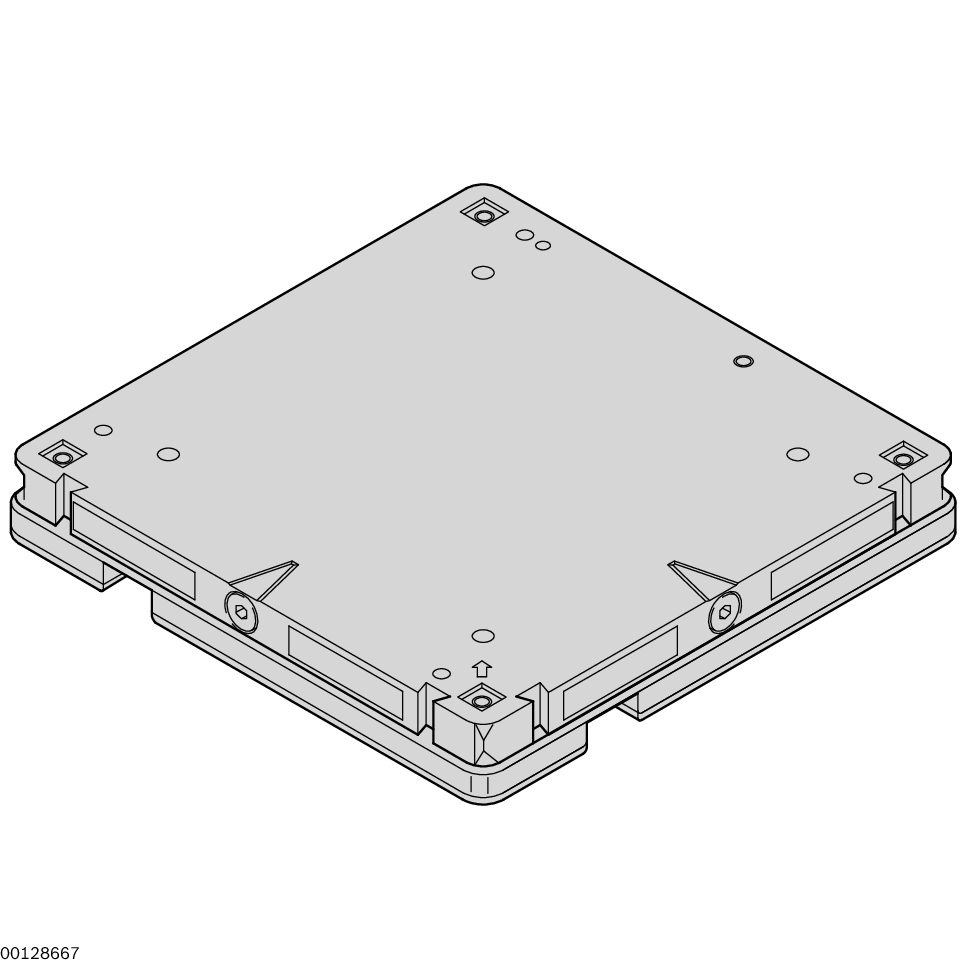

Workpiece pallet WT 1/K 160x160
Replaceable outer soles, 3 standard sizes, Double sided prism slot for positioning in the positioning unit PE 1/P, Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200

• 3D CAD
• Data Sheet

Optional accessories:

Damping element Switching element Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT, see RFID systems catalog

RFID systems

RFID systems

Damping Elements

Damping Elements

CAD data

Switching element

Switching element

CAD data

Scope of delivery:

Workpiece pallet, complete

Condition on delivery:

Assembled

Workpiece Pallet WT 1/K

No.	Width of workpiece pallet	Length of workpiece pallet	Flatness	Masse Werkstückträger 1)	Dimension	Dimension	Dimension
	bWT	lWT	▢	mWT	a	b	c
	mm	mm	mm	kg	mm	mm	mm
3842527122	80	80	0.5	0.075	80	38	19
3842527123	120	120	0.5	0.135	120	78	39
3842527124	160	160	0.5	0.225	160	118	59

1)	Workpiece pallet mass

Workpiece pallet underside WT 1/K, WT 1/S

The WT 1/K is a particularly lightweight workpiece pallet made of plastic. There is a higher workpiece pallet load (workpiece + holder) than for other workpiece pallets due to the low workpiece pallet empty weight with a permissible total load of max. 3 kg.

The WT 1/K is especially suitable for positioning tasks in conjunction with the PE 1/P position unit. Use with the HP 1/P lift position unit is not possible.

No.			3842527122	3842527123	3842527124
ESD			yes	yes	yes
Cleanroom class			ISO class 7	ISO class 7	ISO class 7
Dry room	r.F.	%	<1	<1	<1
Material entry			Full plastic version made of polyamide (PA 66) Wear pad: Polyamide (PA 66)	Full plastic version made of polyamide (PA 66) Wear pad: Polyamide (PA 66)	Full plastic version made of polyamide (PA 66) Wear pad: Polyamide (PA 66)
Length of workpiece pallet		mm	80	120	160

	bWT	lWT	mWT 1)	FGL 2)	▢
	mm	mm	kg	kg	mm
Workpiece pallet WT 1/K 80x80	80	80	0.075	1.5	0.5
Workpiece pallet WT 1/K 120x120	120	120	0.135	2.2
Workpiece pallet WT 1/K 160x160	160	160	0.225	3

1)	Workpiece pallet mass
2)	Permissible workpiece pallet weight
