Attributes

Fastening material	4x flattened round head screw ISO7380-M8x40,4x bolt D17x18.2-D8.2,6x bolt D17x18.2-M8,4x cover cap D17x44.6 ESD,2x spring element D20x24x19-M8,2x hexagon nut ISO4035-M8-04
Height	140mm
Length	190mm
Material information	Drive head: Aluminum, anodized,Hollow shaft: Steel, galvanized,Cover caps: PA, black
Packaging unit	1
Profile slot	10
Scope of delivery	incl. fastening material (FS),Caps
Weight	4.41kg
Width	165mm

• Drive head for transferring drive torque to a toothed belt
• For direct mounting of a motor or (in conjunction with a center shaft) for mounting a hollow shaft gear or a coupling
• Mounted directly on profile by using longitudinal end connector (connector included in scope of delivery)
• Profile finishing: LF blind hole drilling for longitudinal end connector
• 1 - Drive head for transferring drive torque to a toothed belt
• 2 - For direct mounting of a motor or (in conjunction with a center shaft) for mounting a hollow shaft gear or a coupling
• 3 - Mounted directly on profile by using longitudinal end connector (connector included in scope of delivery)
• 4 - Profile finishing: LF blind hole drilling for longitudinal end connector

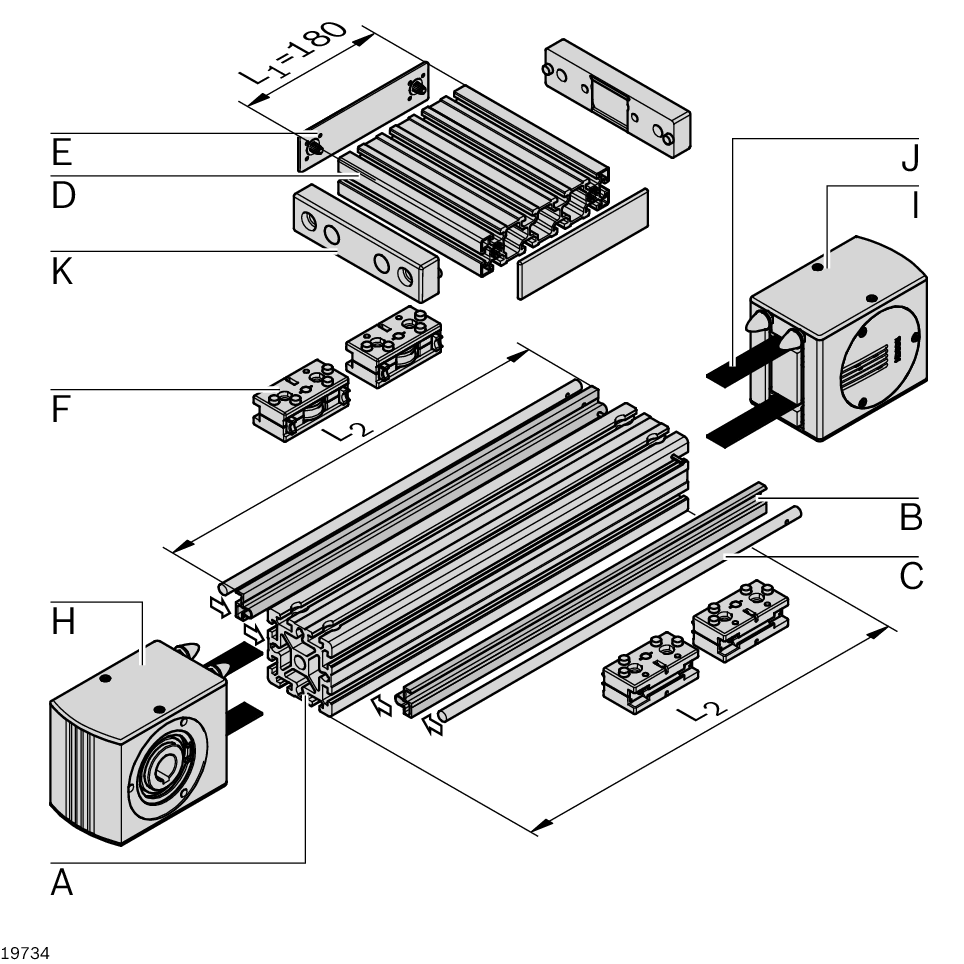

Drive head LF12C
Profile finishing: LF blind hole drilling for longitudinal end connector, Drive head for transferring drive torque to a toothed belt, For direct mounting of a motor or (in conjunction with a center shaft) for mounting a hollow shaft gear or a coupling, Mo
