Attributes

Clean room classification	ISO class 7
Delivery information	Fully assembled
Dry room	<lt/>1
Gross weight	0.285kg
Height	50mm
Length	105mm
Nominal speed [vN]	6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Opening/shutting times	1 = Close,2 = Open at 4 bar,l = Hose length
Pneumatic straight connection [Ø]	4mm
Recommended accessories	Switch Bracket
Required accessories	Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min
Scope of delivery	Incl. fastening material for assembly on conveyor section,Pneumatic connection (pushlock type, ∅ 4 mm)
Section load in accumulation operation	80kg
Weight	0.29kg
Width	95mm
Workpiece pallet weight [mG]	8080604040
required compressed air connection [pmax]	6bar
required compressed air connection [pmin]	4bar

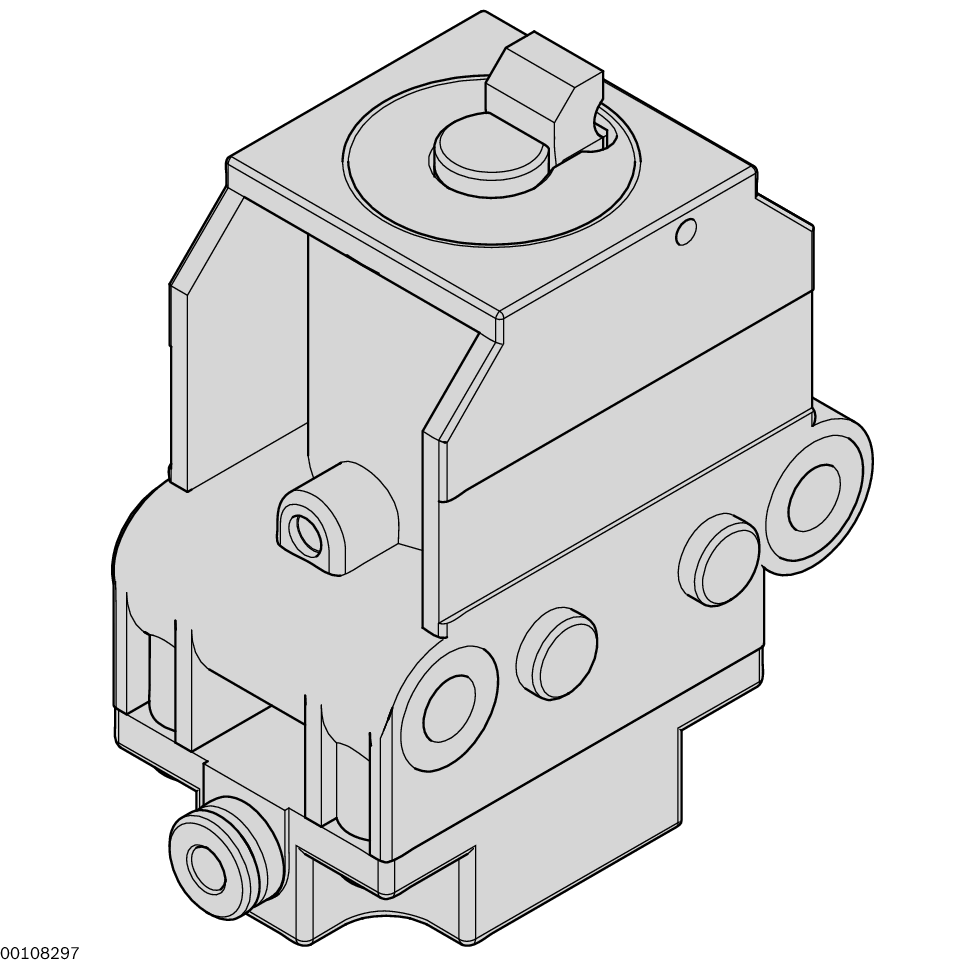

• Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.
• Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface.
• Permissible total load of all workpiece pallets in the accumulation: 80 kg (with conveying speed 9 m/min)
• 1 - Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.
• 2 - Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface.
• 3 - Permissible total load of all workpiece pallets in the accumulation: 80 kg (with conveying speed 9 m/min)

Stop Gate VE 1
Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped., Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface., Permissible total load of all wor

• 3D CAD
• Data Sheet

Switch Bracket

Switch Bracket

Opening and shutting times

* = open

1)	Close
2)	Open 4 bar
3)	L = hose length

Stop Gate VE 1

The stop gates are used to stop workpiece pallets. Actuation is performed pneumatically. In an unpressurized state, the stop gate is held in the blocking position by a spring and thus contributes significantly to production safety.

Stopping one or more accumulating workpiece pallets at the defined workpiece pallet stop surface.

Can be fastened to the section profile inside on the right (A) or on the left (B).

No.			3842522400
Max. section load in accumulation operation		kg	80
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
Required compressed air connection	p	bar	4 ... 6 bar
Pneumatic push-in fitting	Ø	mm	4

Permissible accumulation load

mG	vN
kg	m/min
80 80 60 40 40	6 9 12 15 18
