Attributes

Bending moment 1	50Nm
Dimension [p]	45mm
Dimensions	45x45
ESD	yes
Height	57mm
Length	173mm
Material	Diecast zinc
Material information	Supporting arm joint: Diecast zinc,Fastening material: Steel, galvanized,Cover cap: PA, black
Modular dimension	45mm
Packaging unit	1
Profile slot	10
Scope of delivery	Incl. cover caps, bolt connectors, fastening material (FS)
Weight	0.74kg
Width	105mm

• Suitable for swiveling end connections, e.g. for the construction of supporting arms
• Profile finishing: drilling of through-hole D17
• 1 - Suitable for swiveling end connections, e.g. for the construction of supporting arms
• 2 - Profile finishing: drilling of through-hole D17

Supporting arm joint 45x45 standard

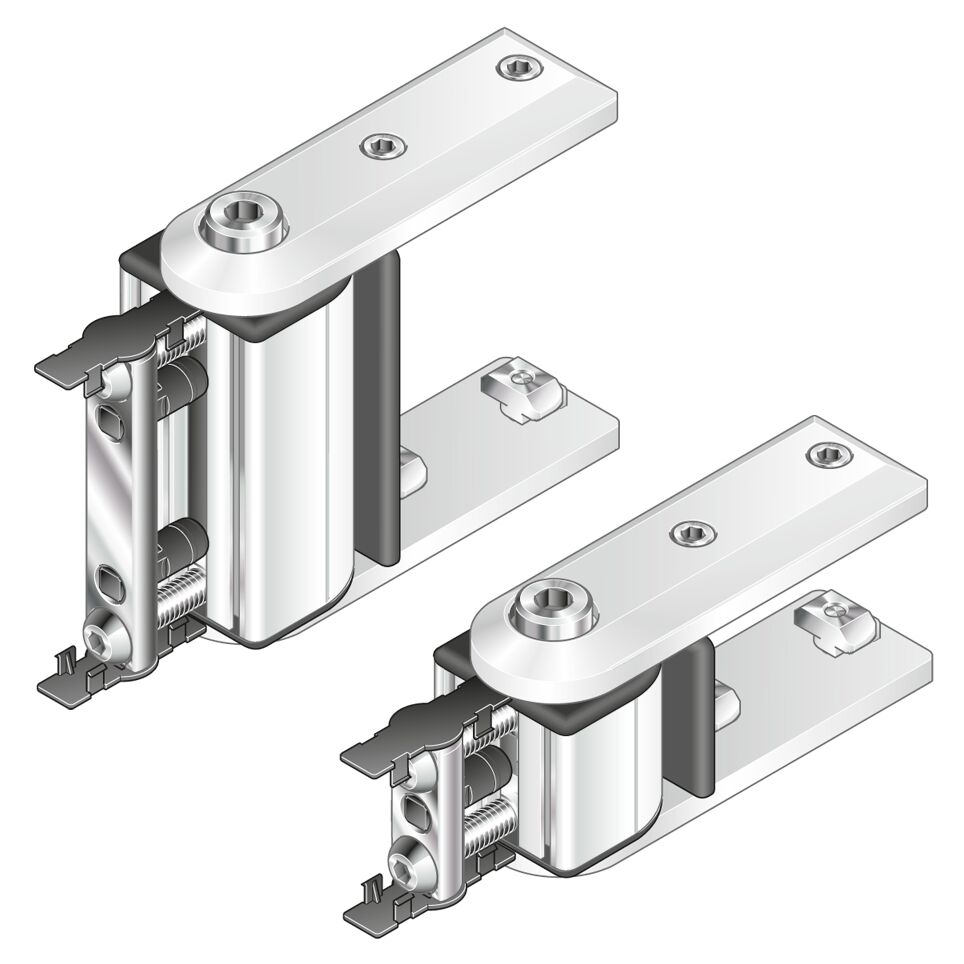

Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Profile finishing: drilling of through hole D17, Suitable for swiveling end connections, e.g. for the construction of supporting arms

• Data Sheet

FS1

Supporting arm joint 45x45 with fastening parts, 10 mm slot

Supporting arm joint 45x45, 45x90

Profil​
	MMax = F x L (Nm)
45x45	50
45x90	150
