Attributes

Voltage/frequency combination [U/f]	230 V/50 Hz
Productgroup ID	2
Service life	8000h
Mass [m]	2.2kg
Protection class	IP20 (IEC 529)
Weight	3.048kg
Scope of delivery	includes fluorescent tubes and insulating fastening material (10 mm slot)
Required accessories	Mains cable or connecting cable, if necessary
Material information	Housing: Aluminum, anodized
Conformity	VDE,ENEC

• Glare-free light of the highest quality (quality class A according to DIN 5035-T2)
• With low-loss lamp ballast and starter
• With one (SL 36) or three (SL 72) GST outlet sockets for looping through the electrical current
• Suitable for use at ESD workstations
• SL 72: Attached to a strut extension (workstations with B = 990 mm) or to a hanger (workstations with B ≠ 990 mm)
• SL 36: Fastening to the vertical strut of the strut extension
• Note: According to IEC 60364-4-41: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.
• Note: According to IEC 60364-4-41: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use. - Note: According to IEC 60364-4-41: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.

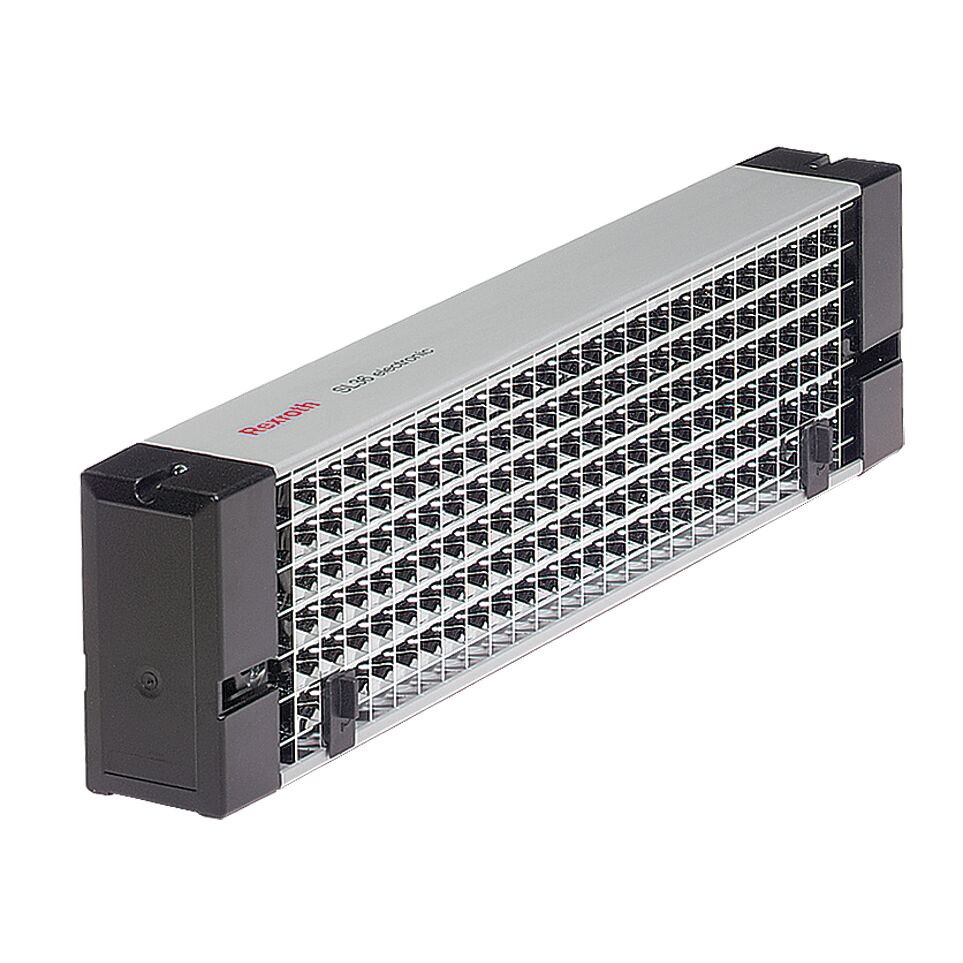

System lamps SL 36, EU
Suitable for use at ESD workstations, Glare free light of the highest quality (quality class A according to DIN 5035 T2), With low loss lamp ballast and starter, With one (SL 36) or three (SL 72) GST outlet sockets for looping through the electrical curre
