Attributes

Diameter D	125mm
Dimension [h]	158mm
Fastening material	1x square screw M12x30,1x hexagon nut DIN985 M12
Force F	1100N
Height	60mm
Length	165mm
Material	Reinforced PA
Packaging unit	1
Profile slot	10
Required accessories	Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm),Bearing ring if cover cap with hole is used
Weight	0.6kg
Width	135mm
height	158mm

• Resistant to oil, for use in workshop areas
• Versatile range of uses
• Wheels with excellent running properties
• Available as a caster wheel with lock, caster, and trestle wheel
• All wheels mounted in the profile slot or central hole (accessories required)
• Profile finishing: thread cutting M12 in the case of assembly in central hole
• LR with lock: lock prevents the wheel from rolling or turning
• 1 - Resistant to oil, for use in workshop areas
• 2 - Versatile range of uses
• 3 - Wheels with excellent running properties
• 4 - Available as a caster wheel with lock, caster, and trestle wheel
• 5 - All wheels mounted in the profile slot or central hole (accessories required)
• 6 - Profile finishing: thread cutting M12 in the case of assembly in central hole
• 7 - LR with lock: lock prevents the wheel from rolling or turning

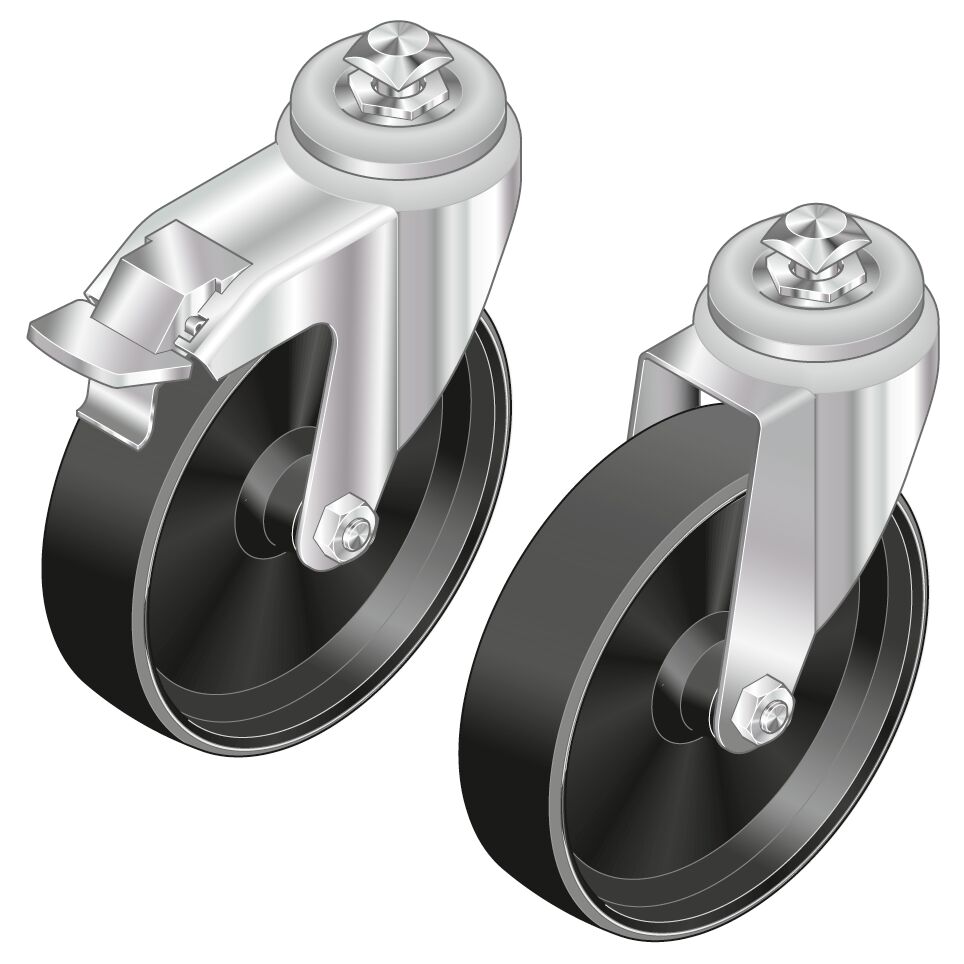

LR, reinforced PA, F1100
Available as a caster wheel with lock, caster, and trestle wheel, Resistant to oil, for use in workshop areas, Versatile range of uses, Wheels with excellent running properties, All wheels mounted in the profile slot or central hole (accessories required)

• 3D CAD
• Data Sheet

Bearing ring

Bearing ring

For cover caps with hole in the sizes 40x40, 45x45, 50x50 and 60x60 For M12 threads To protect the caps when tightening accessories

CAD data

FS1

D125 LR

D125 LR with lock

Wheel selection guide
