JOINT 60X45
| Dimensions | 60x60 |
| ESD | yes |
| Fastening material | 2x cylinder head screw DIN7984-M12x40,2x washer DIN125-A8.4,2x cylinder head screw DIN7984-M8x20,2x T-nut groove 10 M8 |
| Force F1 | 15000N |
| Force F2 | 1000N |
| Height | 35mm |
| Length | 150mm |
| Material | Diecast zinc |
| Material information | Joint: Diecast zinc,Fastening material: Steel, galvanized |
| Modular dimension | 60mm |
| Packaging unit | 1 |
| Profile slot | 10 |
| Recommended accessories | Clamping lever: 3842505144 |
| Scope of delivery | Incl. fastening material |
| Swivel range | 182° |
| Weight | 1.1kg |
| Width | 95mm |
- For movable or rigid profile connections at any angle
- Swivel range 182°
- With marking in 15° increments
- Locking by clamping (5 Nm) or fixing with pins (15 Nm)
- The joint can be adjusted using a clamping lever.
- Profile finishing: Thread (M12) in central hole for end-face connection
- 1 - For movable or rigid profile connections at any angle
- 2 - Swivel range 182°
- 3 - With marking in 15° increments
- 4 - Locking by clamping (5 Nm) or fixing with pins (15 Nm)
- 5 - The joint can be adjusted using a clamping lever.
- 6 - Profile finishing: Thread (M12) in central hole for end-face connection
Joint 60x45 standard

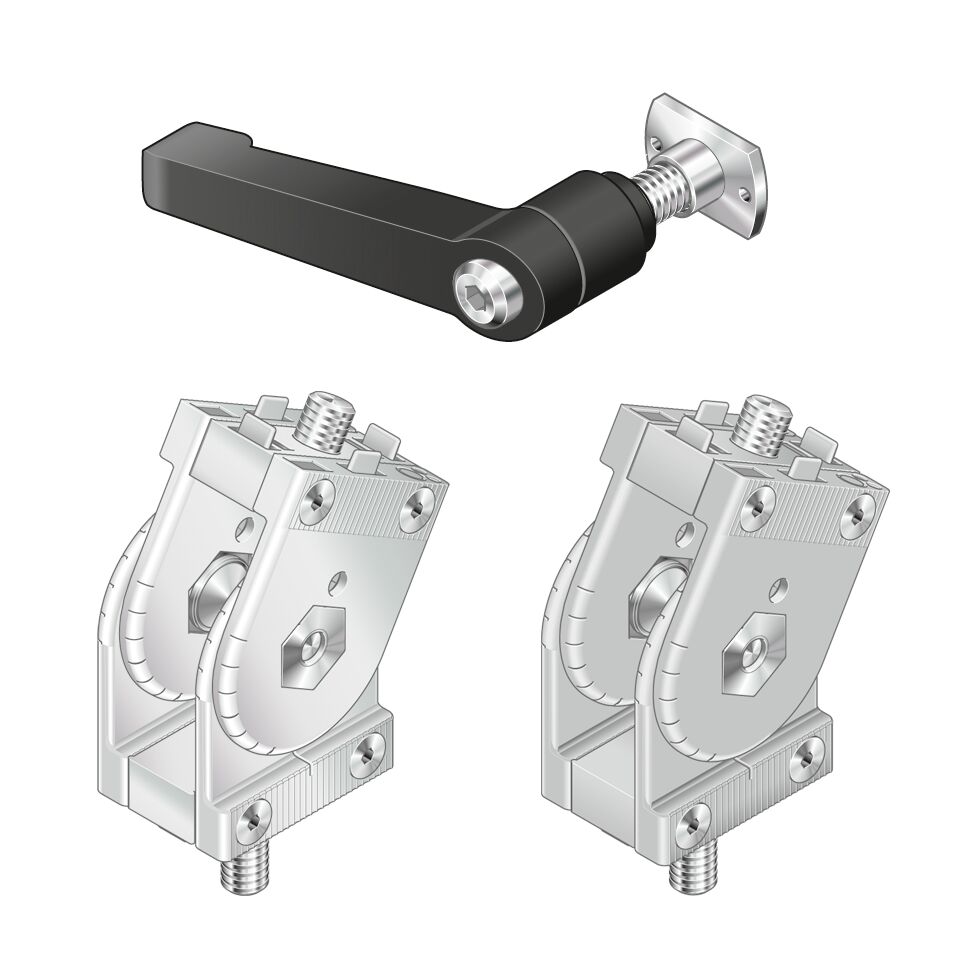

For movable or rigid profile connections at any angle, With marking in 15° increments, , Locking by clamping (5 Nm) or fixing with pins (15 Nm), Swivel range 182°, The joint can be adjusted using a clamping lever.,
For movable or rigid profile connections at any angle, With marking in 15° increments, , Locking by clamping (5 Nm) or fixing with pins (15 Nm), Swivel range 182°, The joint can be adjusted using a clamping lever.,
|
FS5 |
FS6 |
|
|
|
F1 (N) |
F2 (N) |
|
15000 |
1000 |
