Attributes

Dimensions	60x60
ESD	yes
Fastening material	2x cylinder head screw DIN7984-M8x20,2x washer DIN125-8.4,2x cylinder head screw DIN7984-M8x20,2x T-nut groove 10 M8
Force F1	20000N
Force F2	1100N
Gross weight	1.254kg
Height	35mm
Length	150mm
Material	Diecast zinc
Material information	Joint: Diecast zinc,Fastening material: Steel, galvanized
Modular dimension	60mm
Packaging unit	1
Profile slot	10
Recommended accessories	Clamping lever: 3842505144
Scope of delivery	Incl. fastening material
Swivel range	182°
Weight	1.26kg
Width	95mm

• For movable or rigid profile connections at any angle
• Swivel range 182°
• With marking in 15° increments
• Locking by clamping (5 Nm) or fixing with pins (15 Nm)
• The joint can be adjusted using a clamping lever.
• designLINE version with special silver paint (RAL 9006)
• Profile finishing: Thread (M12) in central hole for end-face connection
• 1 - For movable or rigid profile connections at any angle
• 2 - Swivel range 182°
• 3 - With marking in 15° increments
• 4 - Locking by clamping (5 Nm) or fixing with pins (15 Nm)
• 5 - The joint can be adjusted using a clamping lever.
• 6 - designLINE version with special silver paint (RAL 9006)
• 7 - Profile finishing: Thread (M12) in central hole for end-face connection

Joint 60x60 standard

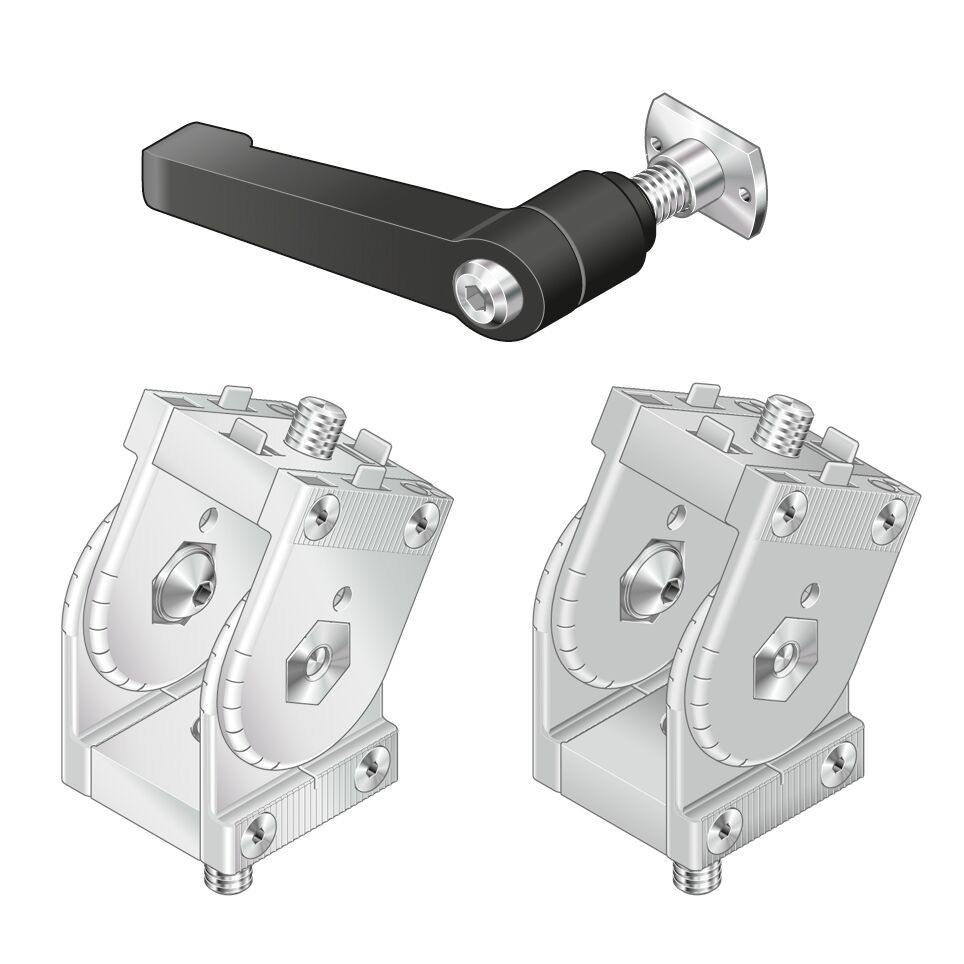

For movable or rigid profile connections at any angle, With marking in 15° increments, , Locking by clamping (5 Nm) or fixing with pins (15 Nm), Swivel range 182°, The joint can be adjusted using a clamping lever.,

• 3D CAD
• Data Sheet

FS5	FS6

Joint 60x60

	F1 (N)	F2 (N)
	20000	1100
